Canada Only

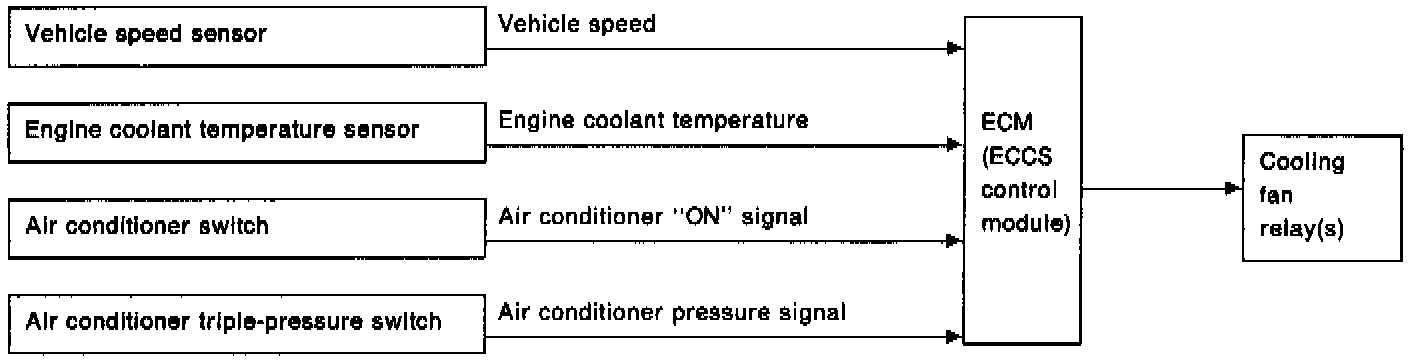

System Chart:

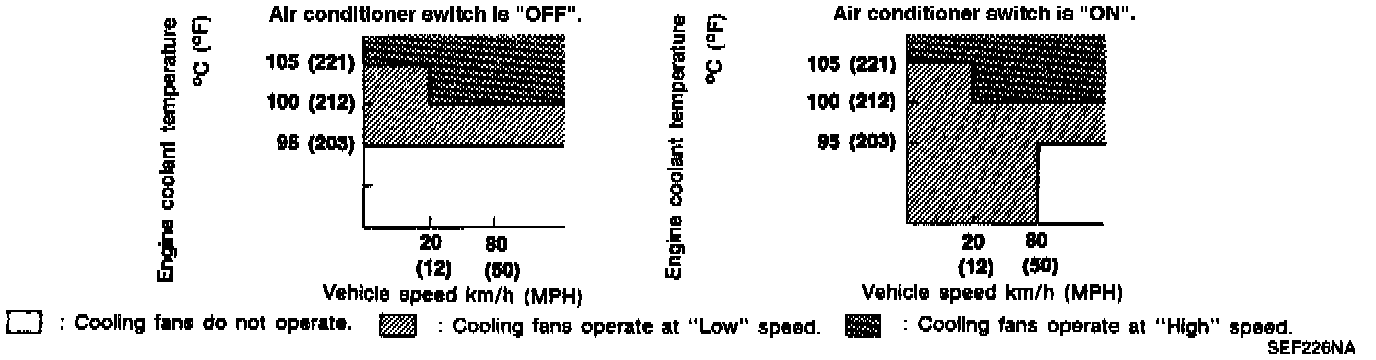

Fan Operation (For Canada):
OPERATION The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, air conditioner system pressure and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].
