Fuel Cut Control System

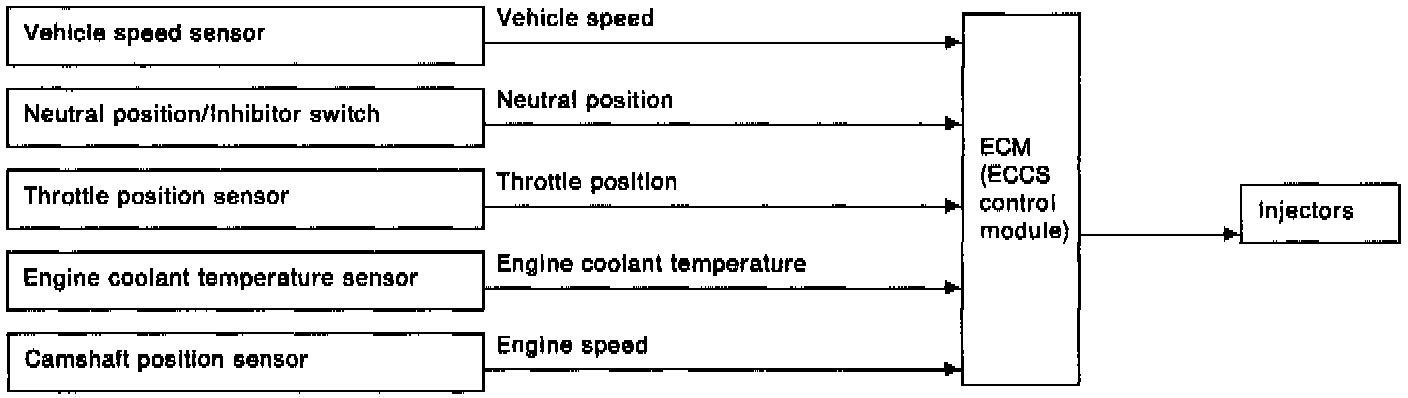

Fuel Cut Control System Chart:




OPERATION
Fuel to each cylinder is cut off when the engine speed goes over 3,950 rpm after the following condition. (The fuel cut is recovered when the engine speed drops below 1,150 rpm.)

Vehicle condition: The engine running at above idle speed is continued for the specified time under no load. (The specified time varies with the engine speed.)
