EGR Backpressure Transducer: Testing and Inspection

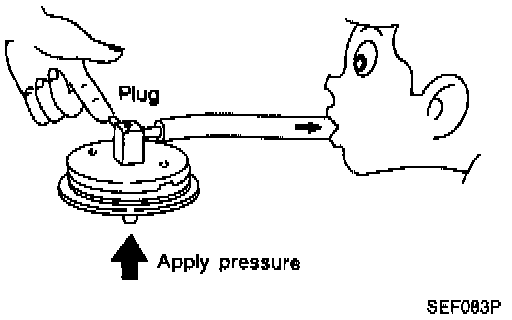

EGRC-BPT Test:
1.
Plug one of two ports of EGRC-BPT valve.
2.
Vacuum from the other port and check for leakage while applying a pressure above
0.981 kPa (3.94 inH2O) from under EGRC-BPT valve.
3.
If a leakage is noted, replace the valve.
