Throttle Position Sensor: Testing and Inspection

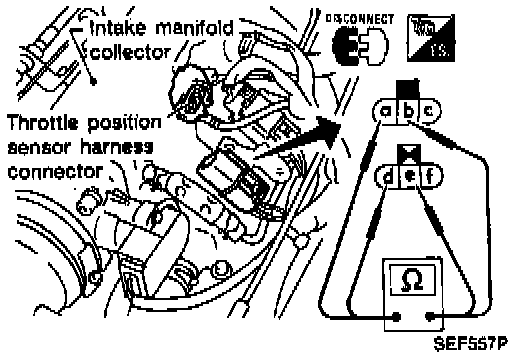

Throttle Position Sensor Test:

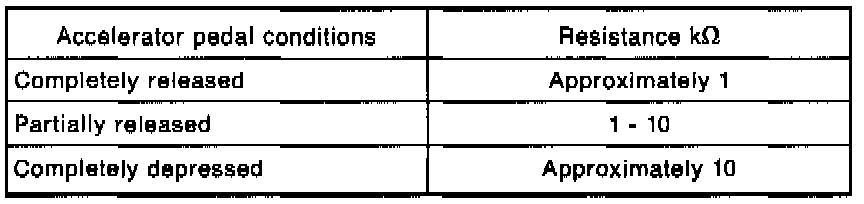

TPS Test Results Table:
1.
Disconnect
throttle position sensor harness connector.
2.
Make sure that resistance between terminals (a) and (b), (d) and (e) changes when opening throttle valve manually.
3.
If NG, replace
throttle position sensor.
