Transmission Position Sensor/Switch: Adjustments

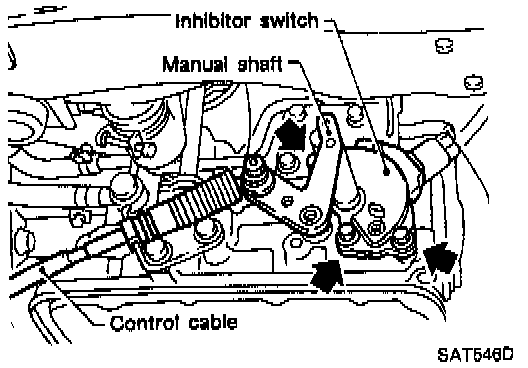

Inhibitor Switch Adjustment:




1. Remove control cable end from manual shaft.
2. Set manual shaft in "N" position.
3. Loosen inhibitor switch fixing bolts.

Inhibitor Switch Adjustment:

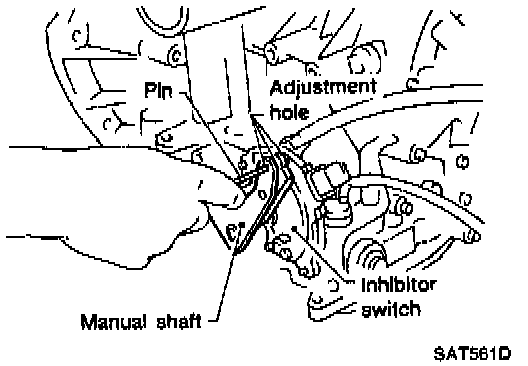

4. Insert 4.0 mm (0.157 in) dia. pin into adjustment holes in inhibitor switch and manual shaft. Insert the pin so that adjustment holes are correctly aligned with each other.
5. Tighten inhibitor switch fixing bolts.
6. Remove pin from adjustment holes after adjusting inhibitor switch.
7. Reinstall any part removed.
8. Adjust control cable.
9. Check continuity of inhibitor switch
