Vehicle Speed Sensor: Testing and Inspection

Vehicle Speed Sensor Signal Check:




1. Remove the vehicle speed sensor from transaxle.

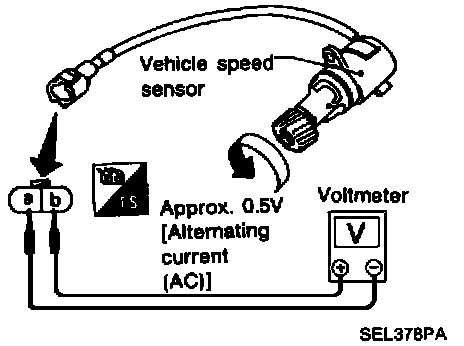

2. Turn vehicle speed sensor pinion quickly and measure voltage across (a) and (b).
