Distributor: Description and Operation
Camshaft Position Sensor:
PURPOSE Distributes secondary spark to the correct cylinder. Houses the Camshaft Position Sensor.
OPERATION The
distributor is operated by the camshaft. Mounted to the top of the distributor shaft is the rotor. Mounted to the top of the distributor housing is the

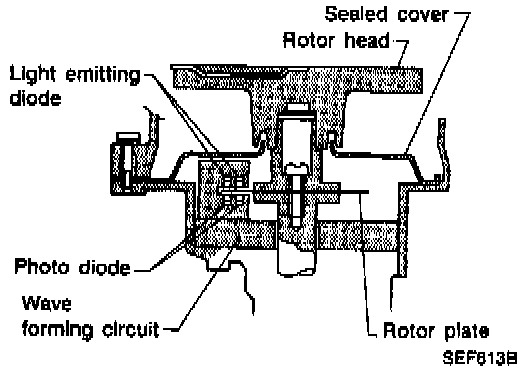

distributor cap. This distributor is equipped with an optical Camshaft Position Sensor.
