Vehicle Speed Sensor Motor

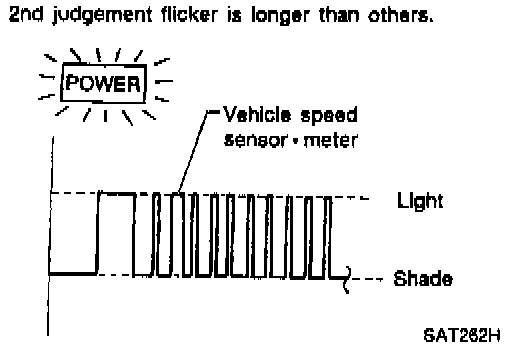

PIL Display-VSS Motor:
DTC DETECTING CONDITION (VSS-Motor) 1.
Start engine.
2.
Drive vehicle under the following conditions:
Shift lever in D and vehicle speed higher than 20 km/h (12 MPH).
3.
Perform self-diagnosis.

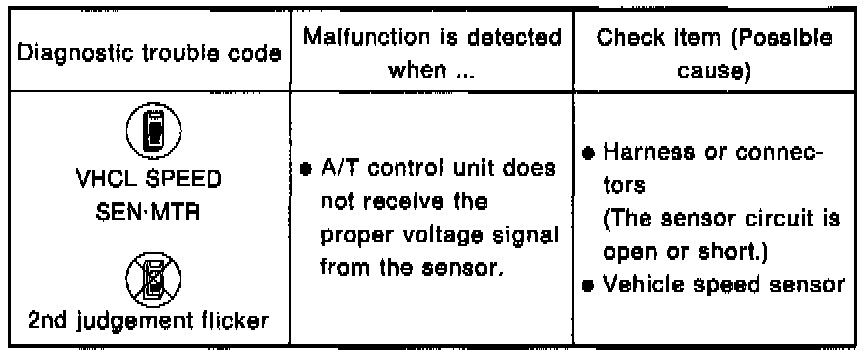

VSS-Motor Trouble Judgement Conditions:
TROUBLE JUDGEMENT CONDITIONS
