Brake Switch (Cruise Control): Testing and Inspection

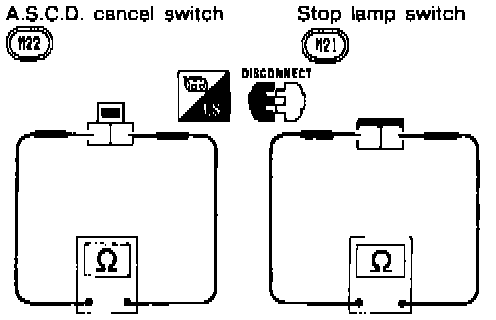

Fig. 59 ASCD cancel & stop lamp switch terminal connections:
1.
Connect ohmmeter to terminals as shown in
Fig. .
2.
With brake pedal depressed, no continuity should exist at ASCD cancel switch. Release pedal, continuity should then exist.
