With CONSULT

OVERALL FUNCTION CHECK
Use this procedure to check the overall function of the engine coolant temperature sensor circuit. During this check, a DTC might not be confirmed.

NOTE: If both DTC P0115 (0103) and P0125 (0908) are displayed, first perform TROUBLE DIAGNOSIS FOR DTC P0115.

1) Turn ignition switch "ON".

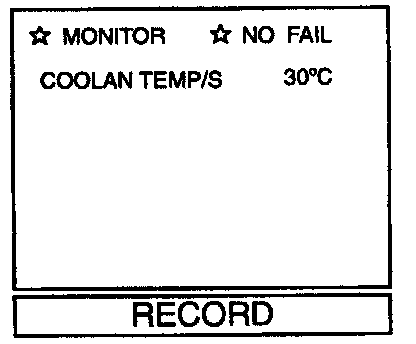

2) Select "COOLANT TEMP/S" in "DATA MONITOR" mode with CONSULT.
3) Start engine and run it at idle speed.
4) Check that the engine coolant temperature rises to 25°C (77°F) or more within 10 minutes. (Be careful not to overheat engine.)
