With CONSULT

OVERALL FUNCTION CHECK
Use this procedure to check the overall function of the throttle position sensor. During this check, a DTC might not be confirmed.

1) Turn ignition switch "ON".
2) Select "MANU TRIG" and "HI SPEED" in "DATA MONITOR" mode with CONSULT.




3) Select "THROTTLE POS SEN" and "ABSOL TH/PO SEN" in "DATA MONITOR" mode with CONSULT.

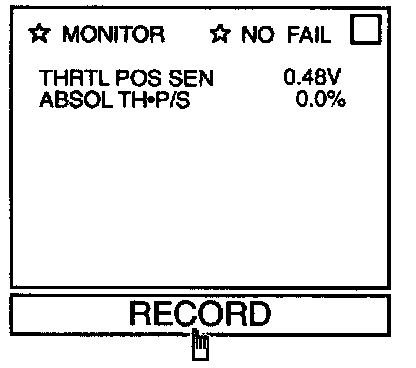

4) Press RECORD on CONSULT SCREEN at the same time accelerator pedal is depressed.




5) Print out the recorded data and check the followings:
- The voltage when accelerator pedal fully released is approximately 0.35 - 0.65V.
- The voltage rise is linear in response to accelerator pedal depression.
- The voltage when accelerator pedal fully depressed is approximately 4V.
