Transmission Position Sensor/Switch: Testing and Inspection

CIRCUIT INSPECTION

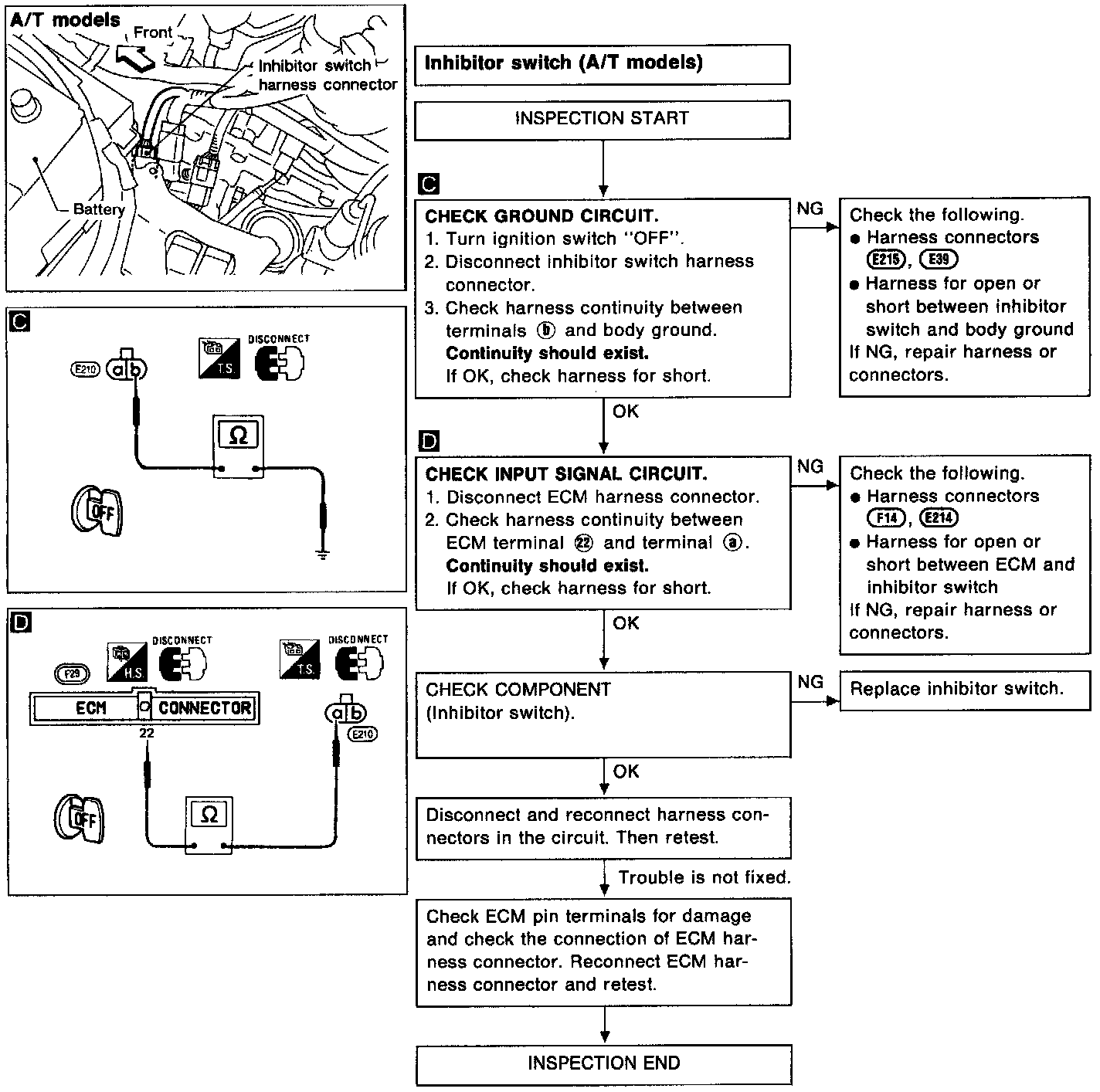

Diagnostic Chart:

SWITCH INSPECTION

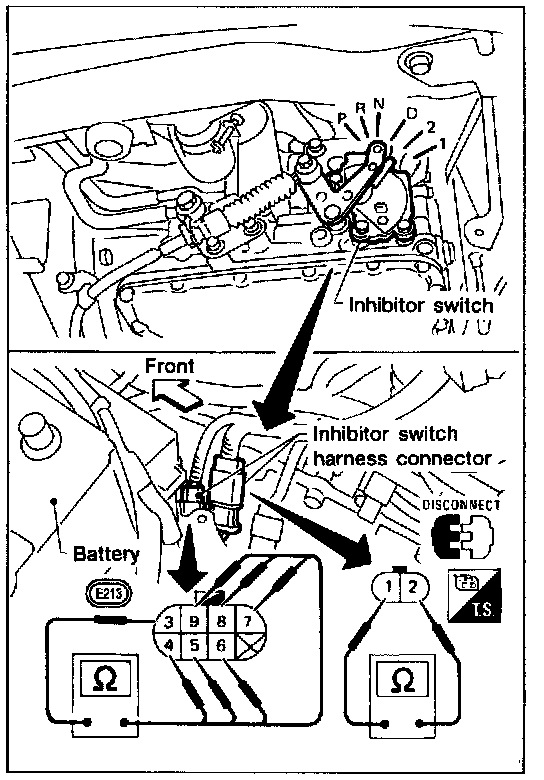

Test Connections:

Terminal Continuity Chart:

1. Check continuity between terminals (1) and (2) and between terminals (3) and (4), (5), (6), (7), (8), (9) while moving selector lever through each position.

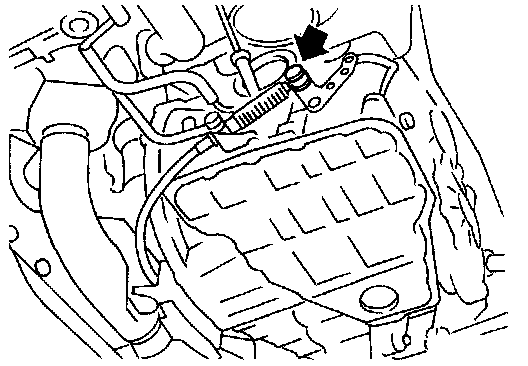

View: Control Cable:

2. If NG, check again with control cable disconnected from manual shaft of A/T assembly. Refer to step 1.
3. if OK on step 2, adjust control cable.

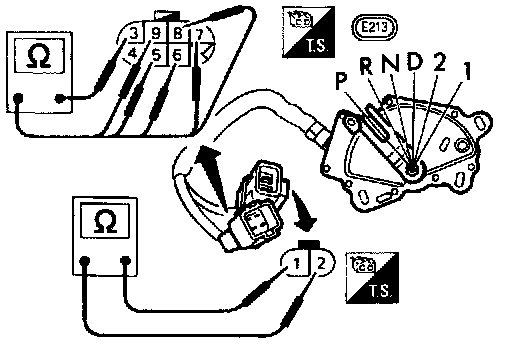

Test Connections:

4. If NG on step 2, remove inhibitor switch from A/T and check continuity of inhibitor switch terminals. Refer to step 1.
5. If OK on step 4, adjust inhibitor switch.
6. If NG on step 4, replace inhibitor switch.
