With CONSULT




OVERALL FUNCTION CHECK
Use this procedure to check the overall function of the vehicle speed sensor circuit. During this check, a DTC might not be confirmed.
1) Lift up the vehicle.
2) Start engine.

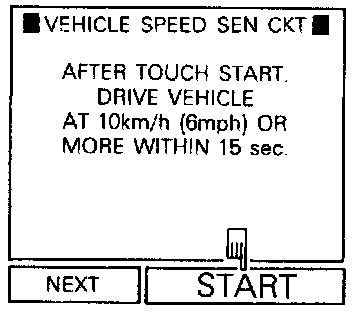

3) Perform "VEHICLE SPEED SEN CKT" in "FUNCTION TEST" mode with CONSULT.

OR

2) Start engine.

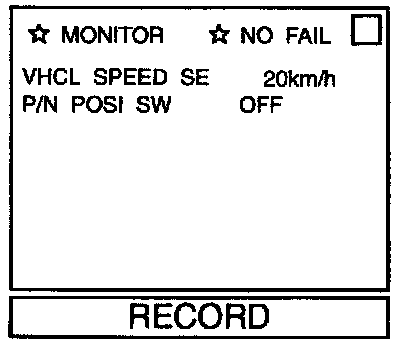

3) Read vehicle speed sensor signal in "DATA MONITOR" mode with CONSULT.
The vehicle speed on CONSULT should be able to exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
