System Chart

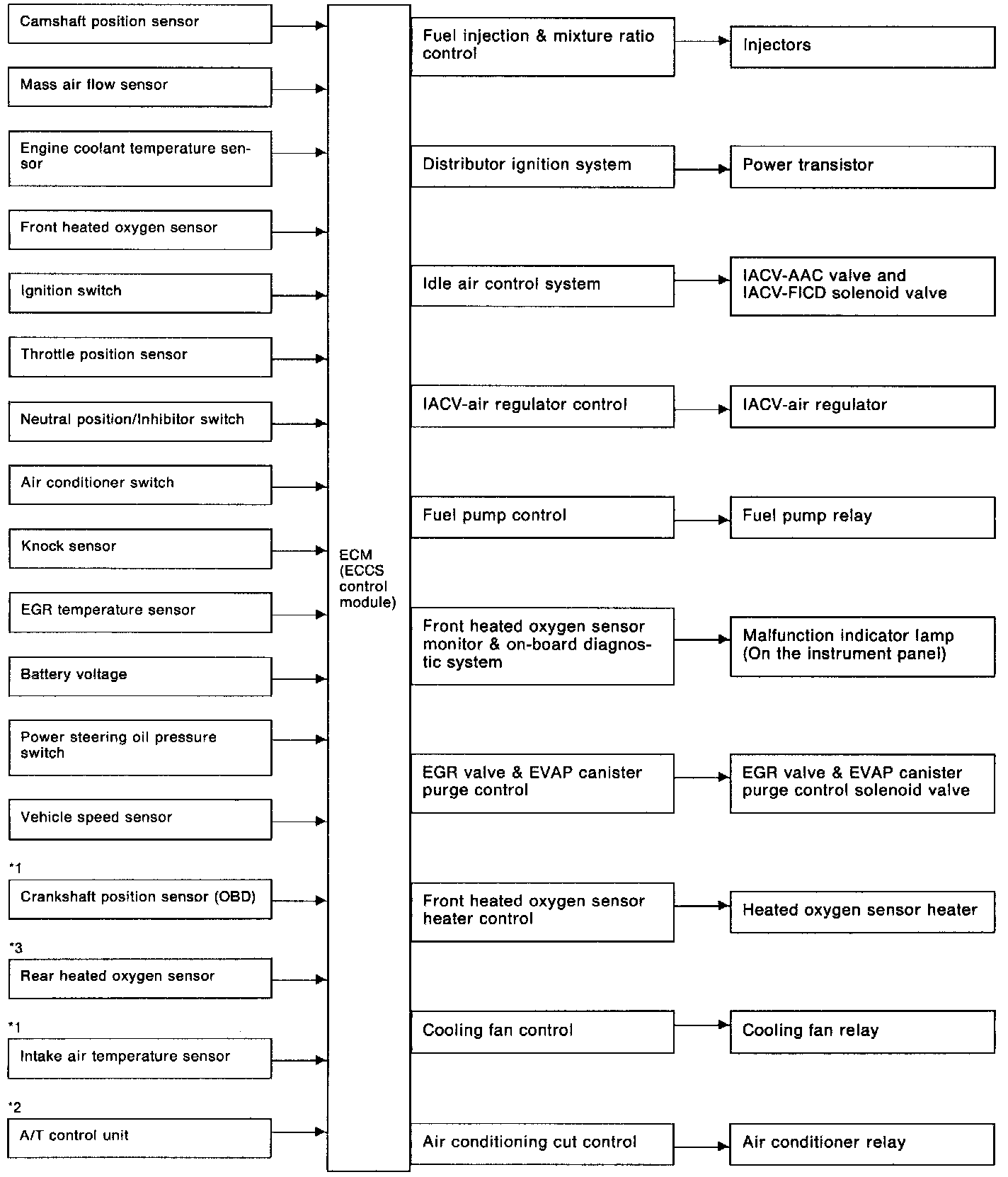

SYSTEM CHART *1:
These sensors are not directly used to control the engine system. They are used only for the on-board diagnosis.
*2:
The DTC related to A/T will be sent to
Engine Control Module (ECM).
*3:
Under normal conditions. this sensor is not for engine control operation.
