Component Inspection
CAMSHAFT POSITION SENSOR 1.
Start engine.
2.

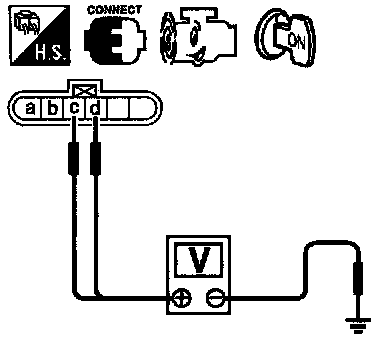

Check voltage between camshaft position sensor terminals (c), (d) and ground with AC range.
*:

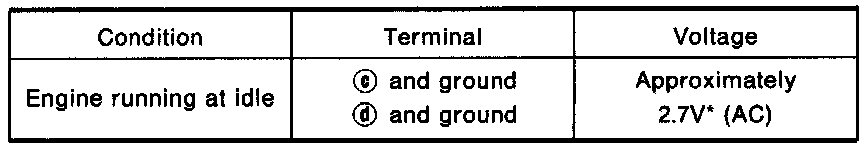

Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope,)
If NG, replace distributor assembly with camshaft position sensor.
3.

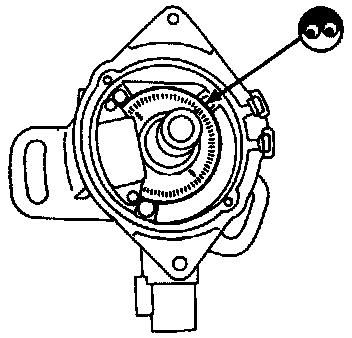

Visually check signal plate for damage or dust.
