Generic Scan Tool

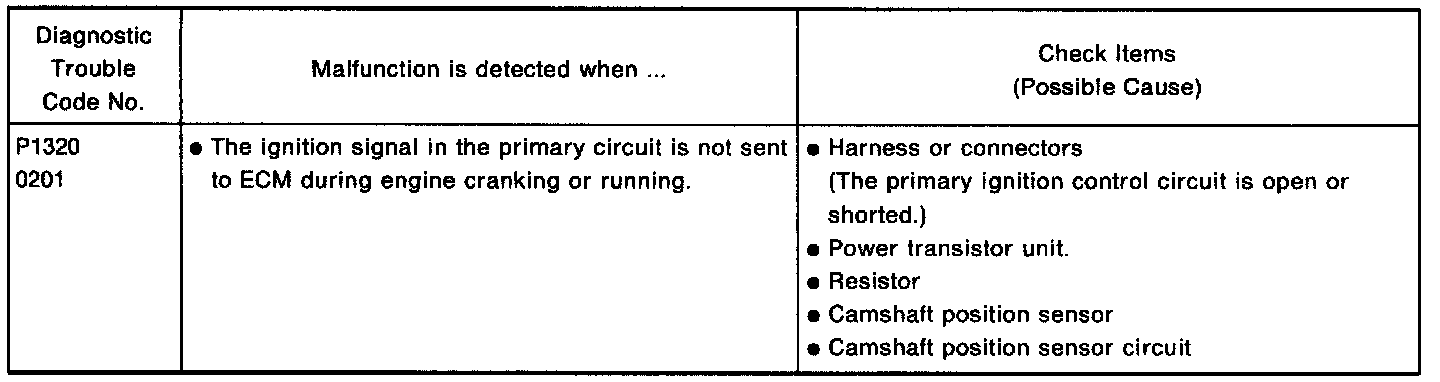

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE NOTE: If both DTC P0340 (0101) and P1320 (0201) are displayed, perform TROUBLE DIAGNOSIS FOR DTC P0340 first.
1)
Turn ignition switch "ON".
2)
Start engine.
(If engine does not run, hold ignition switch at "START" for at least 5 seconds. Then go to next step.)
3)
Select MODE 3 with Generic Scan Tool
(GST).
