With CONSULT
OVERALL FUNCTION CHECK Use this procedure to check the overall function of the park/neutral position switch circuit. During this check, a DTC might not be confirmed.
1)
Turn
ignition switch "ON".
2)

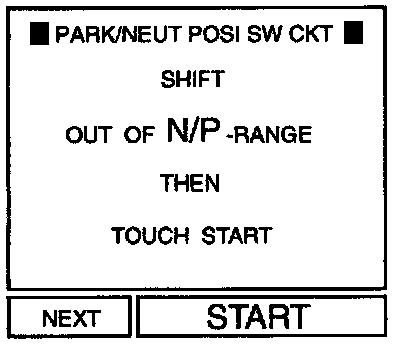

Perform "PARK/NEUT POSI SW CKT" in "FUNCTION TEST" mode with CONSULT.
OR 2)

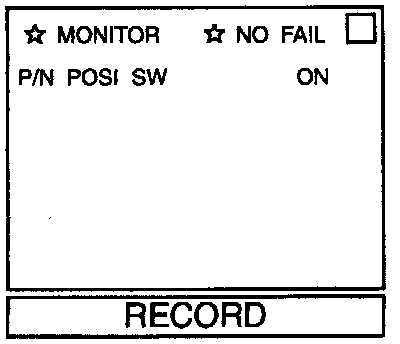

Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT.
3)

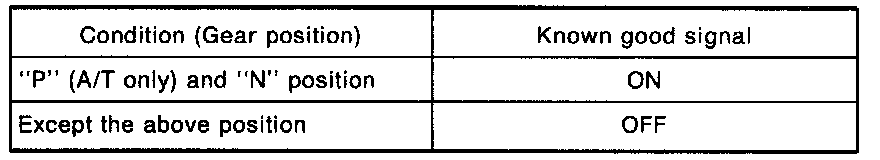

Check the "P/N POSI SW" signal under the following conditions.
