Removal

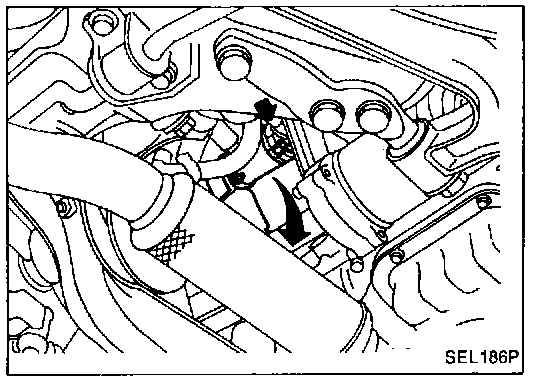

Removal And Installation:
1.
Remove battery negative cable from battery.
2.
Remove intake air duct.
3.
Remove
starter motor mounting bolts.
4.
Remove
battery cable from
starter motor.
5.
Disconnect harness connector from
starter motor harness.
6.
Remove
starter motor from under vehicle.
