Engine Control Module

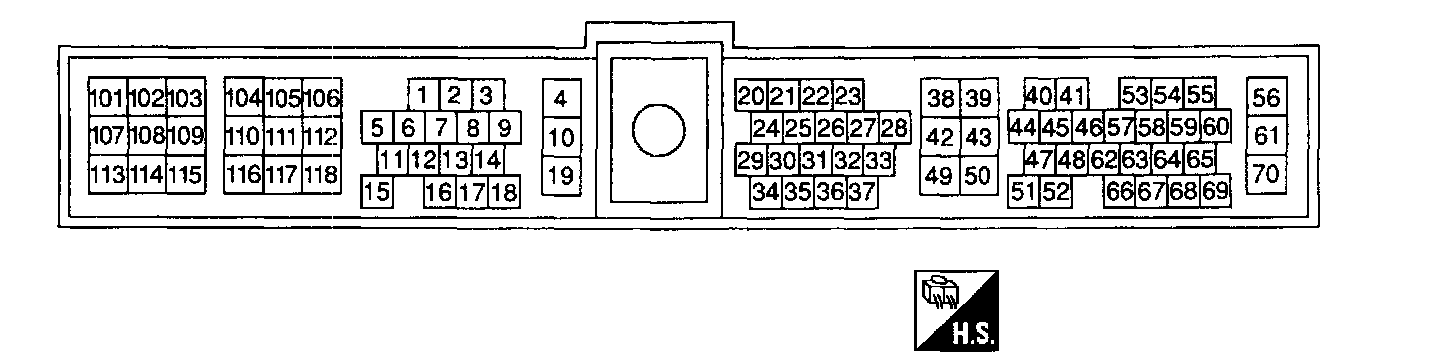

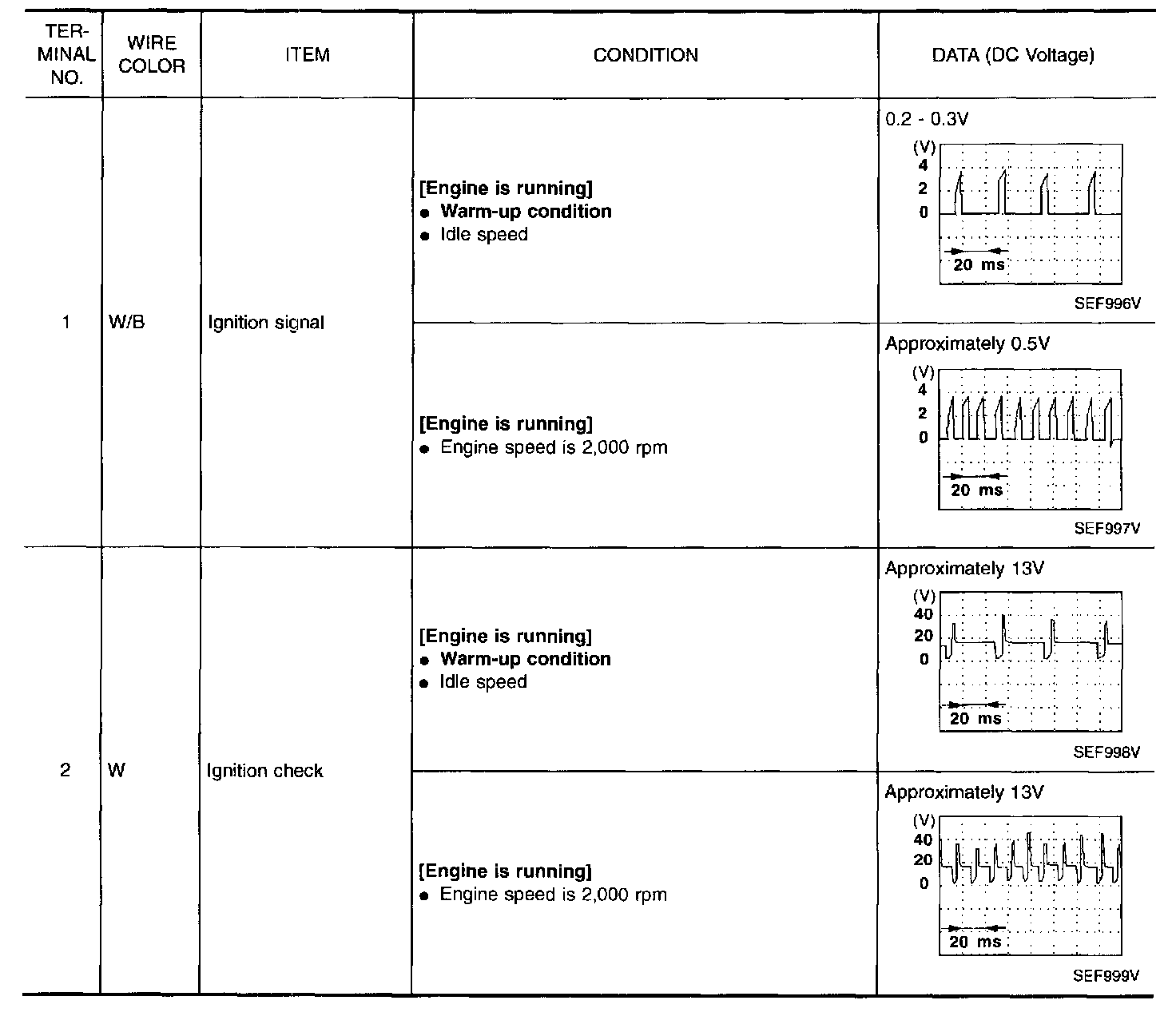

ECM HARNESS CONNECTOR TERMINAL LAYOUTTerminals 1 Thru 2:

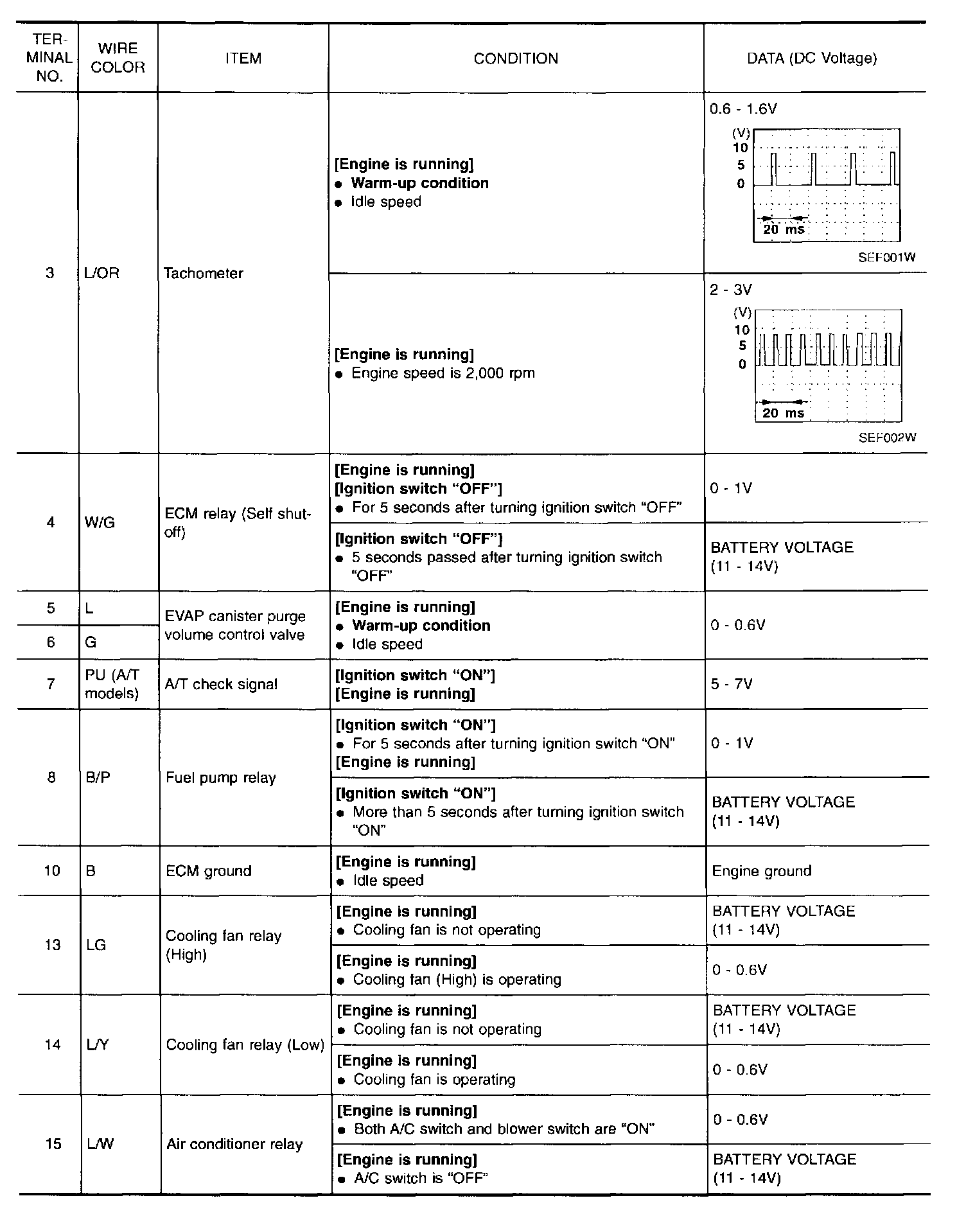

Terminals 3 Thru 15:
Terminals 16 Thru 28:

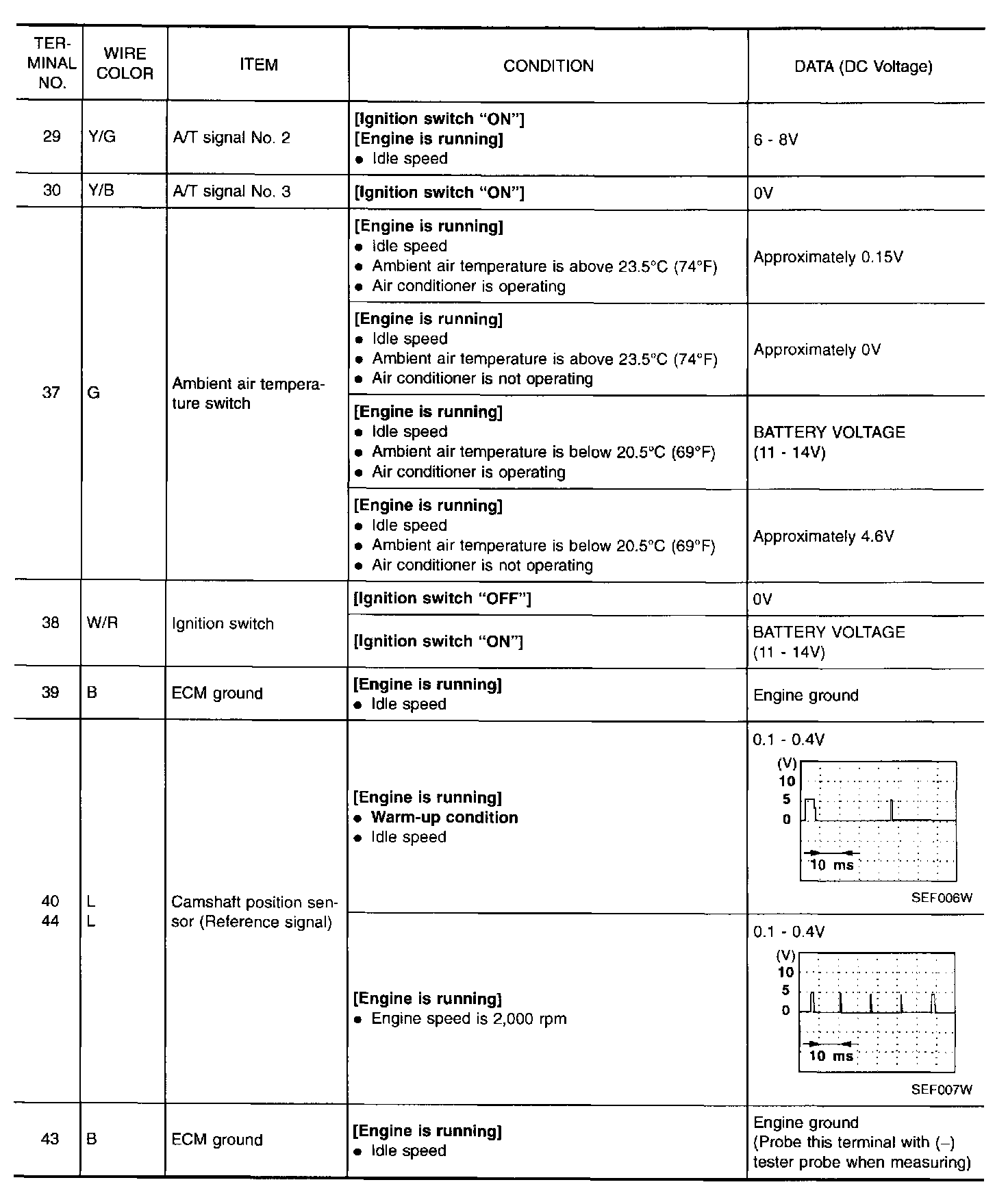

Terminals 29 Thru 43:

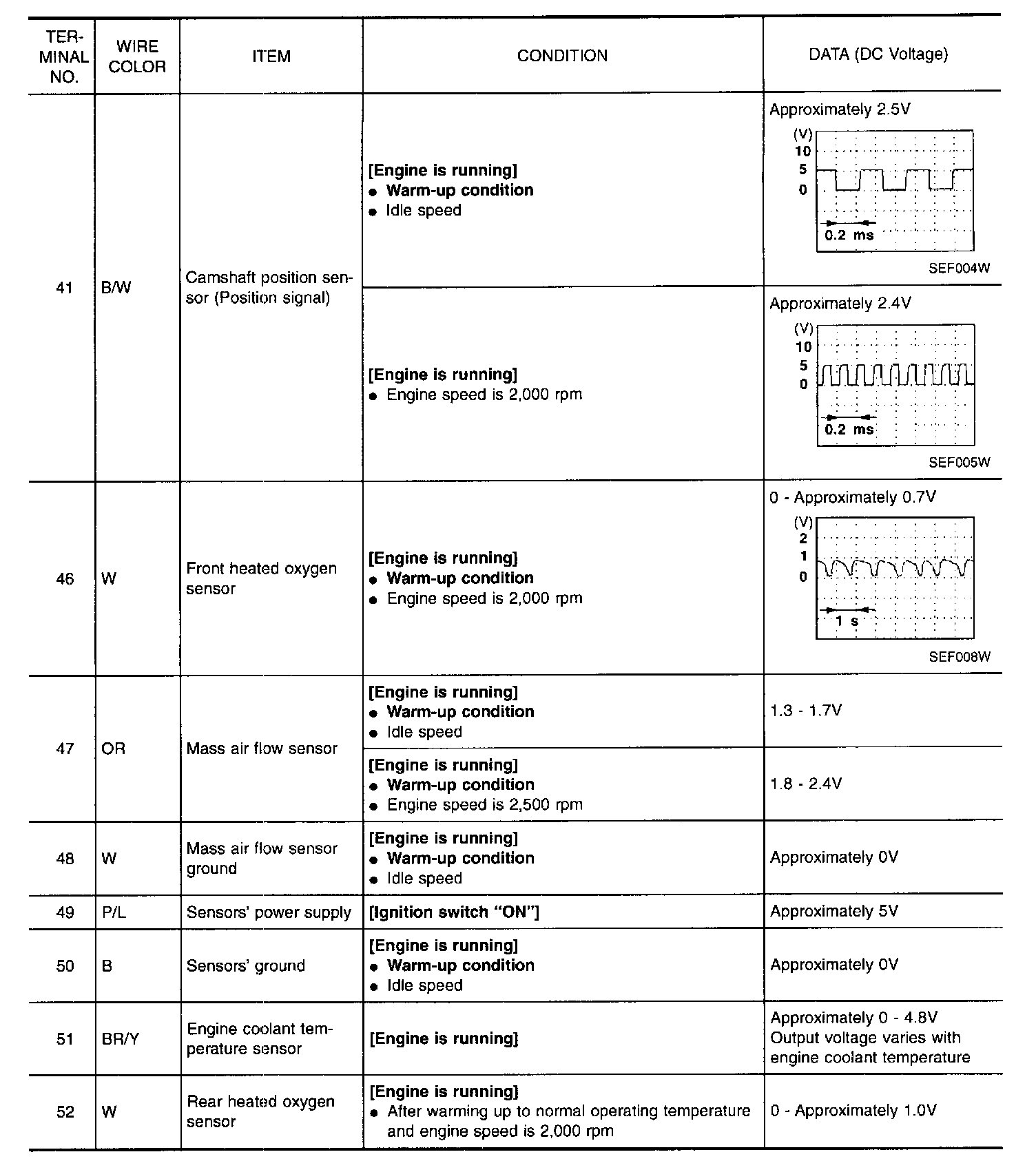

Terminals 41 Thru 52:

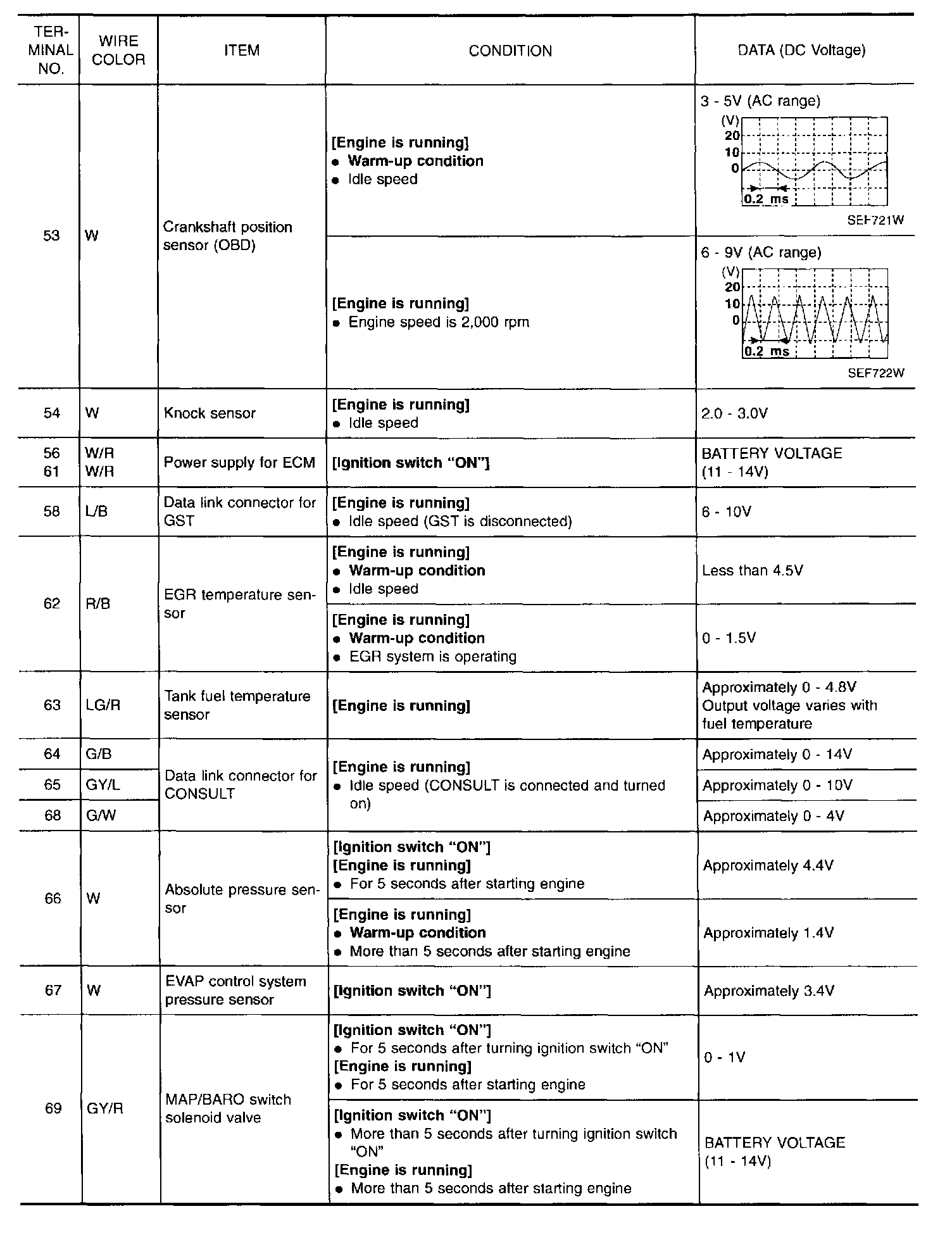

Terminals 53 Thru 69:

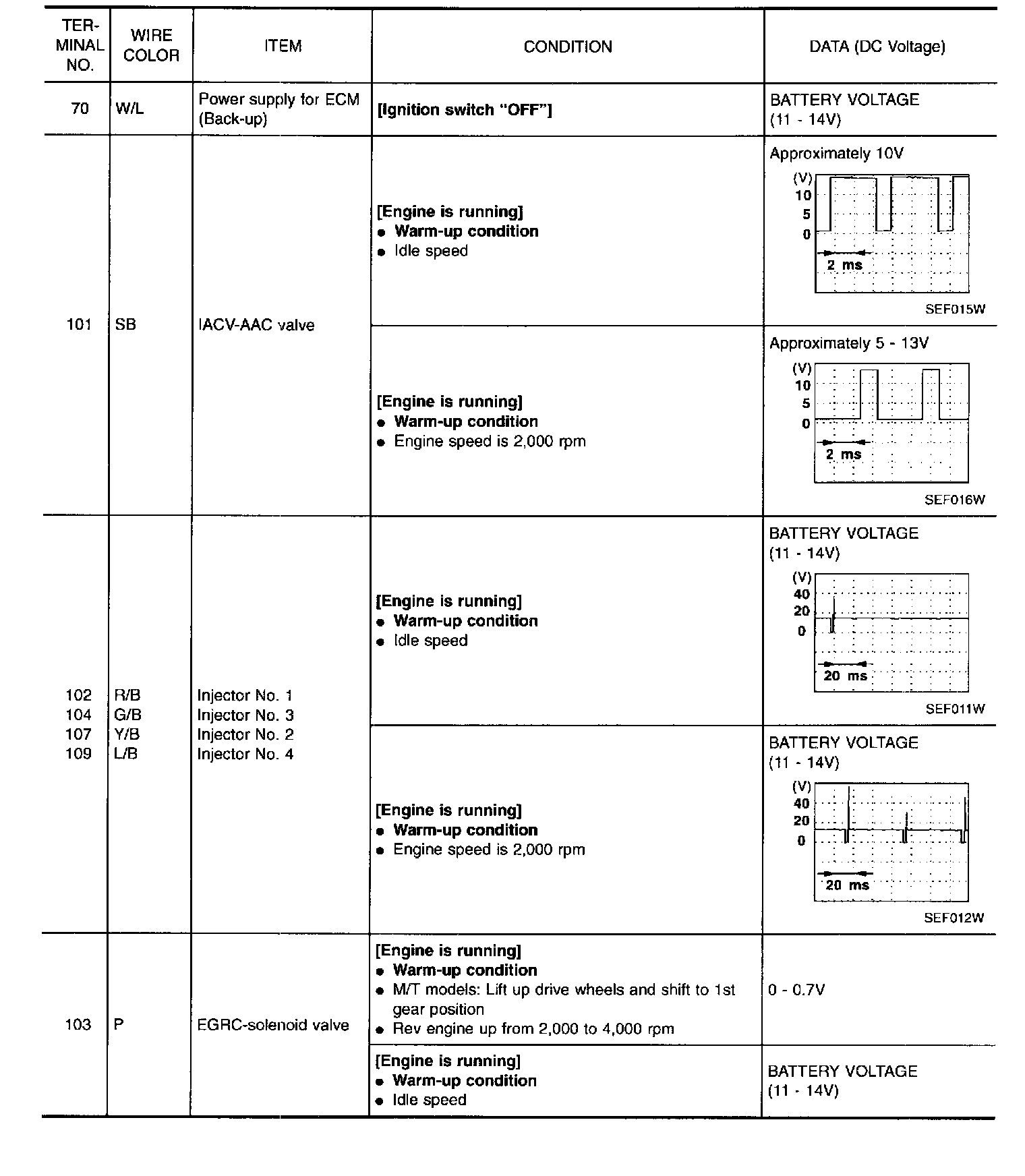

Terminals 70 Thru 103:

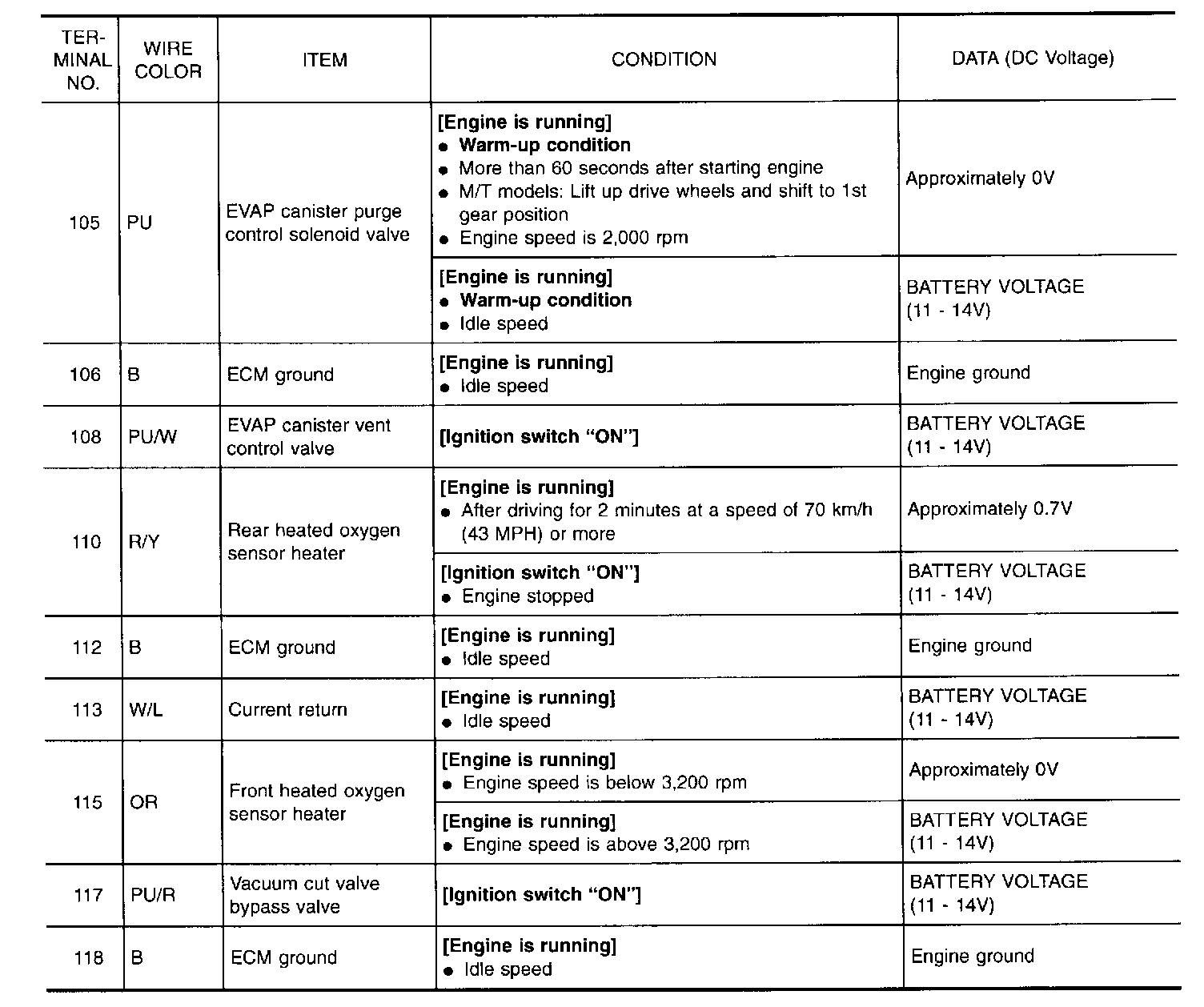

Terminals 108 Thru 118:
ECM INSPECTION TABLE Specification data are reference values and are measured between each terminal and 43 (ECM ground).
