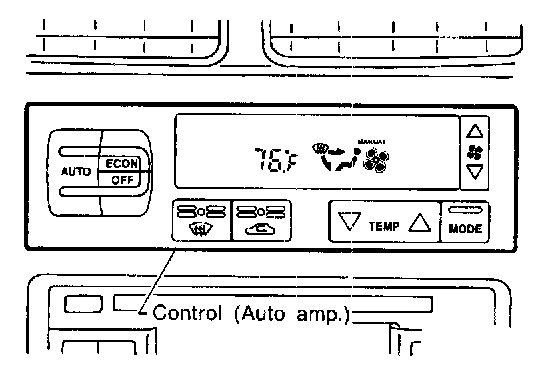

Auto Amp. Check
INSPECTION OF AUTO AMP. -
Measure voltage between each terminal and body ground by following "
AUTO AMP. INSPECTION TABLE".
-

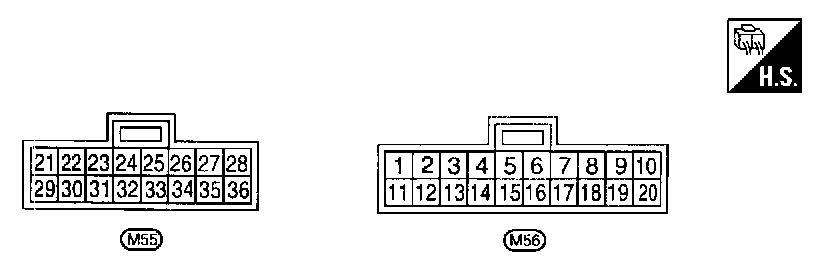

Pin connector terminal layout

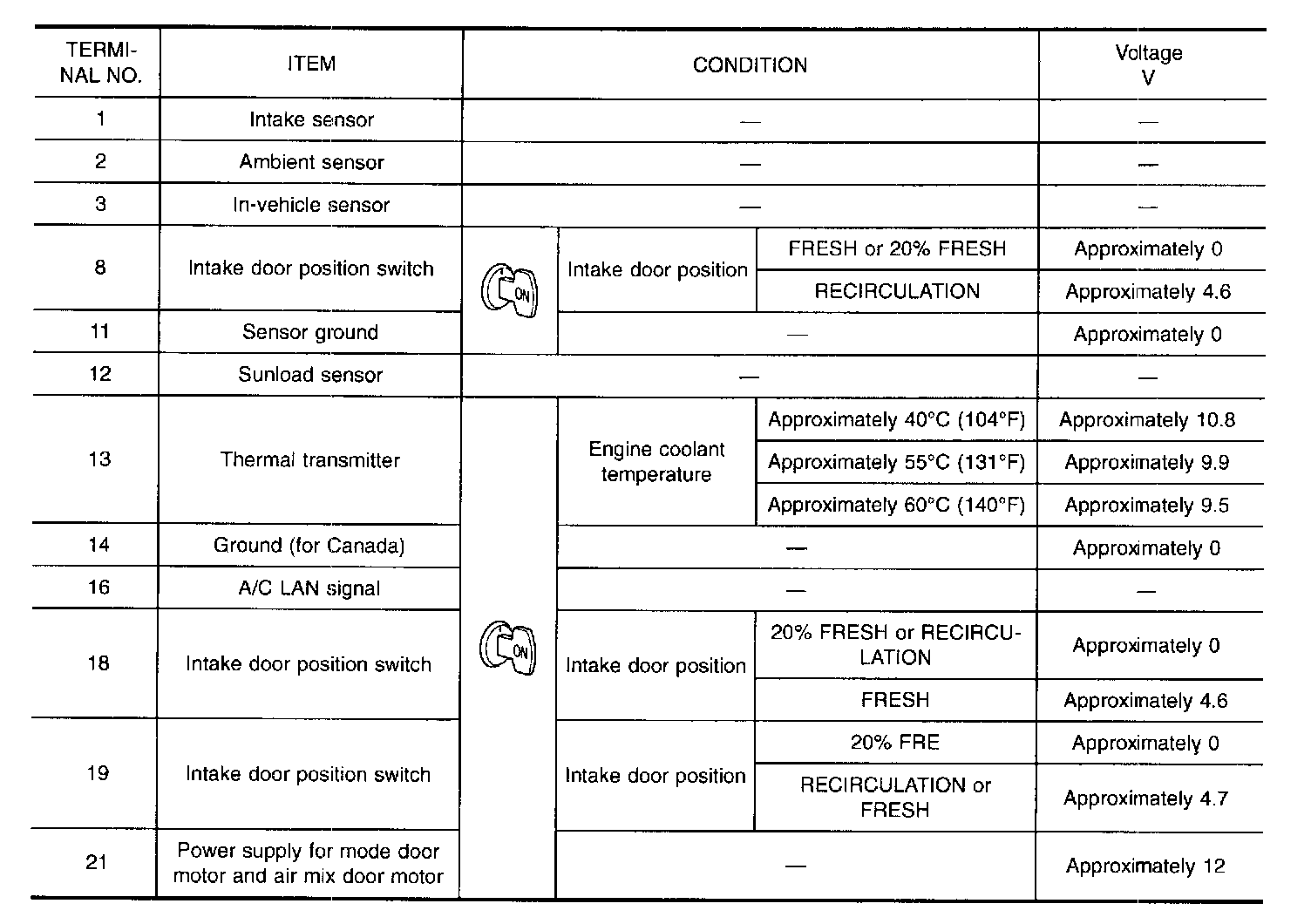

AUTO AMP. INSPECTION TABLE
