Powertrain Management: Application and ID

Air Cleaner thru Engine Speed

Erasable programmable read only memory thru Manifold Absolute Pressure

Manifold Absolute Pressure Sensor thru Smoke Puff Limiter System

Supercharger thru Wide open throttle position switch

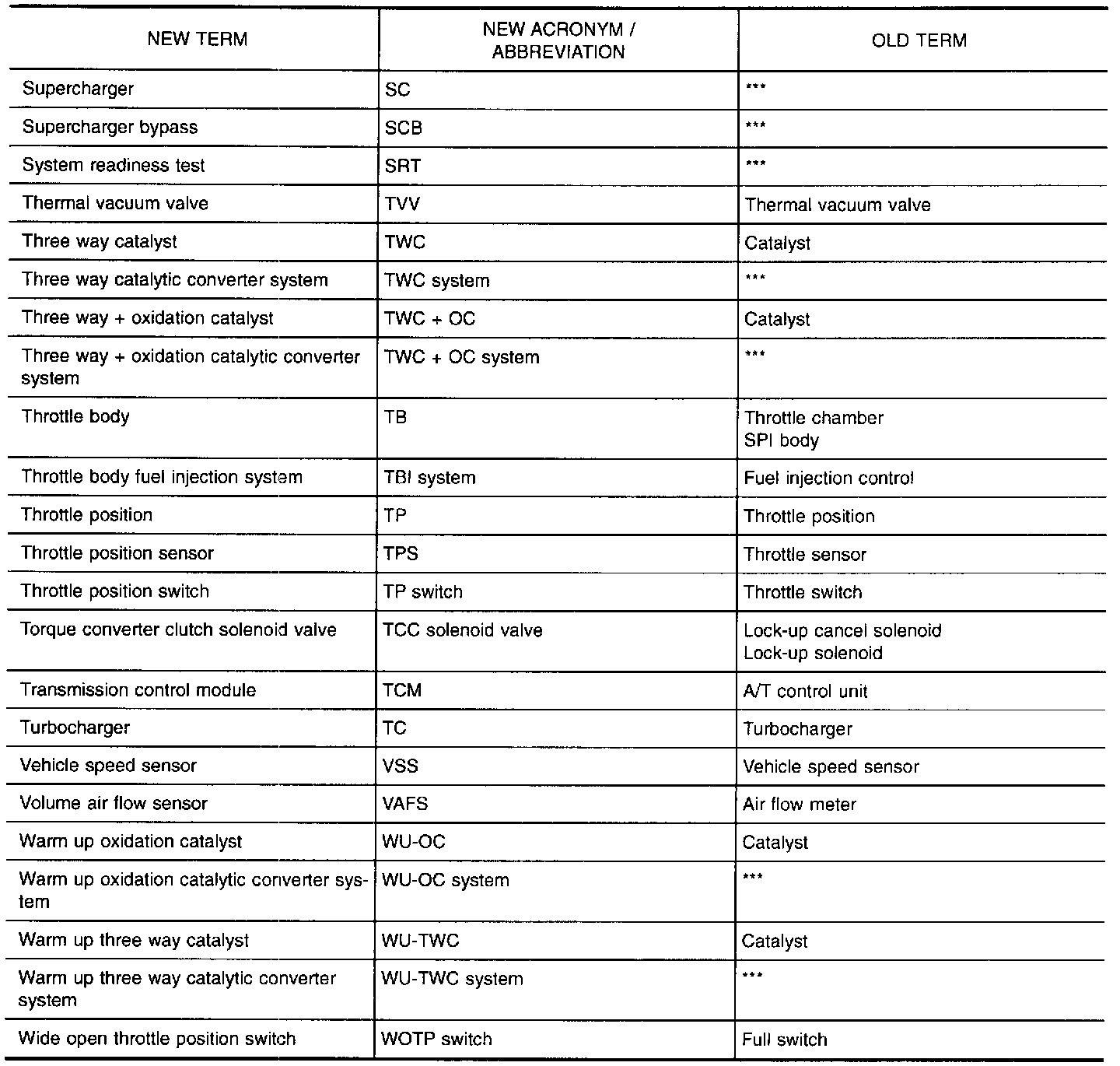

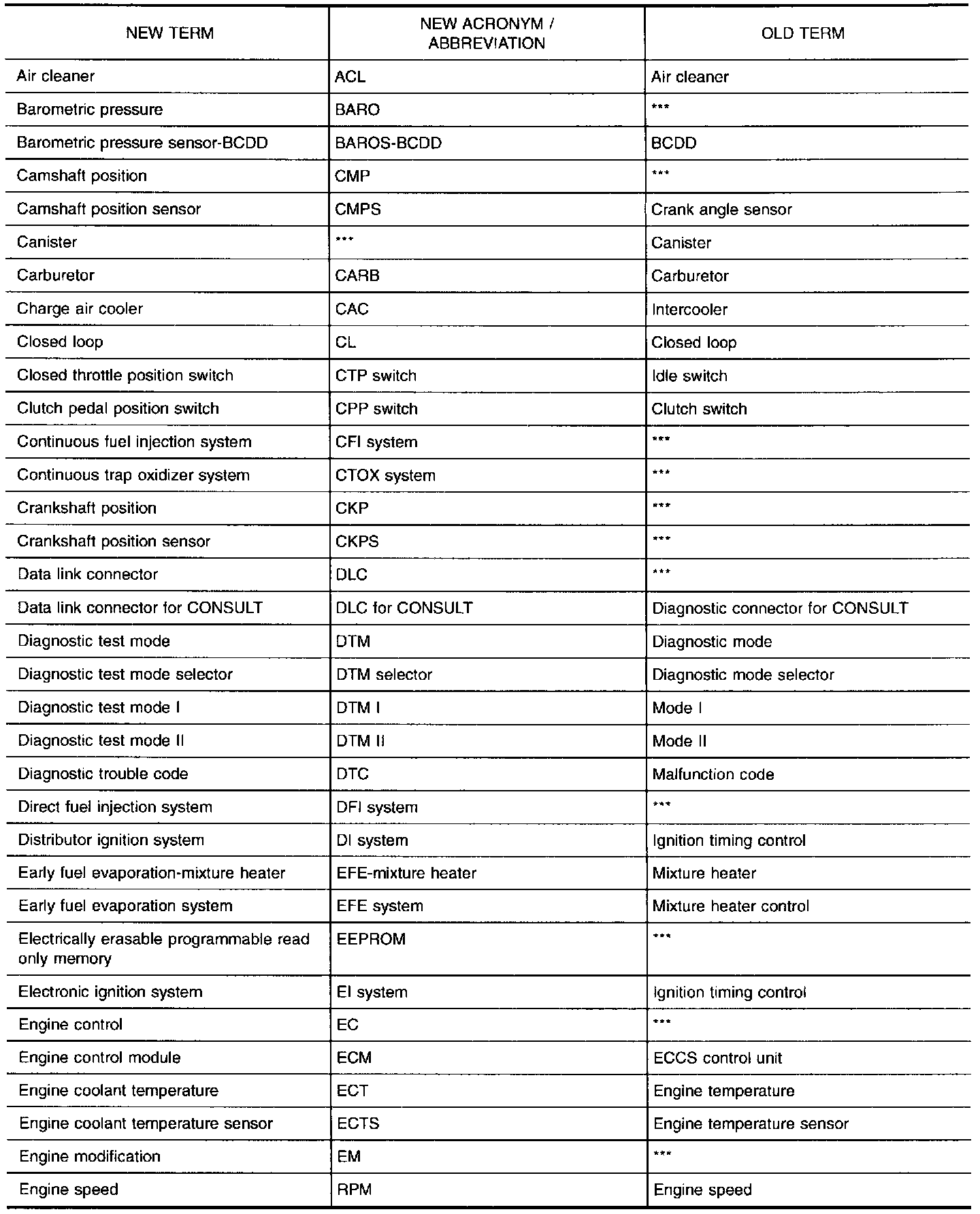

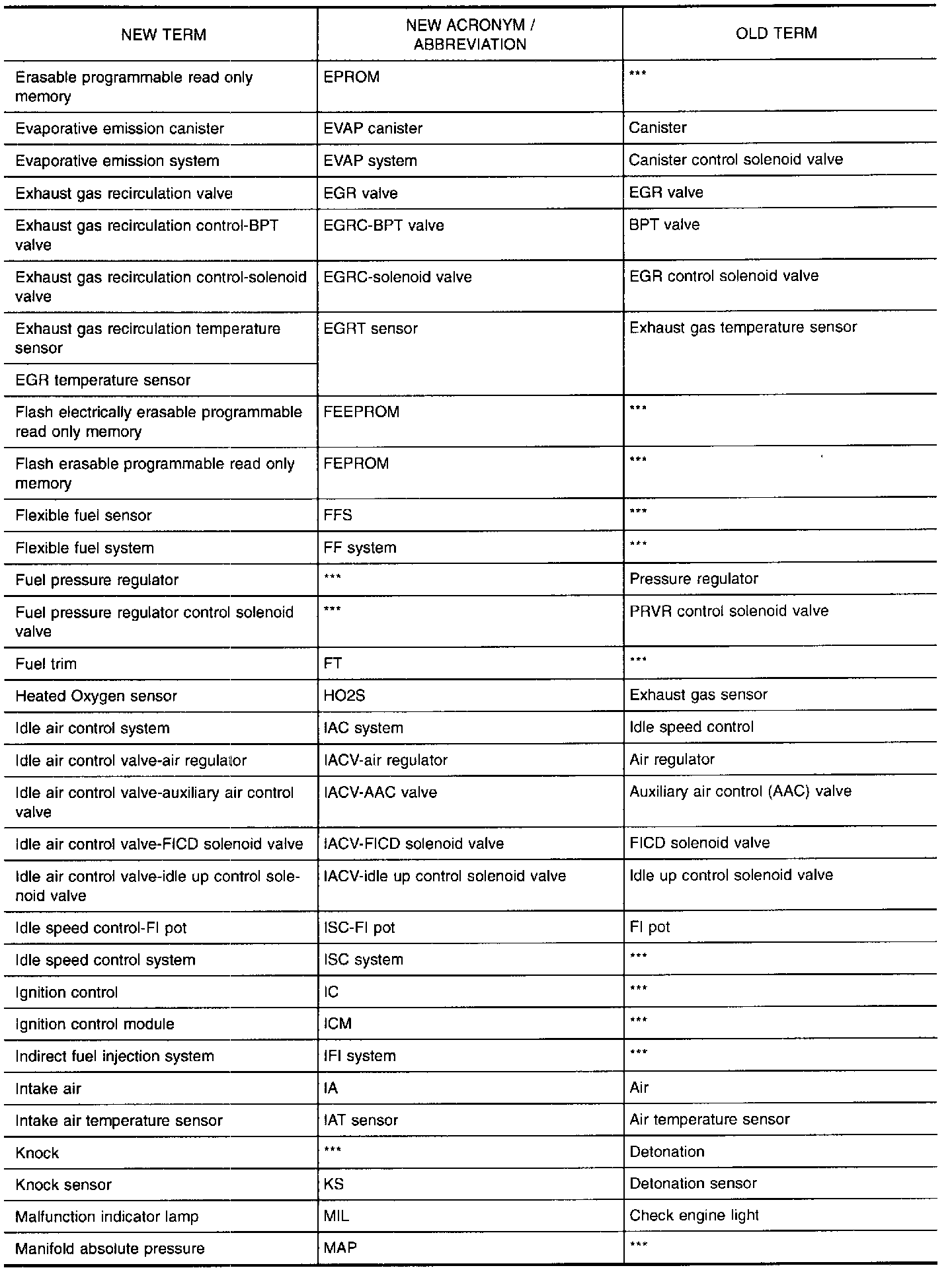

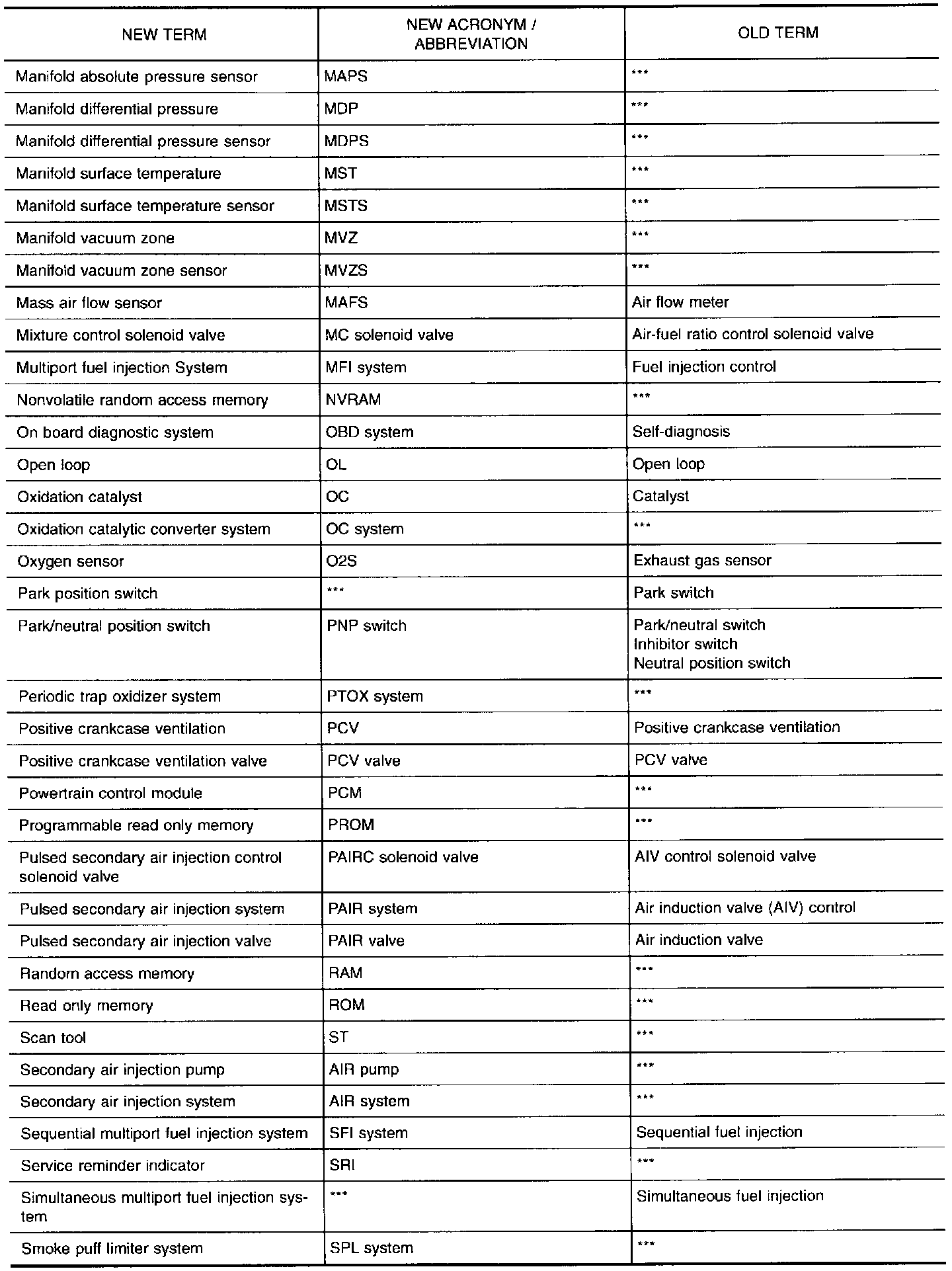

All emission related terms used in this publication in accordance with SAE J1930 are listed. Accordingly, new terms, new acronyms/abbreviations and old terms are listed in the following chart.
