Initial Inspection (Basic Inspection)
1 INSPECTION START:
2 CONNECT CONSULT TO THE VEHICLE:

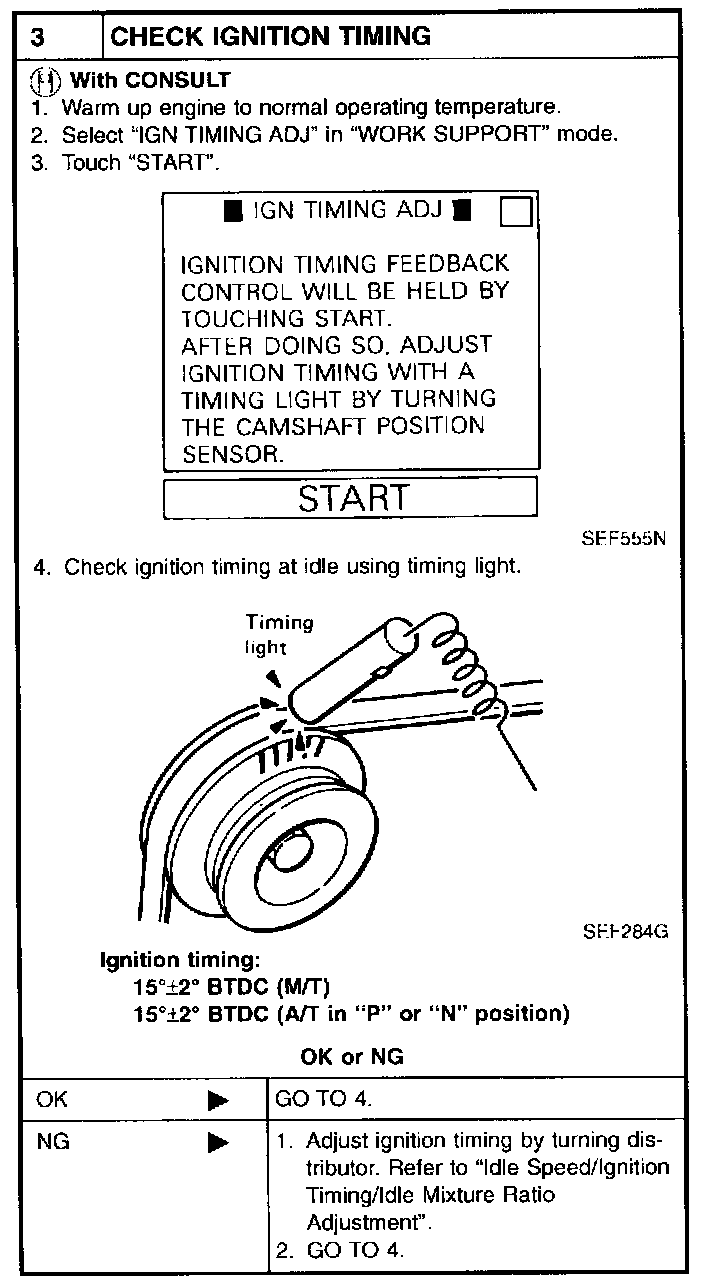

3 CHECK IGNITION TIMING:
4 CHECK BASE IDLE SPEED:

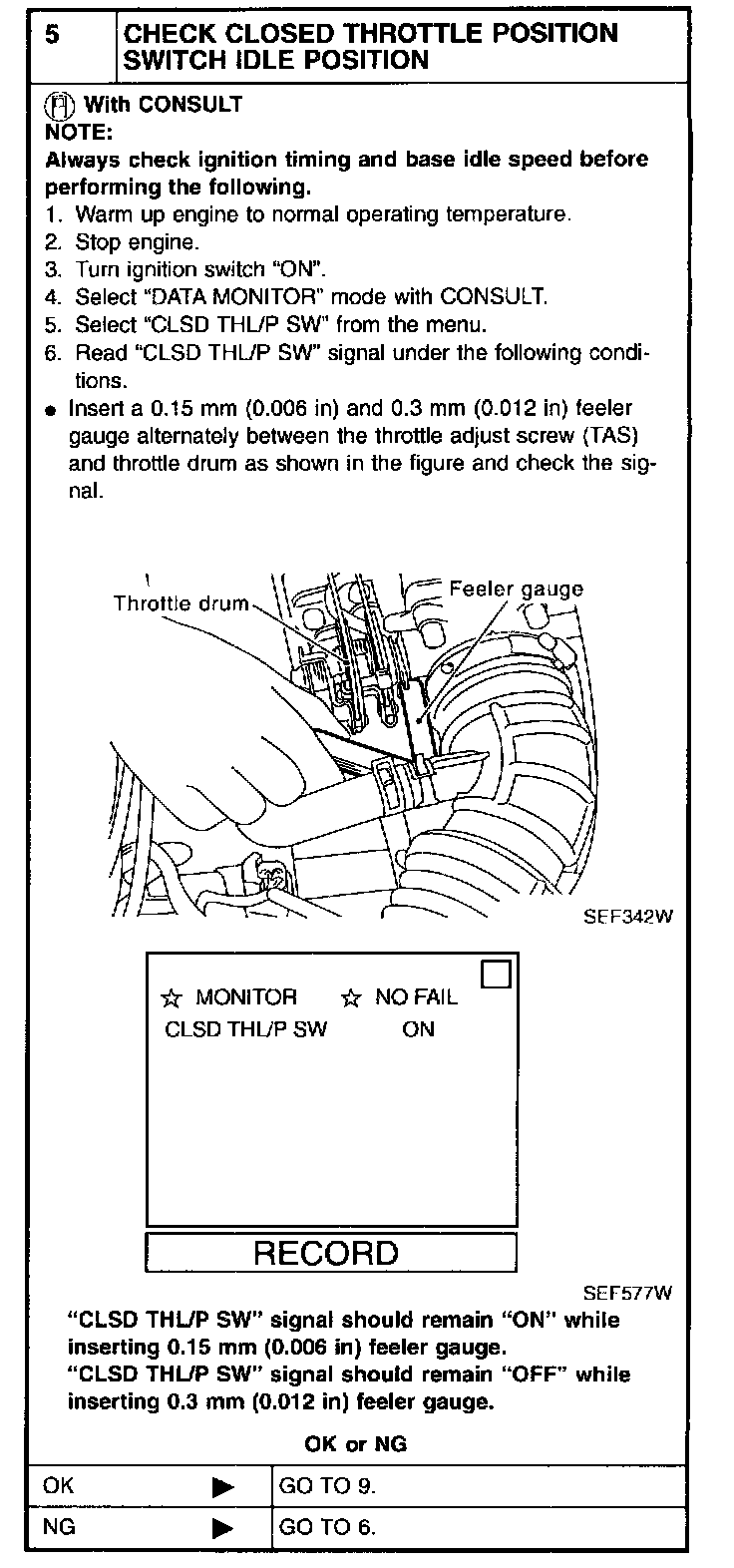

5 CHECK CLOSED THROTTLE POSITION SWITCH IDLE POSITION:

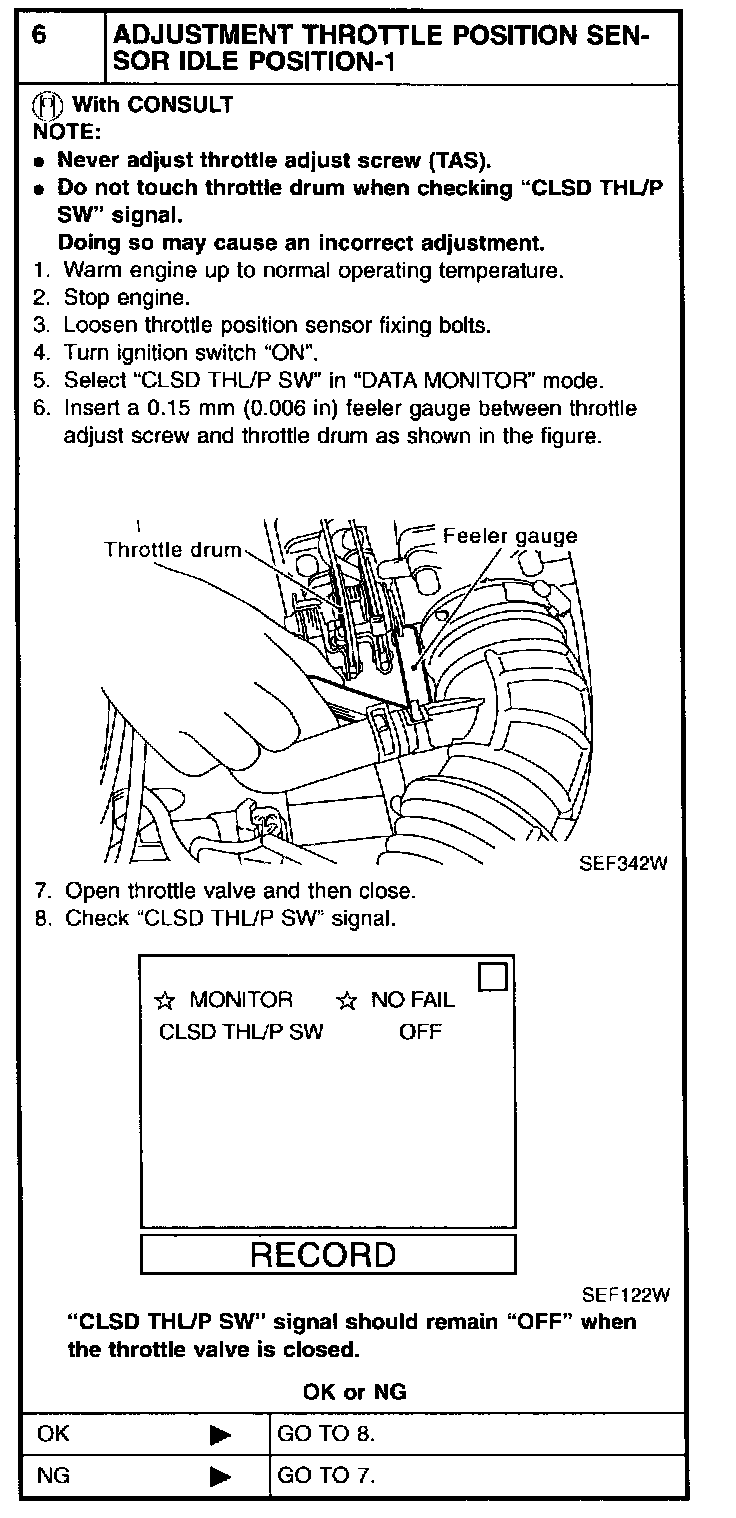

6 ADJUSTMENT THROTTLE POSITION SENSOR IDLE POSITION-1:
7 ADJUSTMENT THROTTLE POSITION SENSOR IDLE POSITION -2:

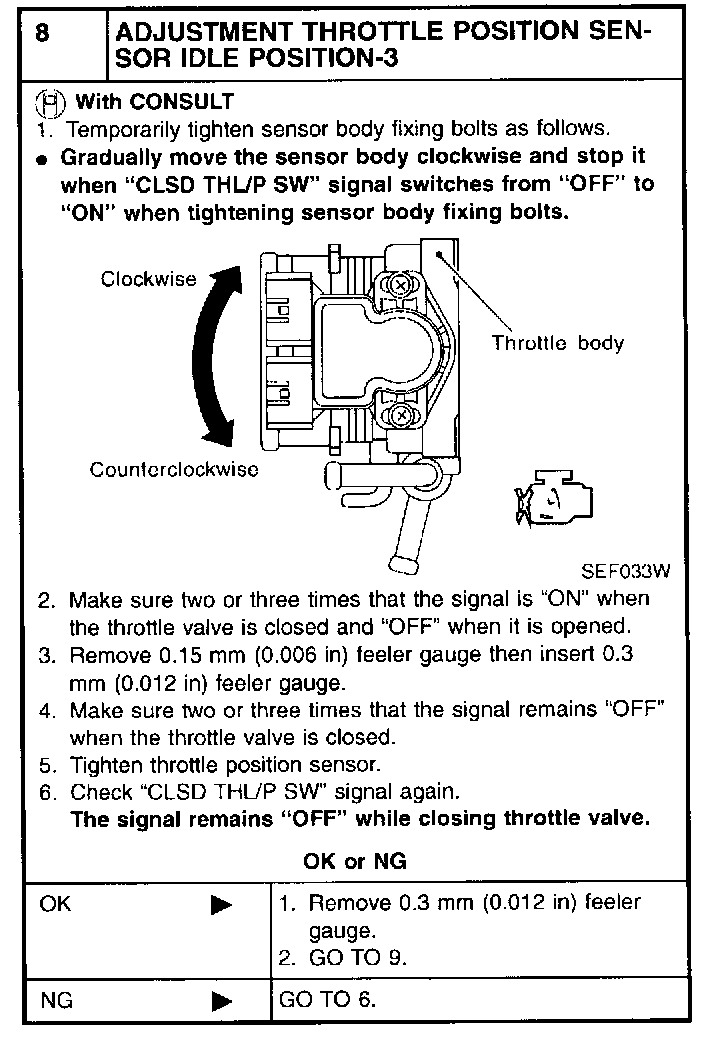

8 ADJUSTMENT THROTTLE POSITION SENSOR IDLE POSITION-3:

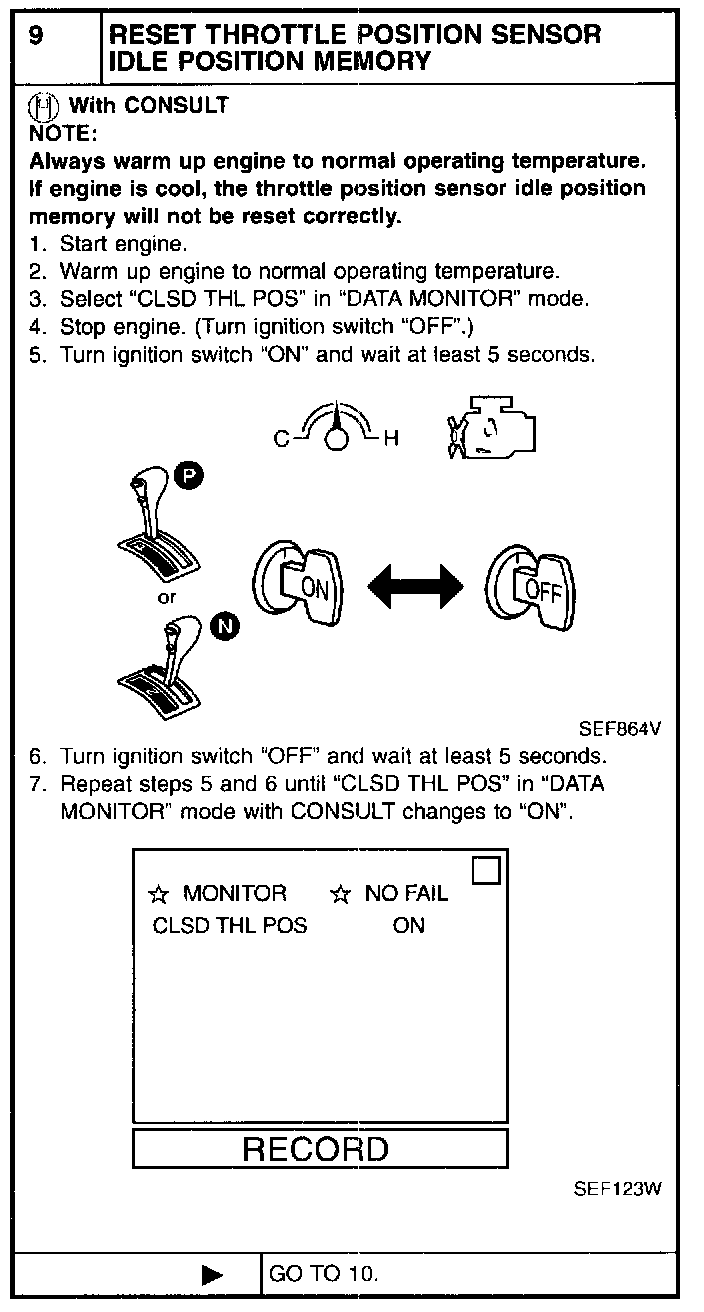

9 RESET THROTTLE POSITION SENSOR IDLE POSITION MEMORY:
10 CHECK TARGET IDLE SPEED:

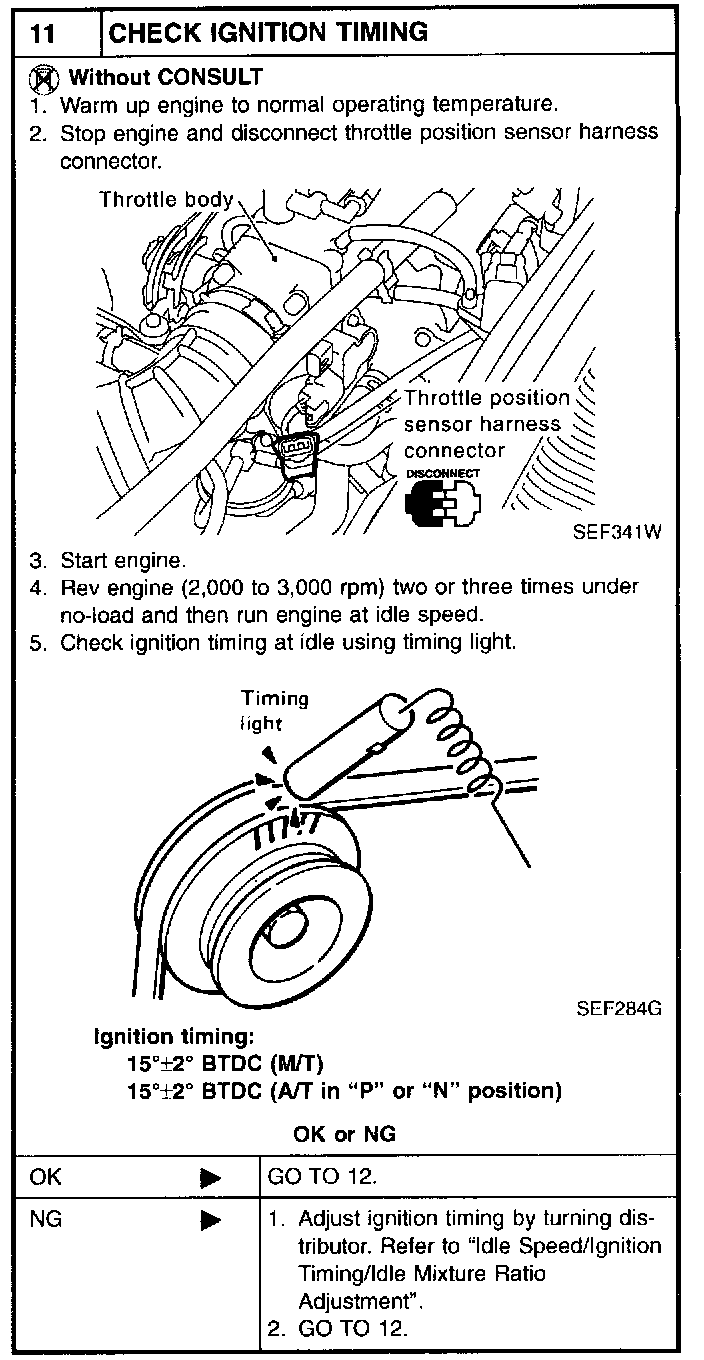

11 CHECK IGNITION TIMING:
12 CHECK BASE IDLE SPEED:

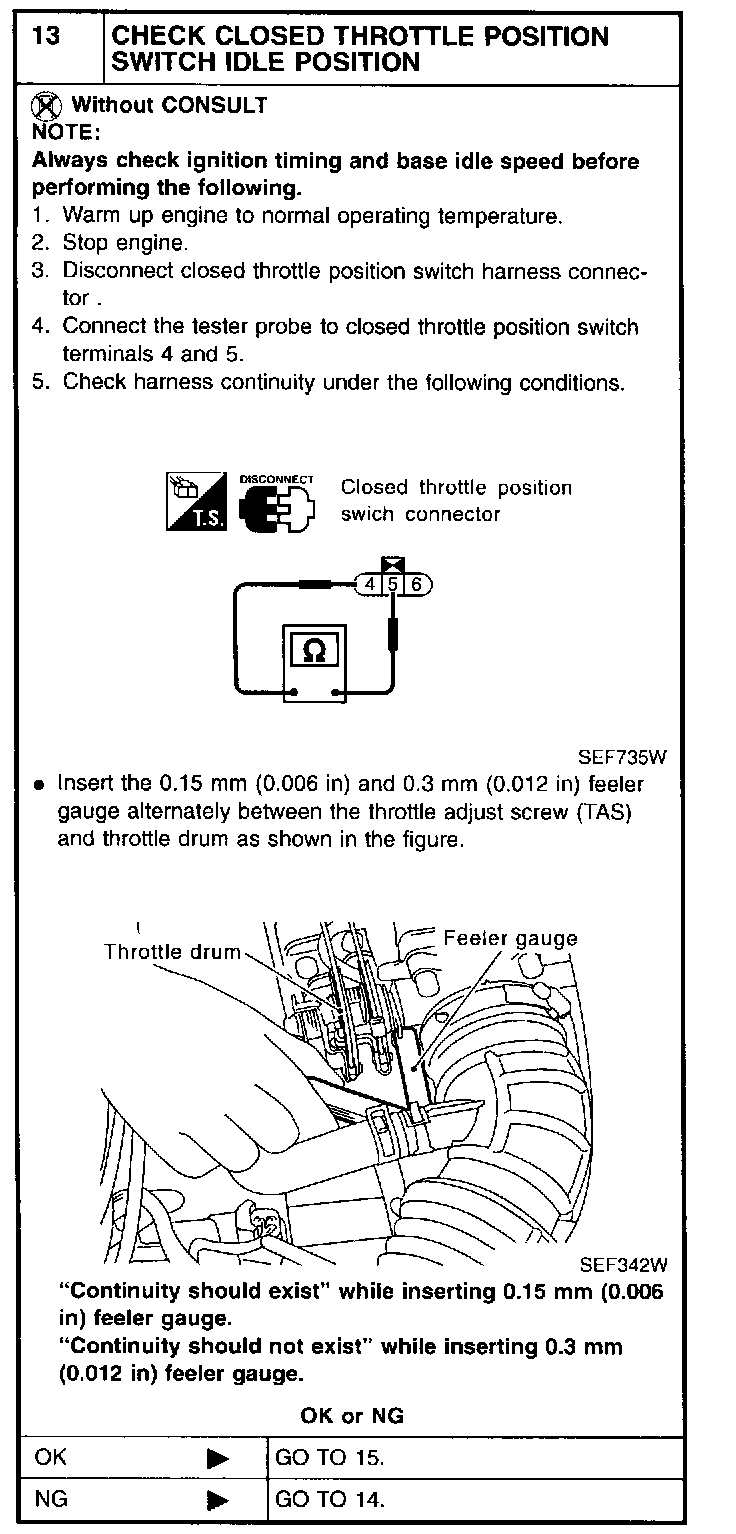

13 CHECK CLOSED THROTTLE POSITION SWITCH IDLE POSITION:

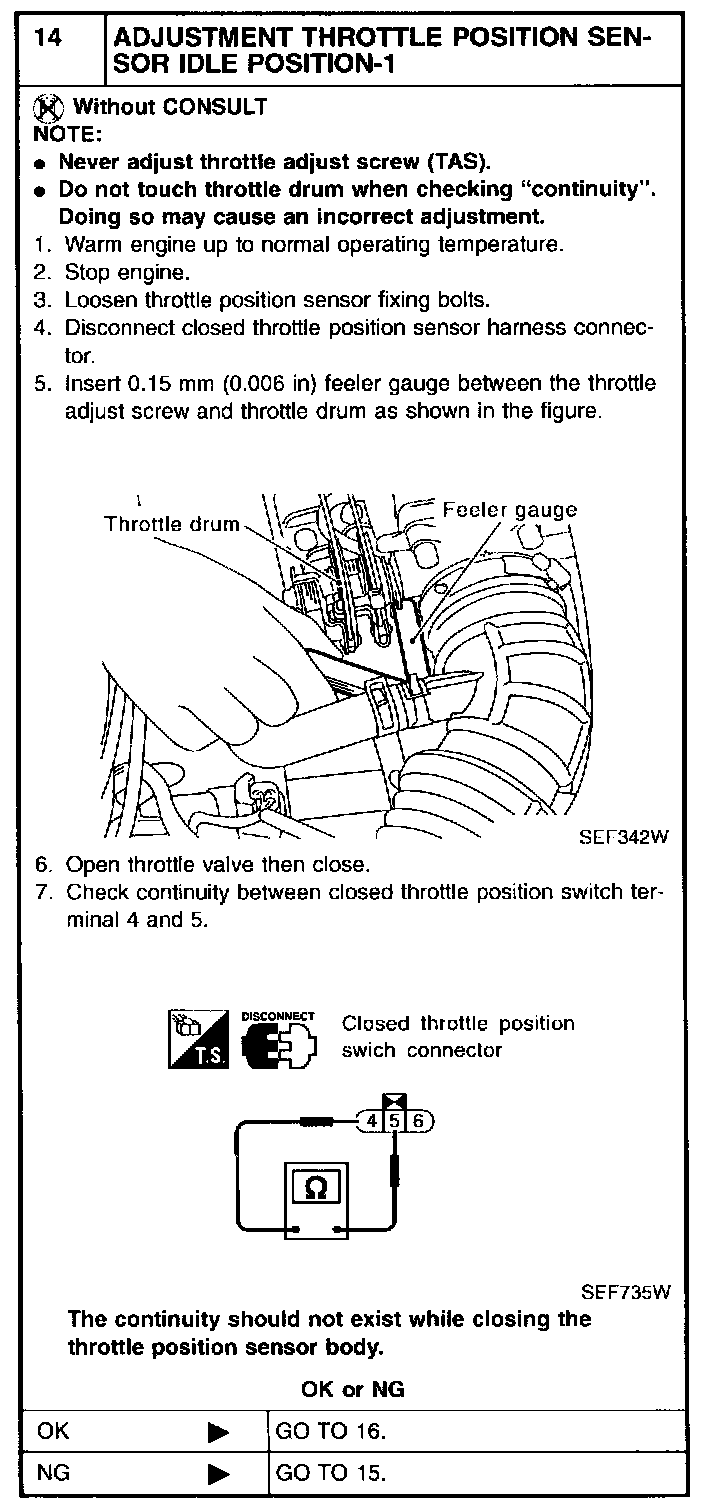

14 ADJUSTMENT THROTTLE POSITION SENSOR IDLE POSITION-1:
15 ADJUSTMENT THROTTLE POSITION SENSOR IDLE POSITION-2:

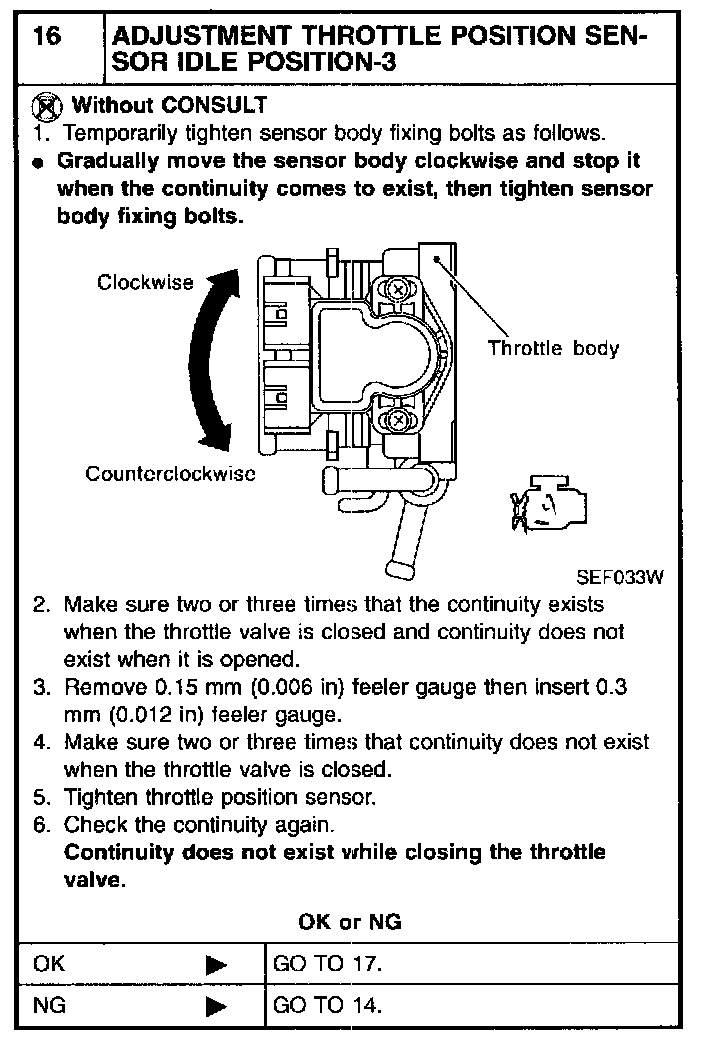

16 ADJUSTMENT THROTTLE POSITION SENSOR IDLE POSITION-3:
17 REINSTALLATION:
18 RESET THROTTLE POSITION SENSOR IDLE POSITION MEMORY:
19 CHECK TARGET IDLE SPEED:
20 ERASE UNNECESSARY DTC:
BASIC INSPECTION
Precaution:
Perform Basic Inspection without electrical or mechanical loads applied;
- Headlamp switch is OFF,
- Air conditioner switch is OFF,
- Rear window defogger switch is OFF,
- Steering wheel is in the straight-ahead position, etc.
