Ground Circuit Check

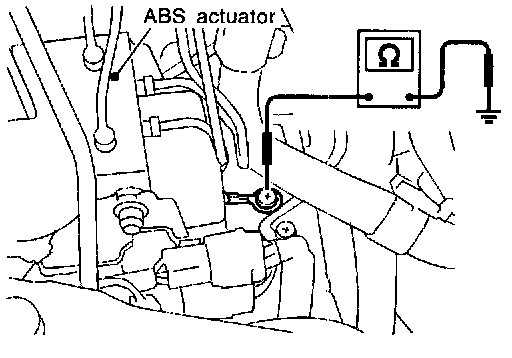

ACTUATOR MOTOR GROUND -
Check resistance between actuator motor ground terminal and body ground.
Resistance:

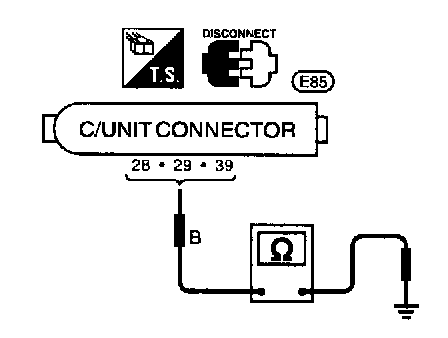

0 OhmsCONTROL UNIT GROUND -
Check resistance between the terminals and ground.
Resistance:

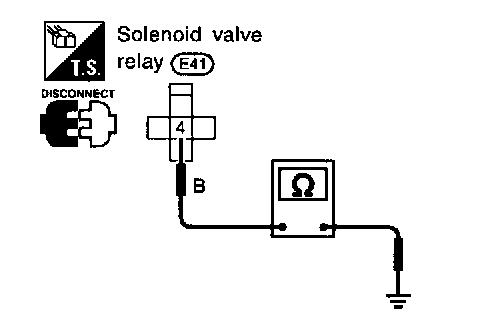

0 OhmsABS SOLENOID VALVE RELAY GROUND -
Check resistance between solenoid valve relay terminal 4 and ground.
Resistance:
0 Ohms
