System Specifications

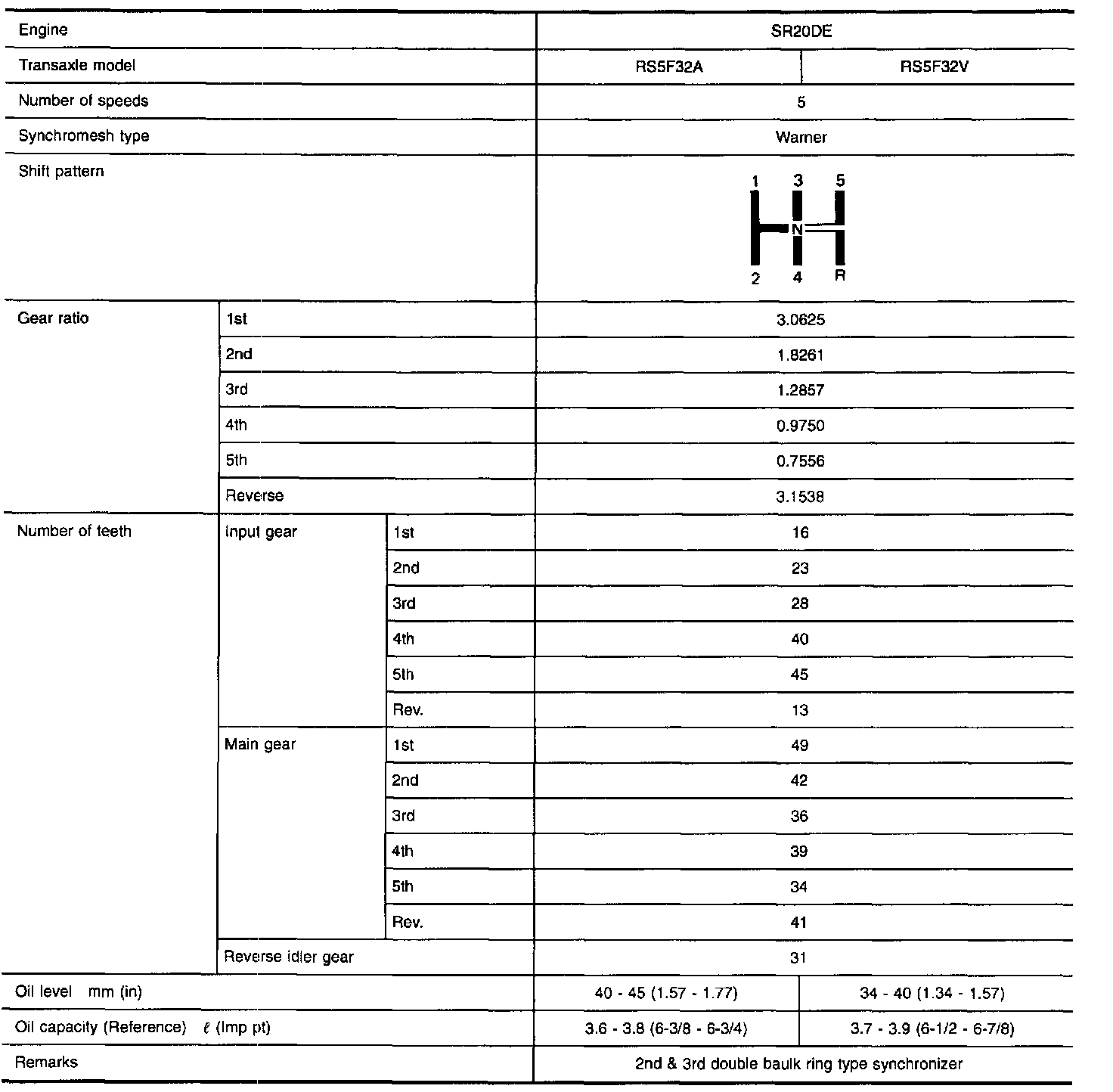

General Specifications





TRANSAXLE





FINAL GEAR

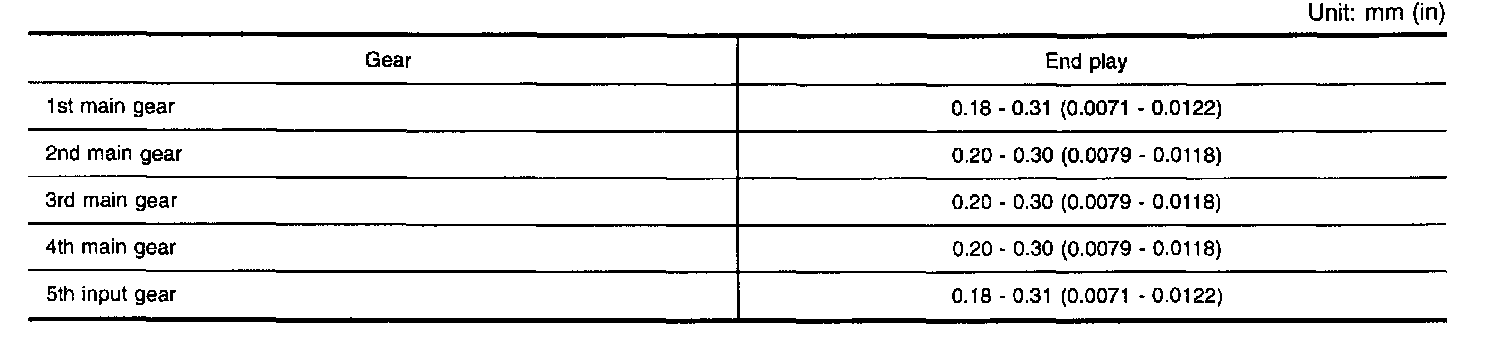

Gear End Play

Clearance Between Baulk Ring and Gear

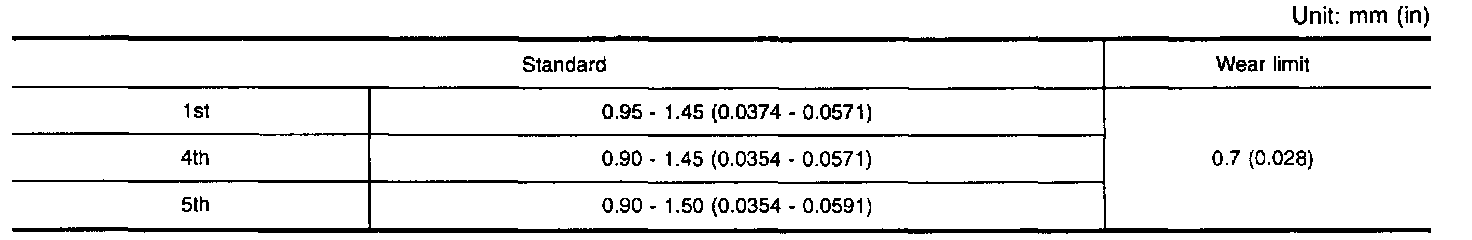

1ST, 4TH AND 5TH BAULK RING

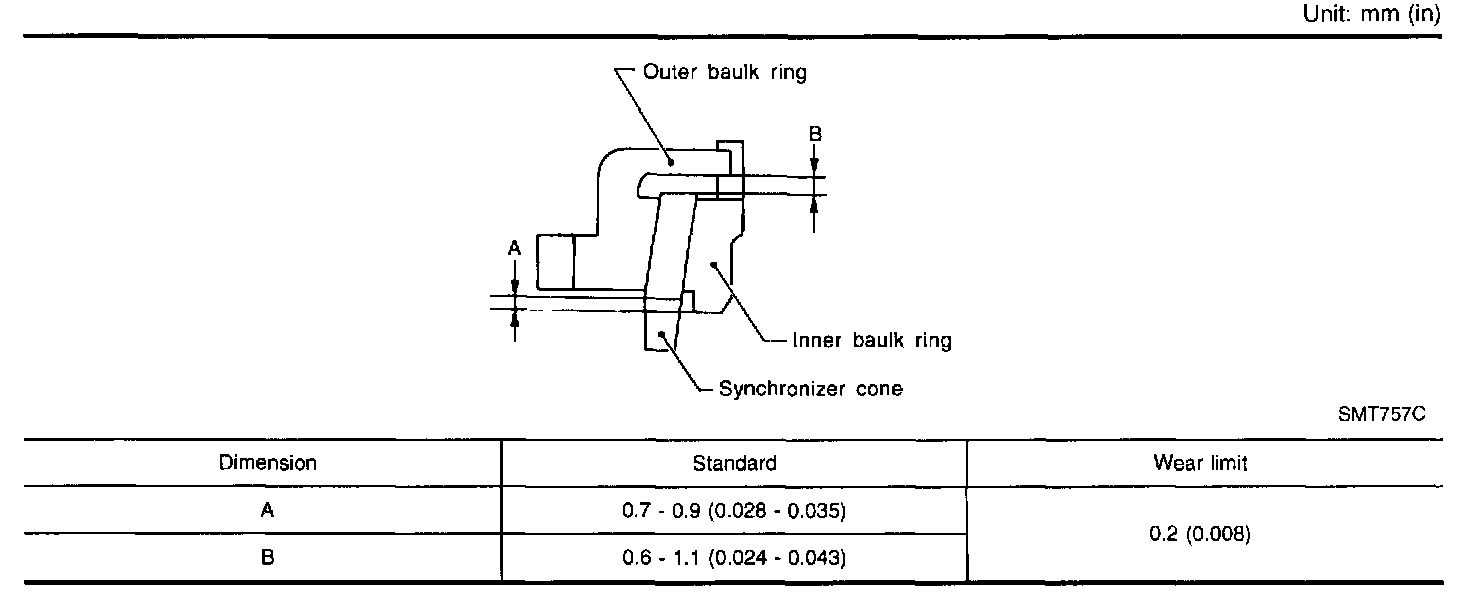

2ND AND 3RD BAULK RING

Available Check Plugs

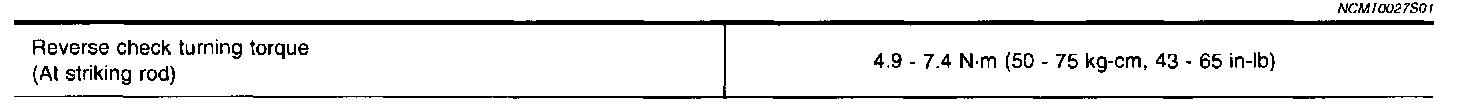

REVERSE CHECK PLUG

Available Case Cover

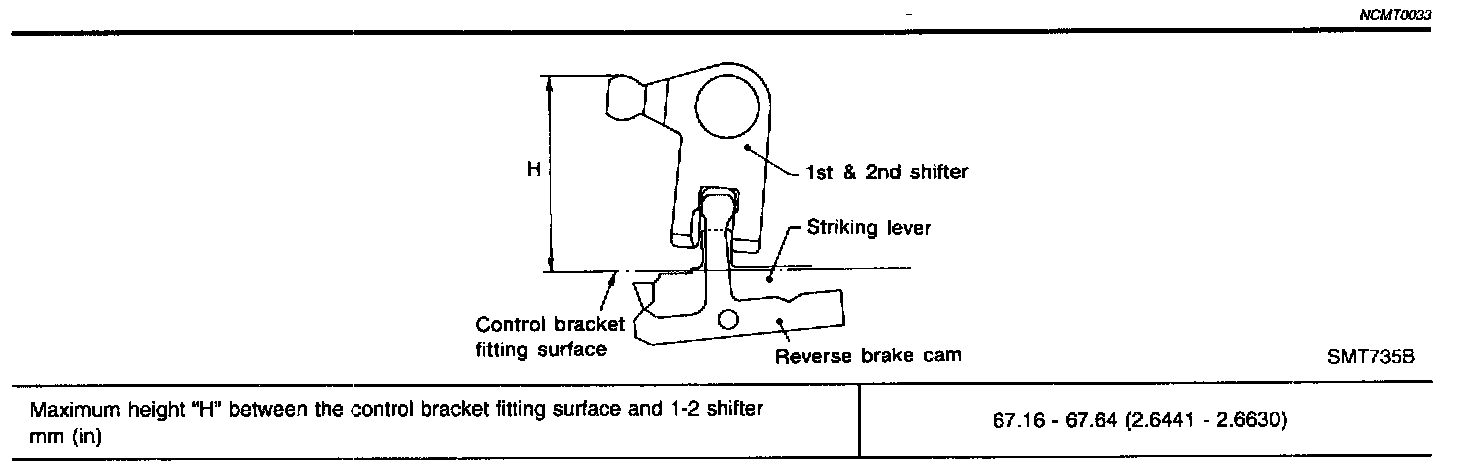

CASE COVER

Available Snap Rings





INPUT SHAFT FRONT BEARING





INPUT SHAFT 5TH SYNCHRONIZER HUB

Available C-rings





MAINSHAFT C-RING

Available Spacers

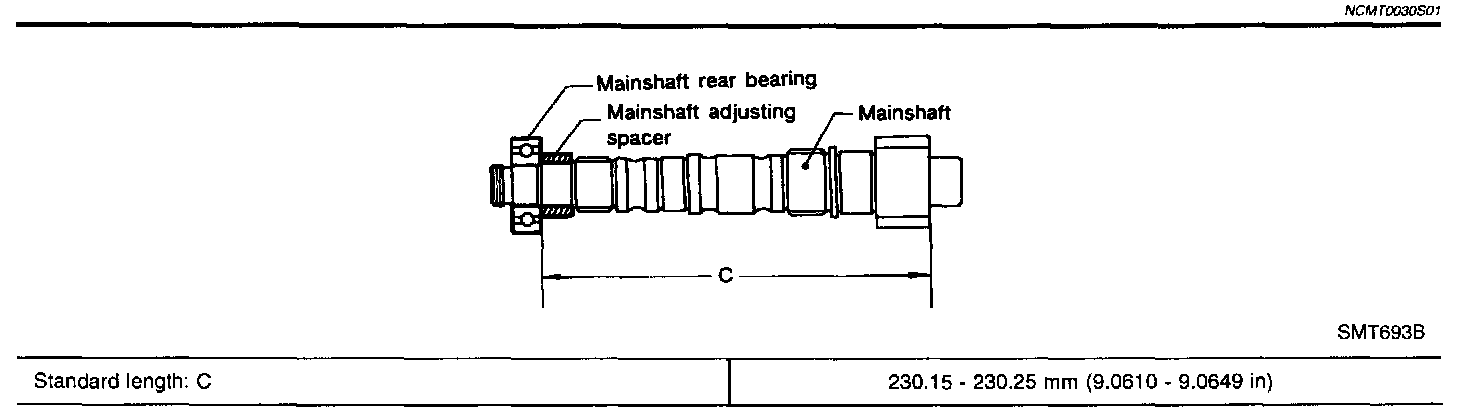

MAINSHAFT BEARING ADJUSTING SPACER

Available Washers
DIFFERENTIAL SIDE GEAR THRUST WASHER





-RS5F32A





-RS5F32V

Available Shims - Differential Side Bearing Preload and Adjusting Shim





BEARING PRELOAD (REUSED BEARING)

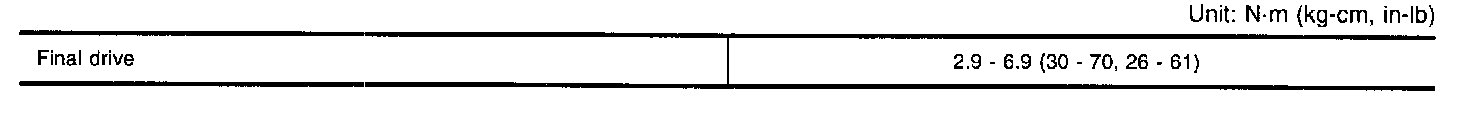

TURNING TORQUE (NEW BEARING)

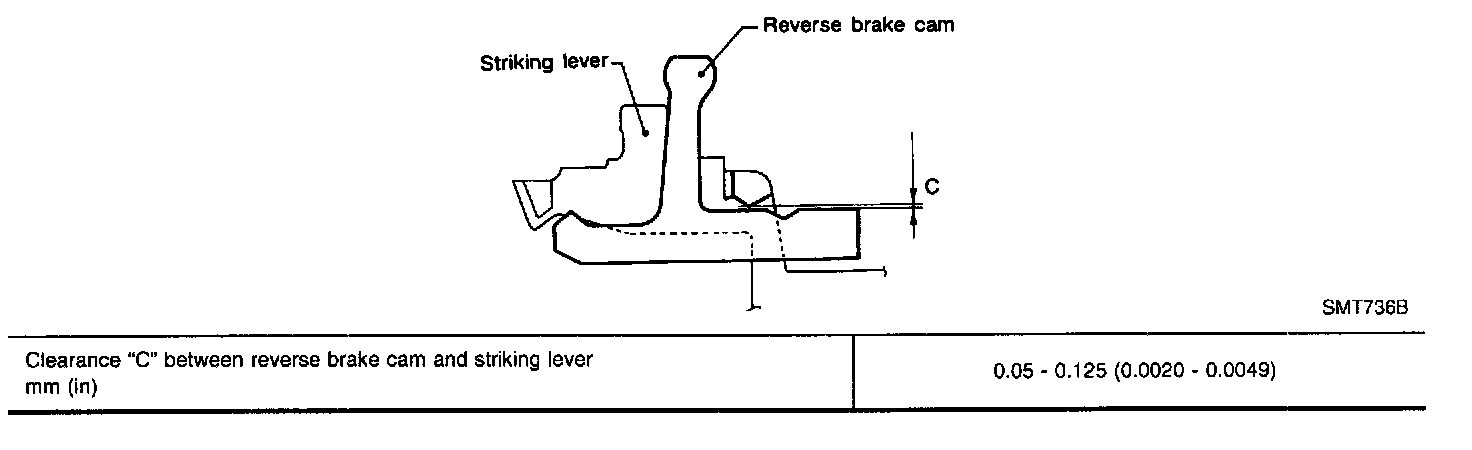

Input Shaft Braking Mechanism
