Diagnostic Trouble Code Testing Procedure

DESCRIPTION








The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.





CONSULT REFERENCE VALUE IN DATA MONITOR MODE

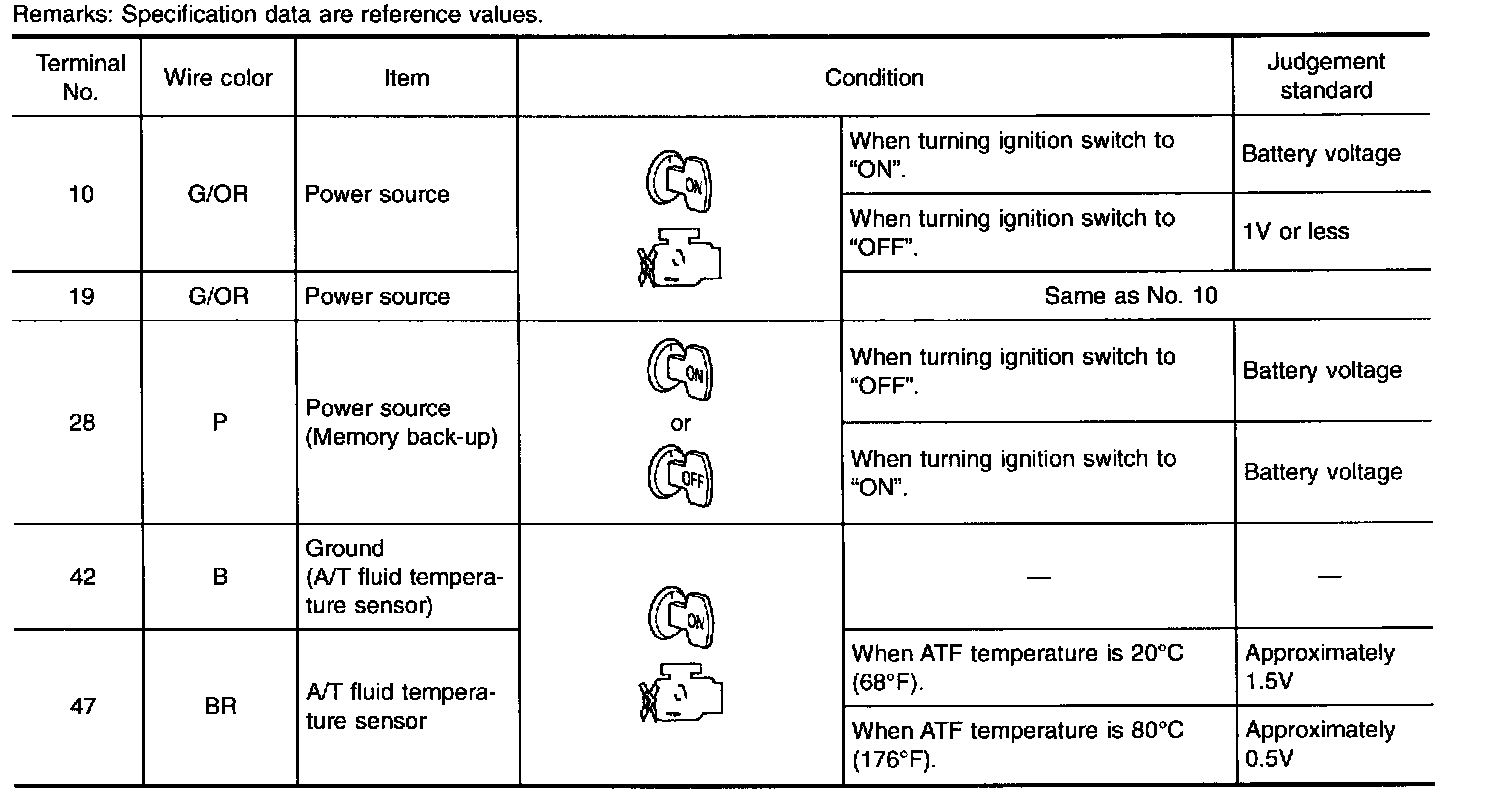

TCM TERMINALS AND REFERENCE VALUE





ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT
1. Start engine.





2. Select "DATA MONITOR" mode for "A/T" with CONSULT.





3. Drive vehicle under the following conditions: Selector lever in "D", vehicle speed higher than 20 km/h (12 MPH).


Without CONSULT




1. Start engine.
2. Drive vehicle under the following conditions: Selector lever in "D", vehicle speed higher than 20 km/h (12 MPH).
3. Perform self-diagnosis. Refer to TCM SELF-DIAGNOSTIC PROCEDURE (No Tools), Self Diagnostic Procedure; Without Consult.

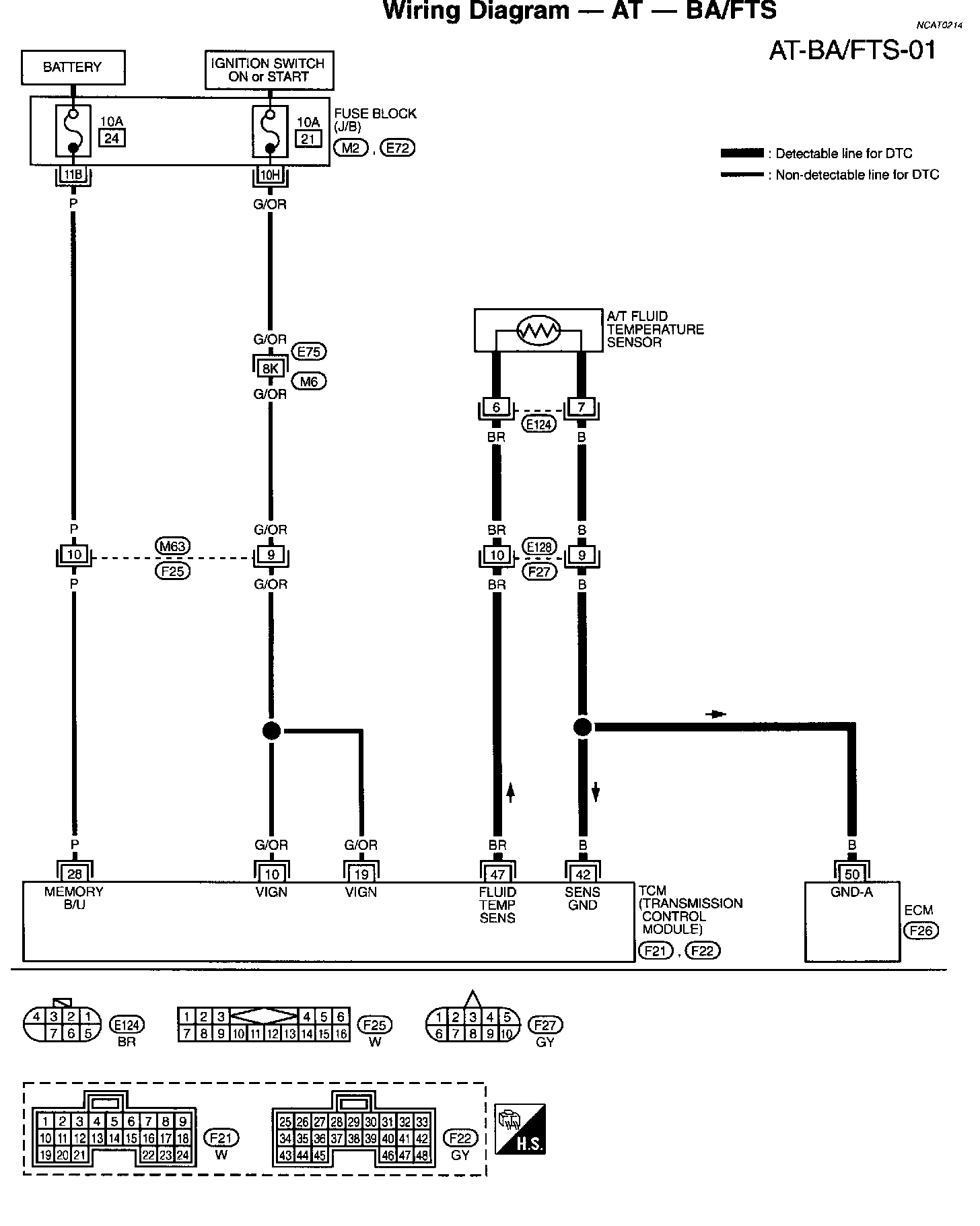

Wiring Diagram - AT - BA/FTS

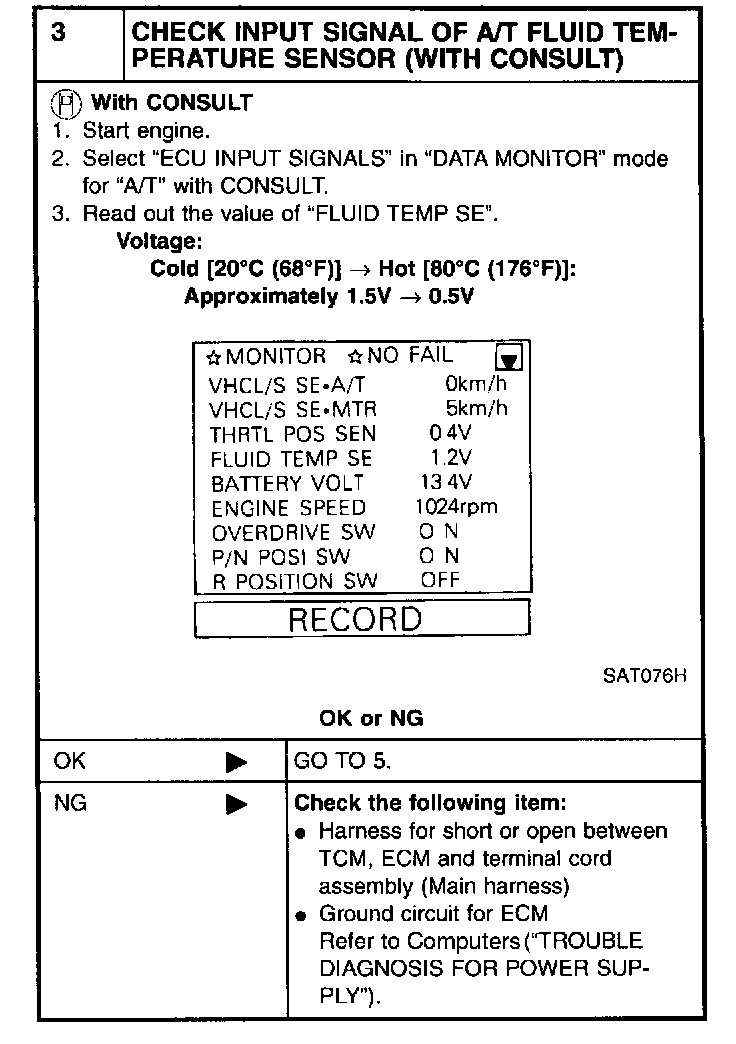

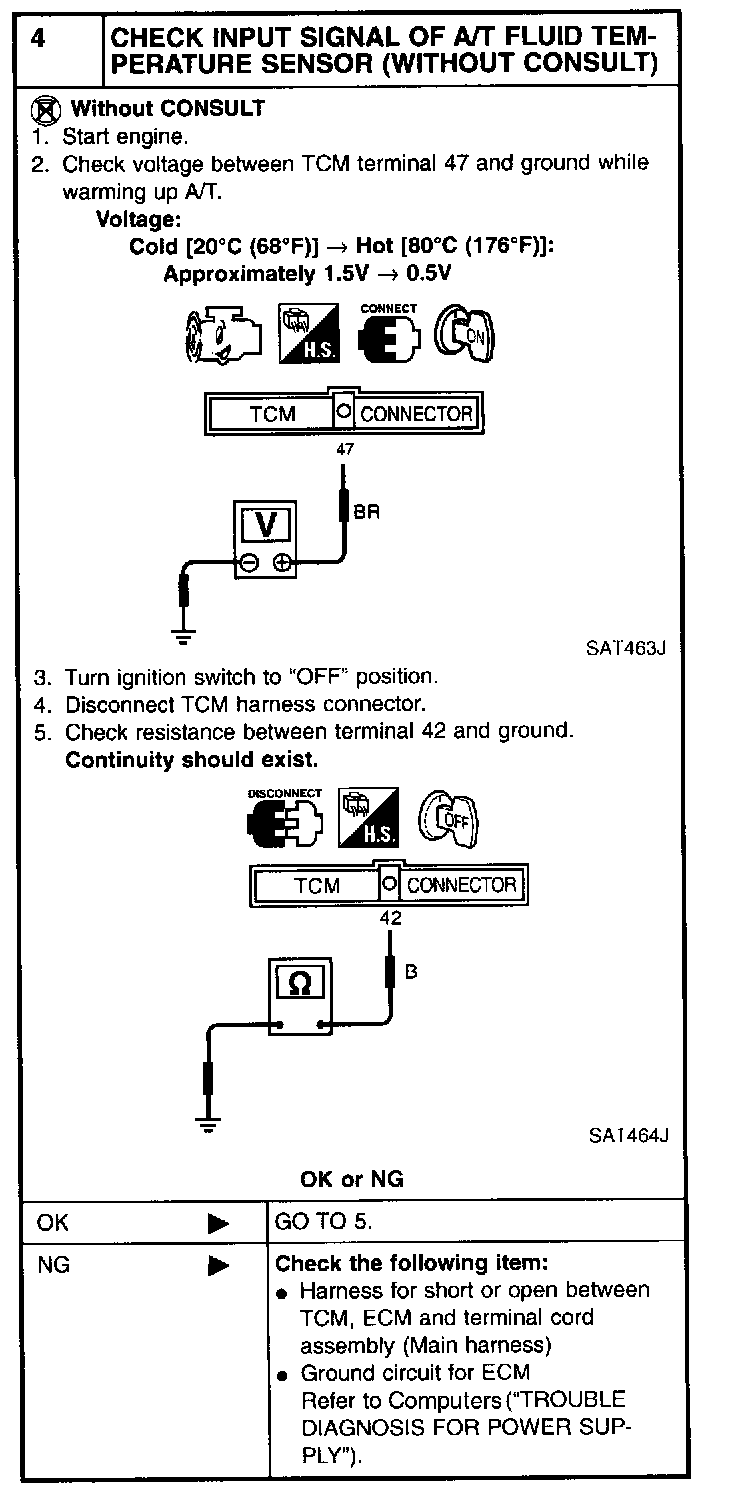

Diagnostic Procedure

Component Inspection
A/T FLUID TEMPERATURE SENSOR








^ For removal, refer to Valve Body; Service and Repair.
^ Check resistance between two terminals while changing temperature as shown at left.
