CONSULT-II "Function Check" Mode

CONSULT-II "FUNCTION CHECK" MODE

How to perform function check.




1. Lock the doors with door lock/unlock switch on driver's door trim.
2. Touch "FUNCTION CHECK".

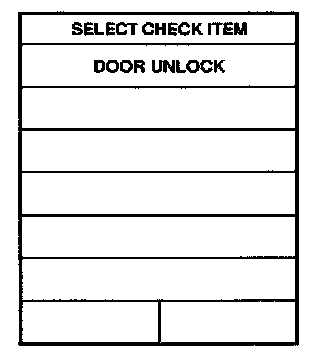

3. Touch "DOOR UNLOCK".

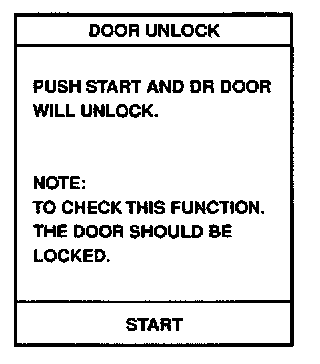

4. Touch "START". Then driver side door will be unlocked.
- If the door cannot be unlocked using CONSULT-II, check harness for open or short between smart entrance control unit terminal 20 and IVCS unit terminal 32.

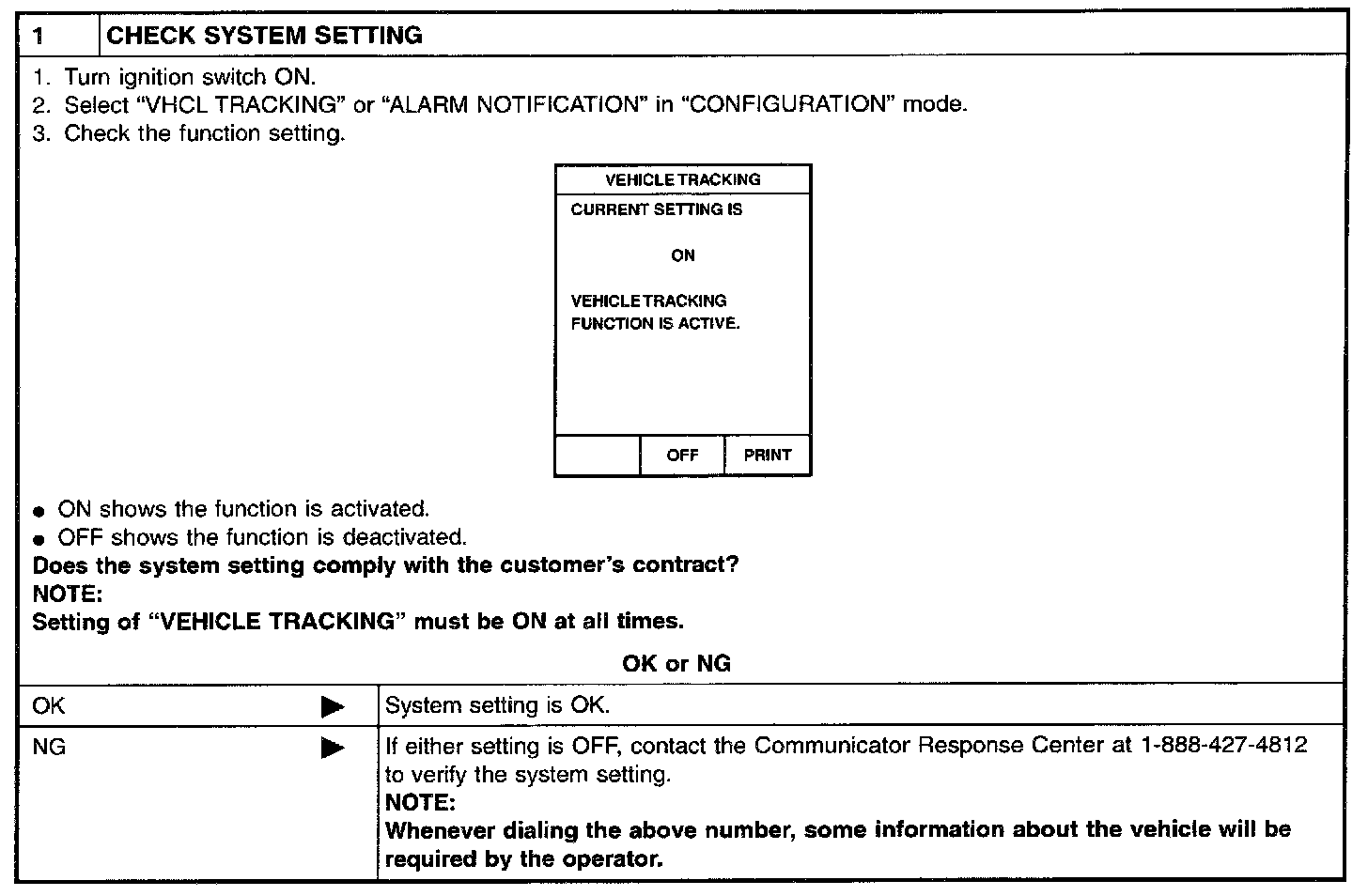

STOLEN VEHICLE TRACKING/ALARM NOTIFICATION SETTING CHECK (CONSULT-II "CONFIGURATION" MODE)

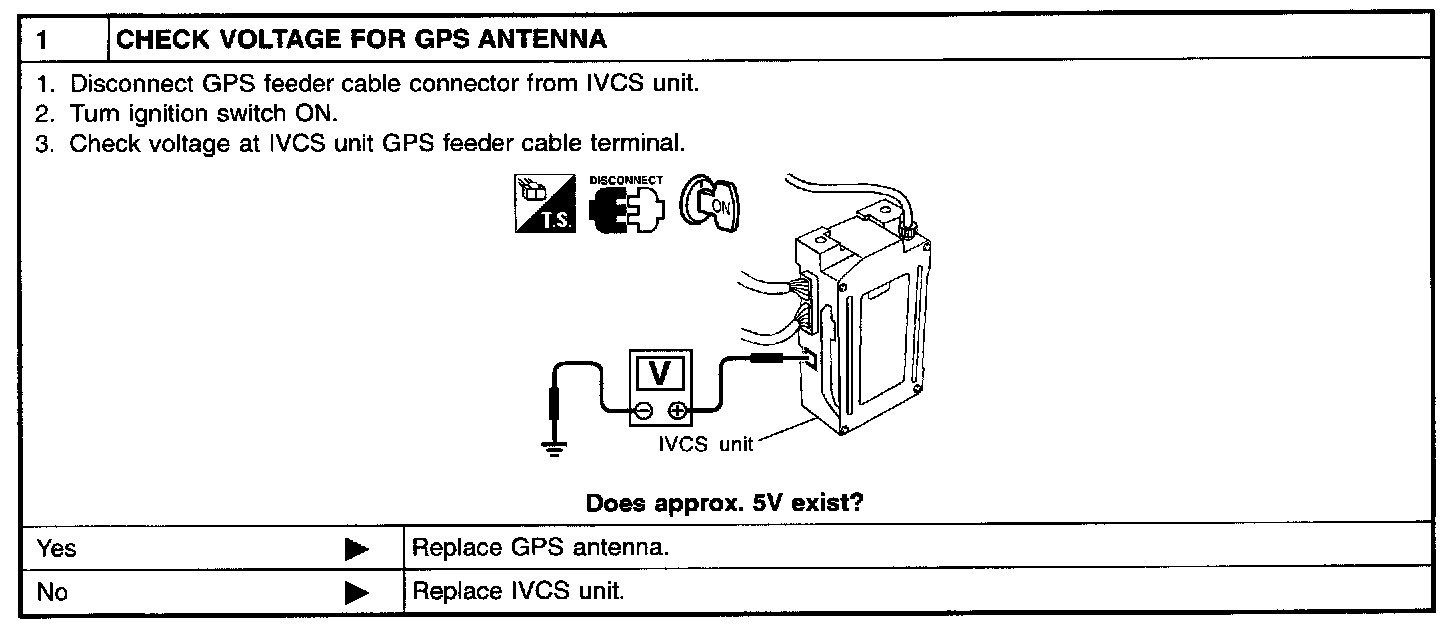

GPS ANTENNA CHECK

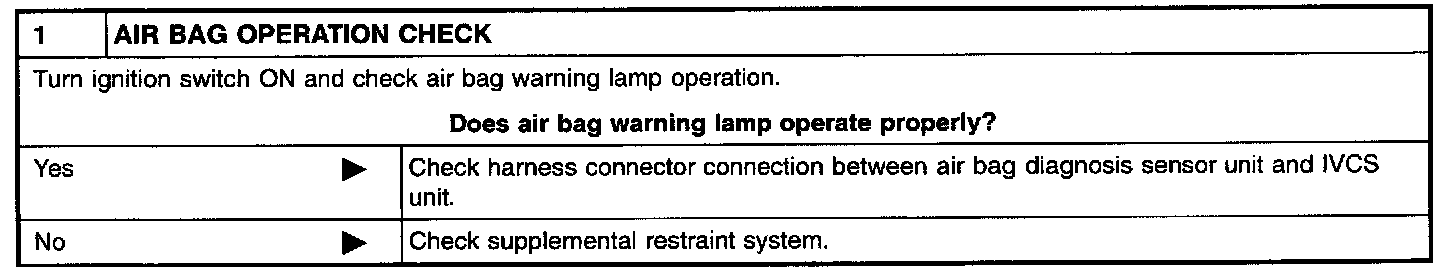

AIR BAG DIAGNOSES SENSOR UNIT COMMUNICATION CHECK

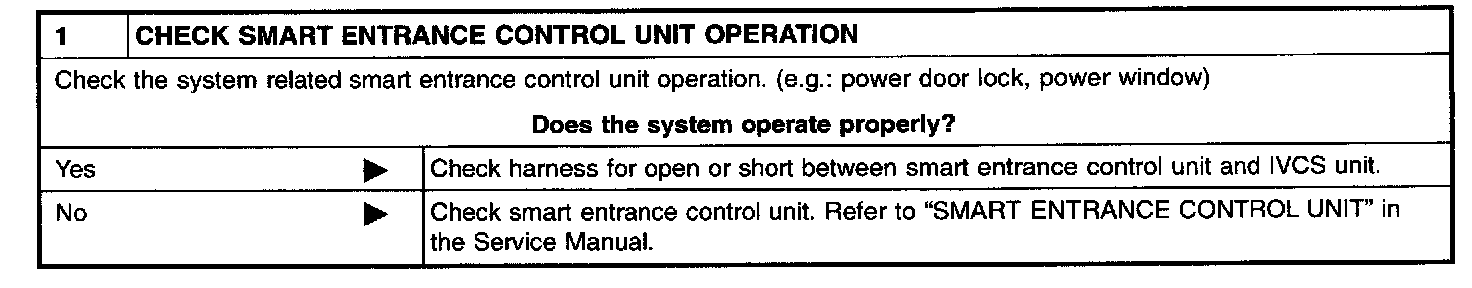

SMART ENTRANCE CONTROL UNIT COMMUNICATION CHECK

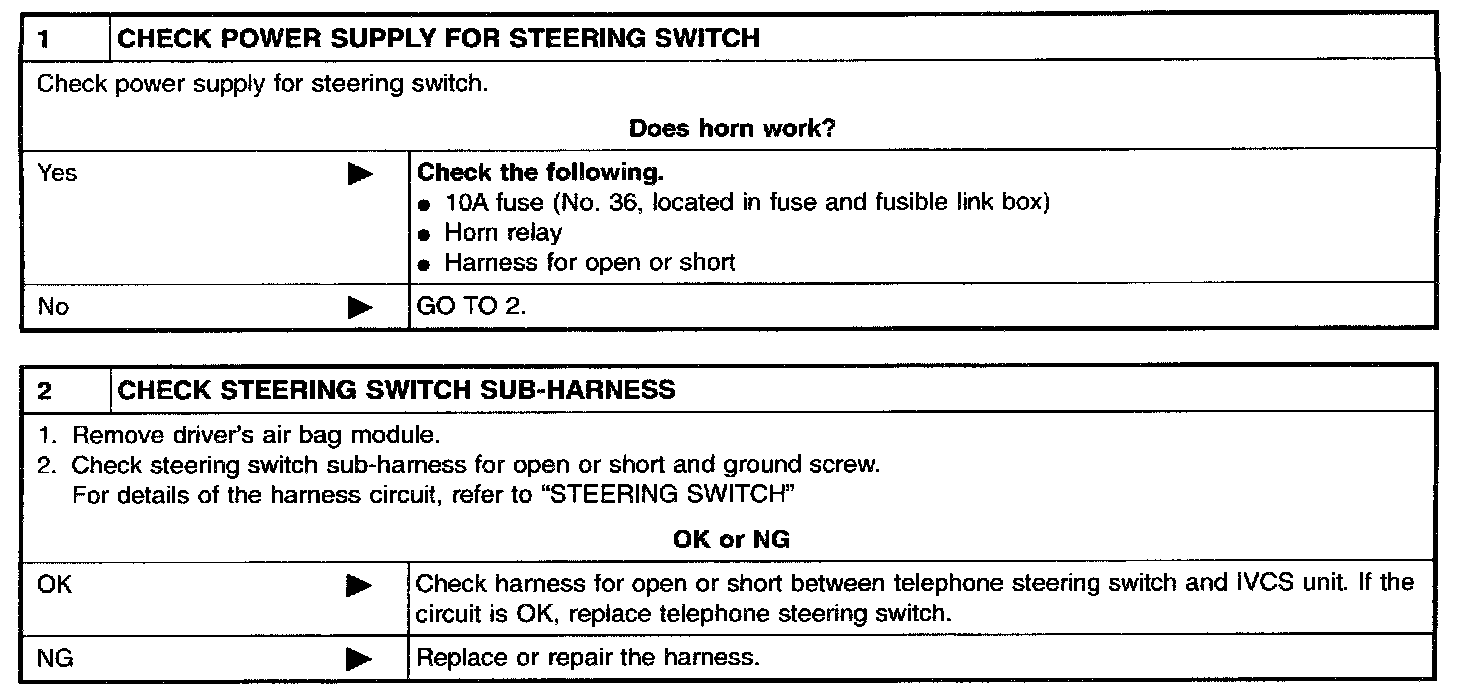

TELEPHONE STEERING SWITCH CHECK
