Symptom Related Diagnostic Procedures

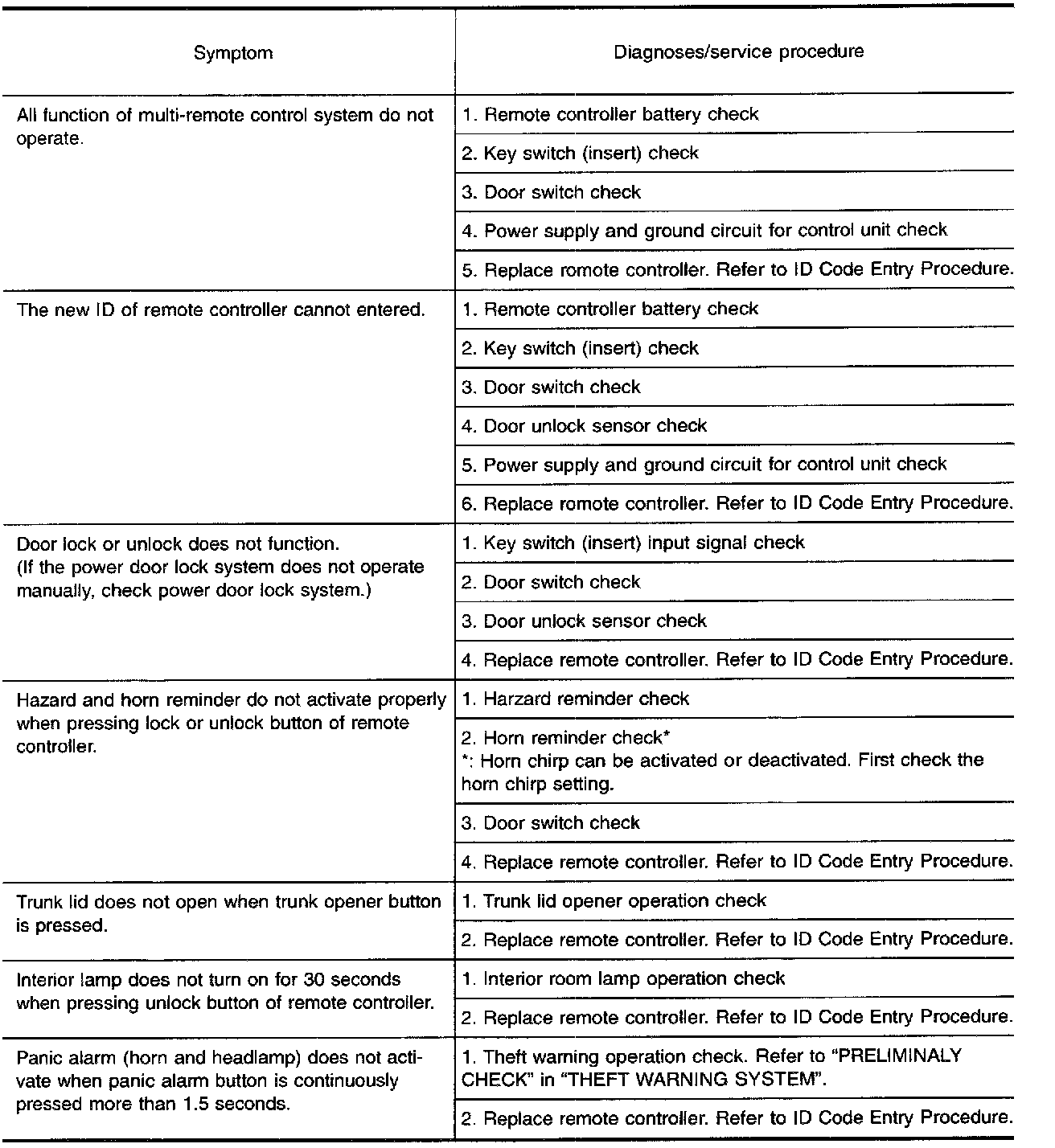

SYMPTOM CHART

NOTE:
- The unlock and panic alarm operation of multi-remote control system does not activate with the ignition key inserted in the ignition key cylinder.
- The lock operation of multi-remote control system does not activate with the key inserted in the ignition key cylinder or if one of the doors is opened.

REMOTE CONTROLLER BATTERY CHECK

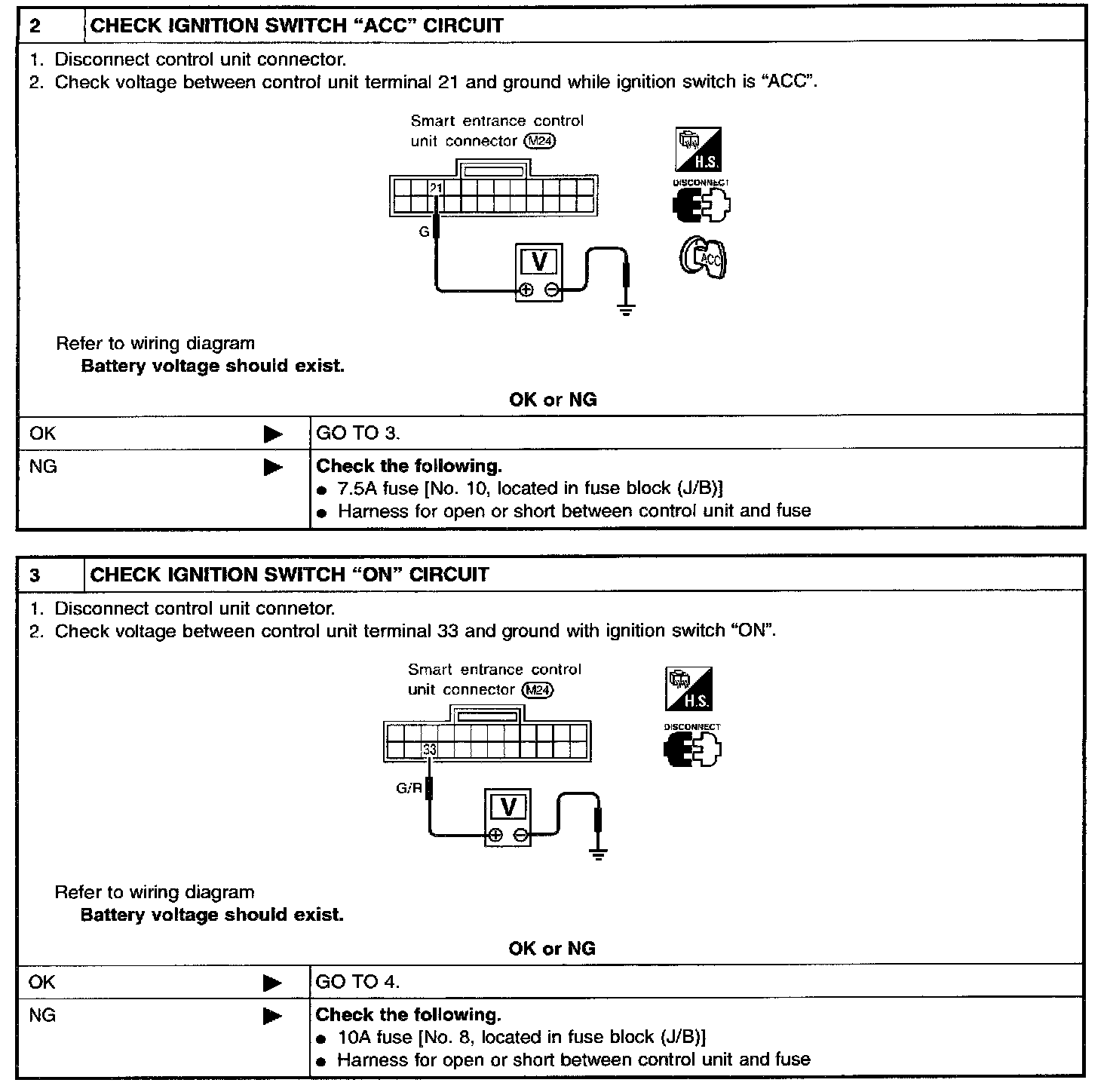

POWER SUPPLY AND GROUND CIRCUIT CHECK

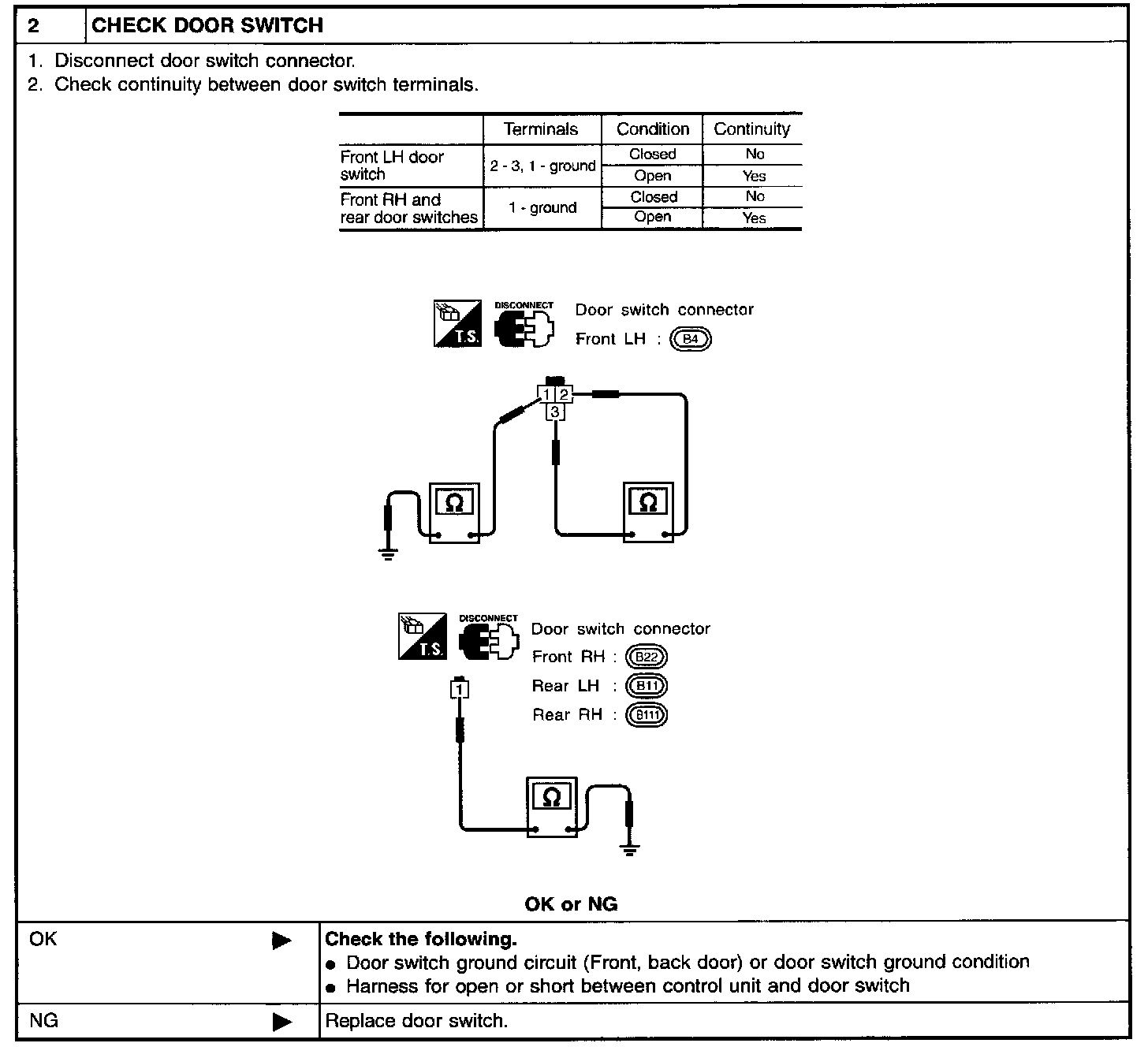

DOOR SWITCH CHECK

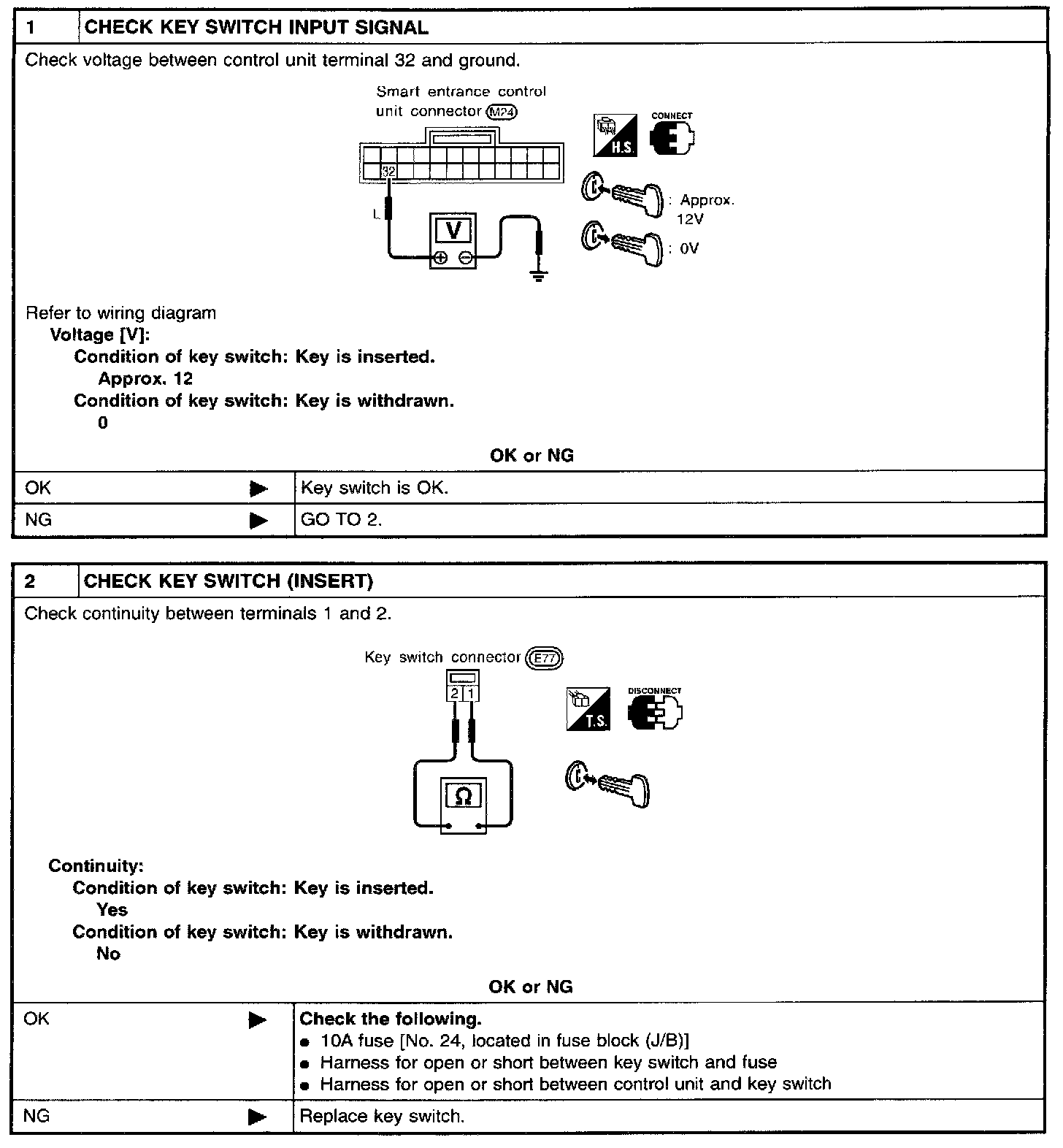

KEY SWITCH (INSERT) CHECK

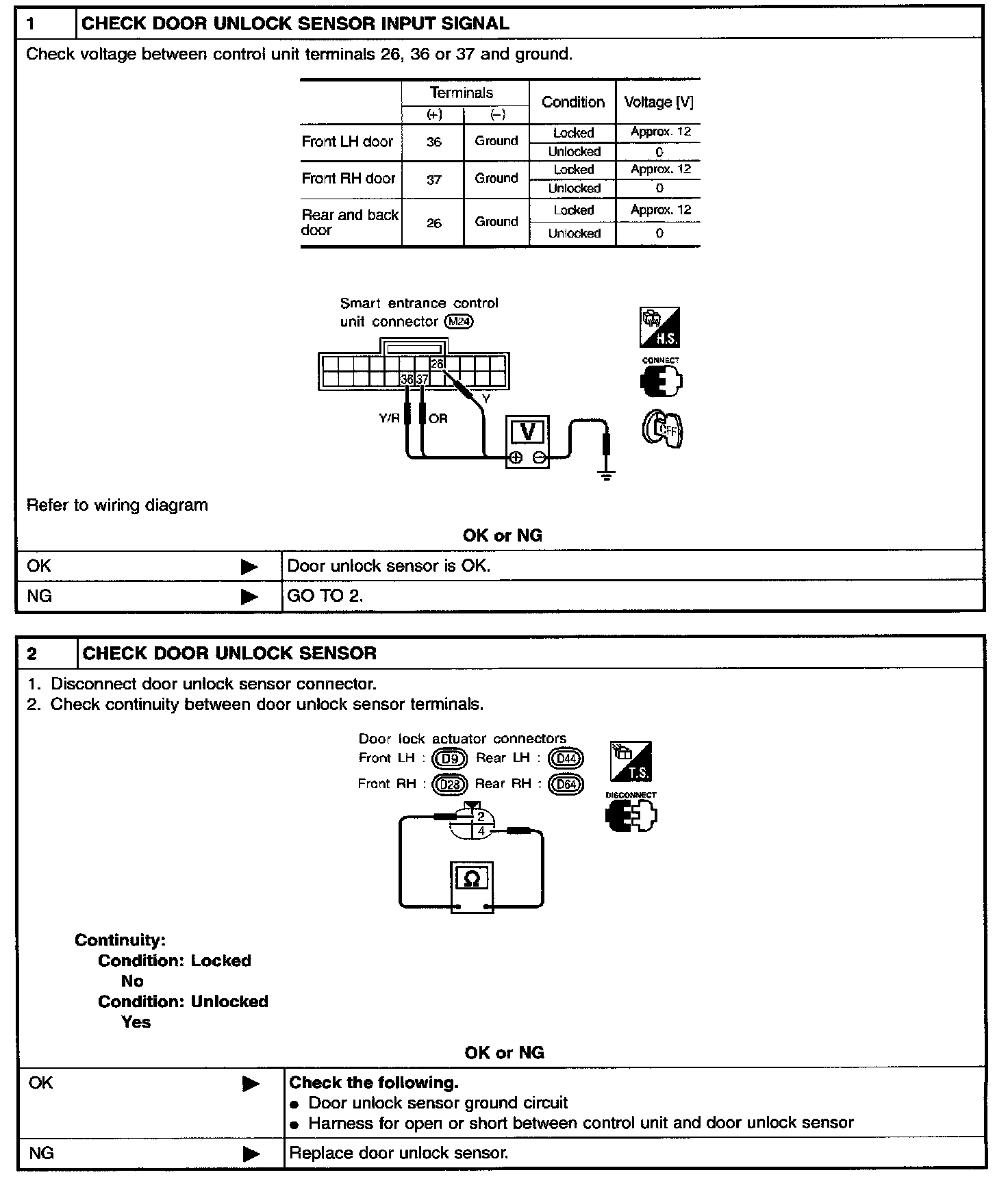

DOOR UNLOCK SENSOR CHECK

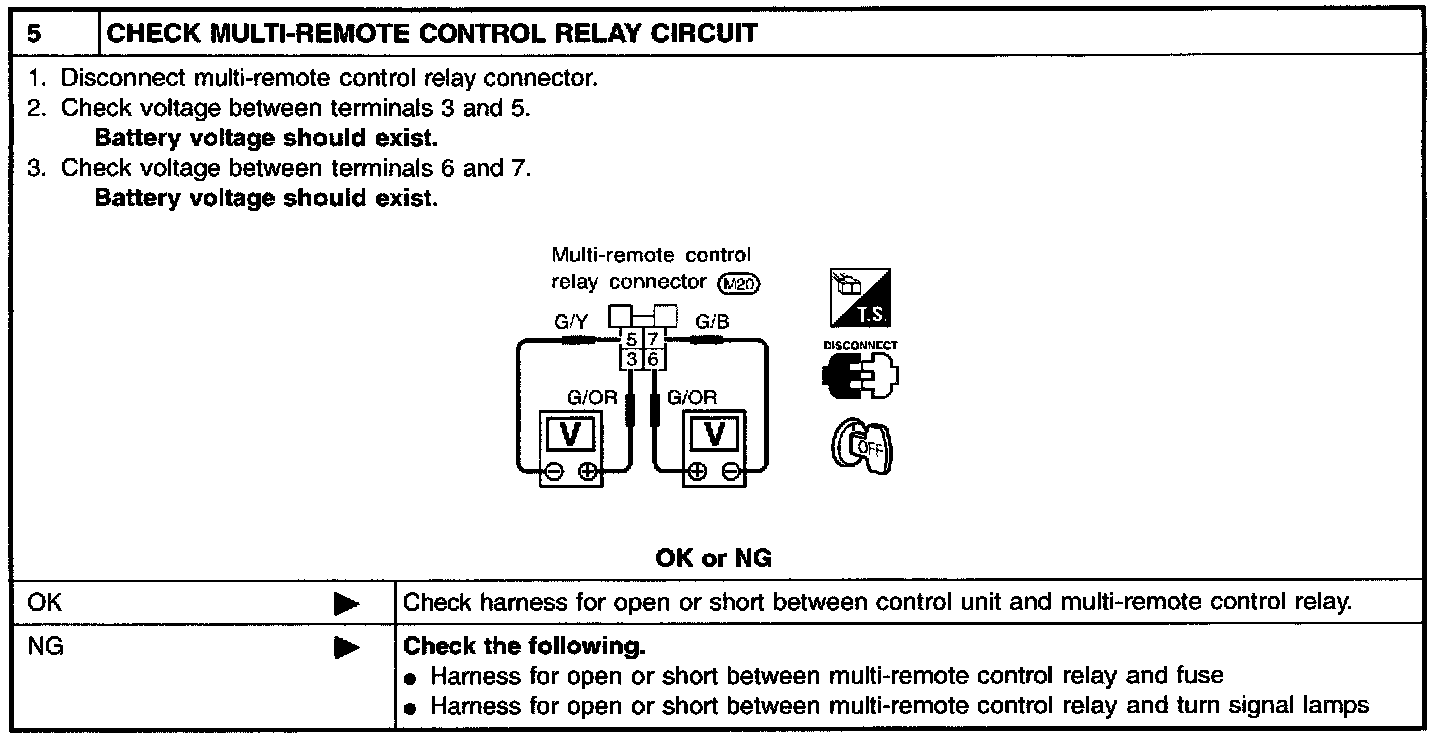

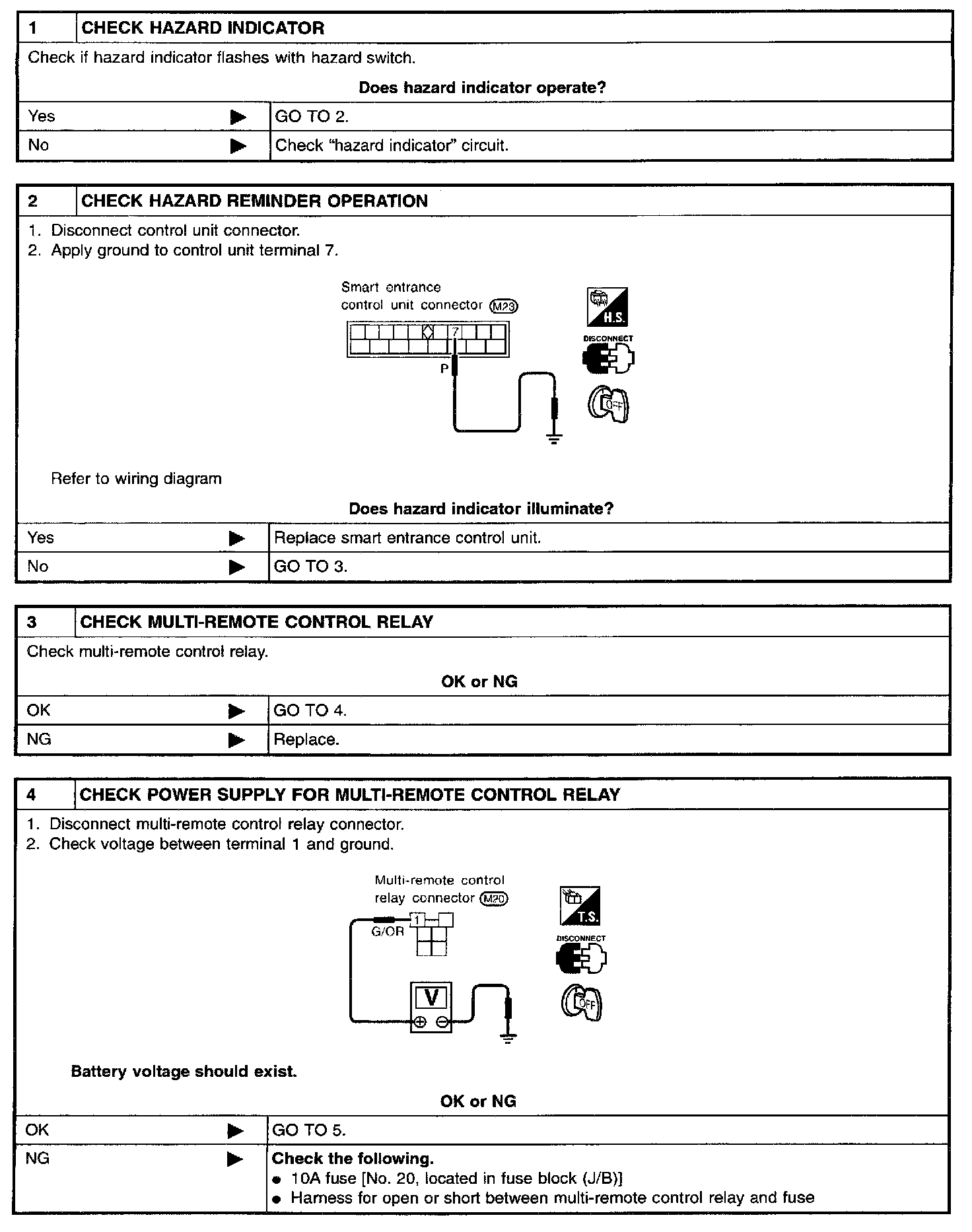

HAZARD REMINDER CHECK

HORN REMINDER CHECK

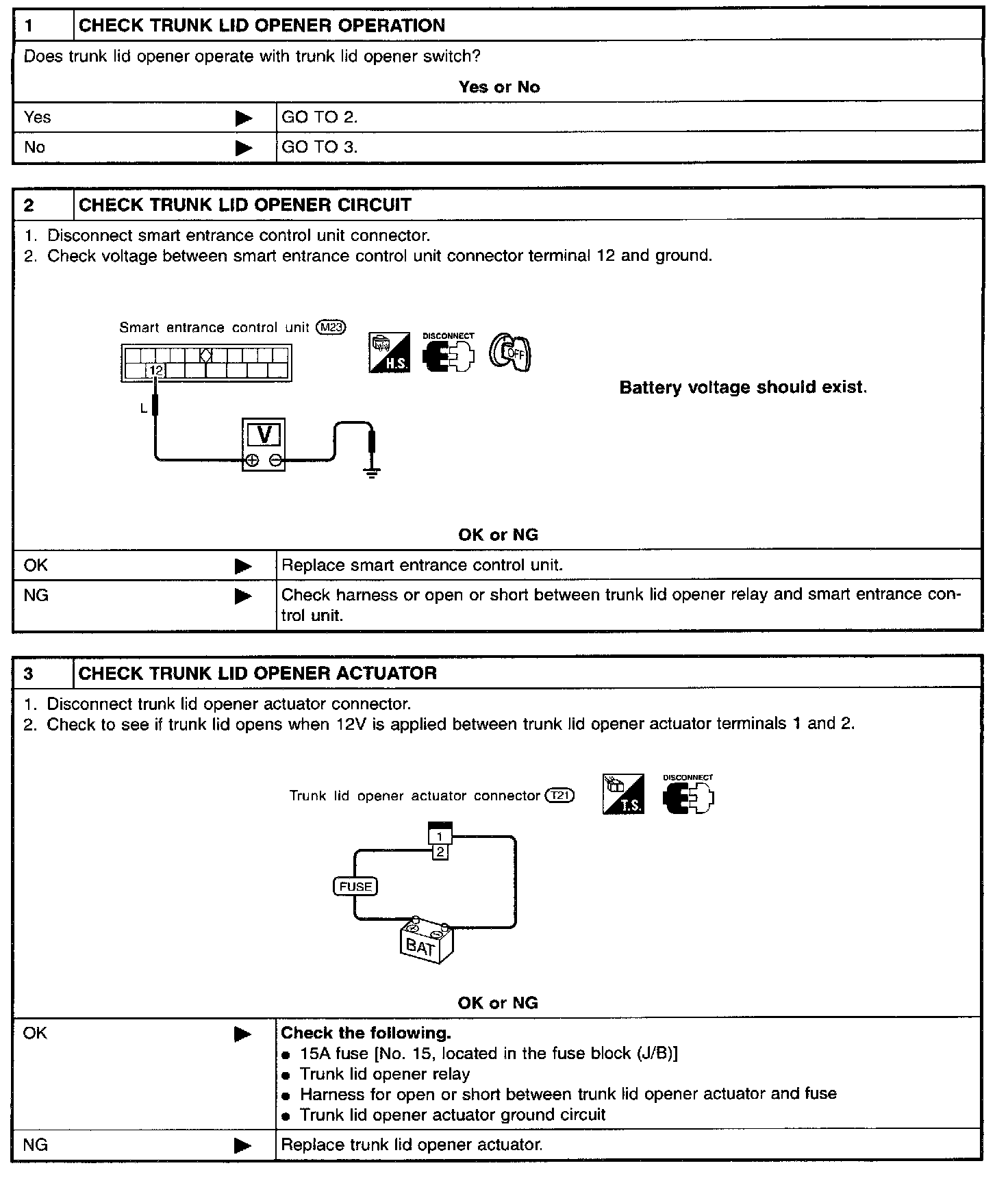

TRUNK LID OPENER CHECK

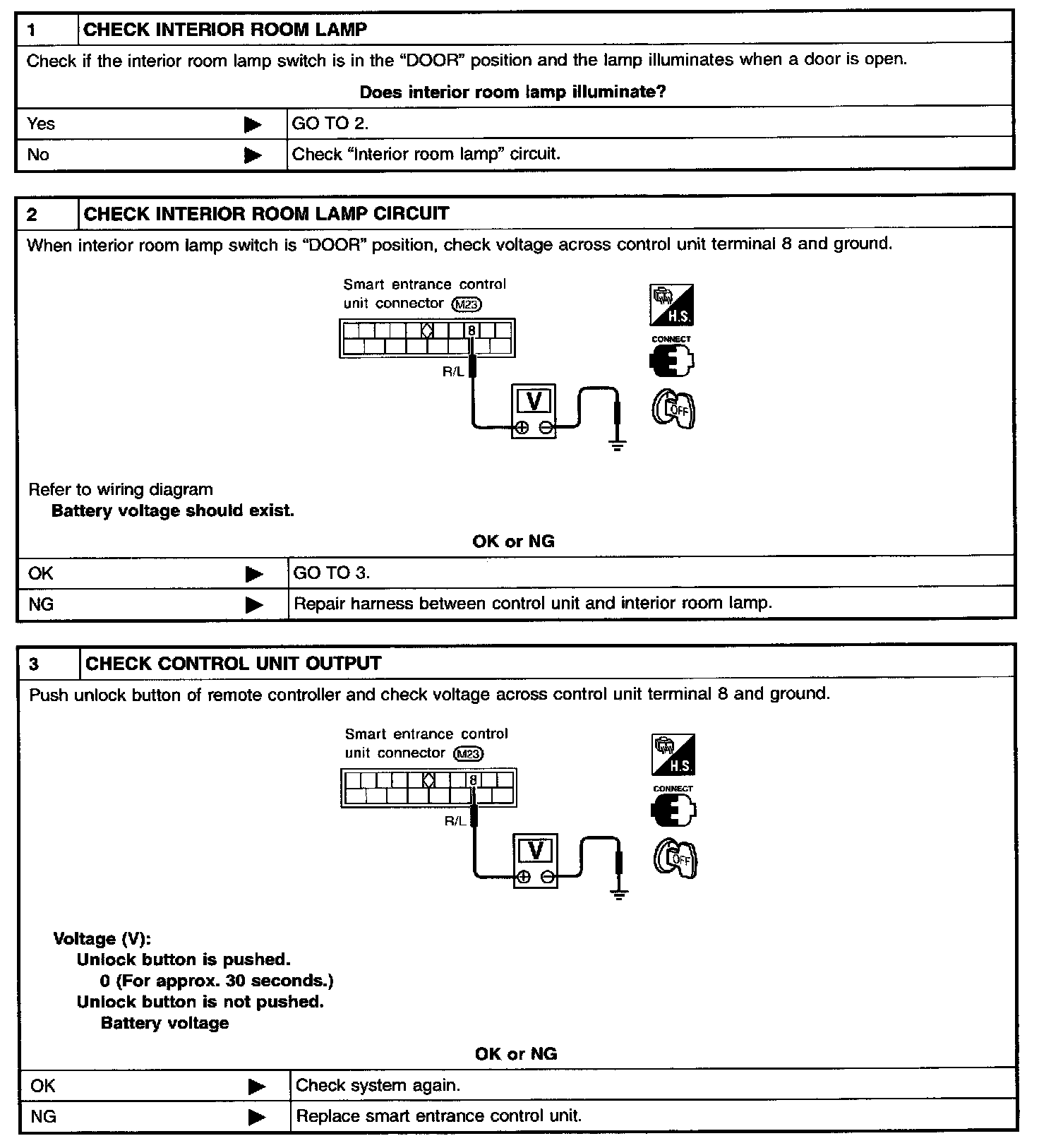

INTERIOR ROOM LAMP OPERATION CHECK
