Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

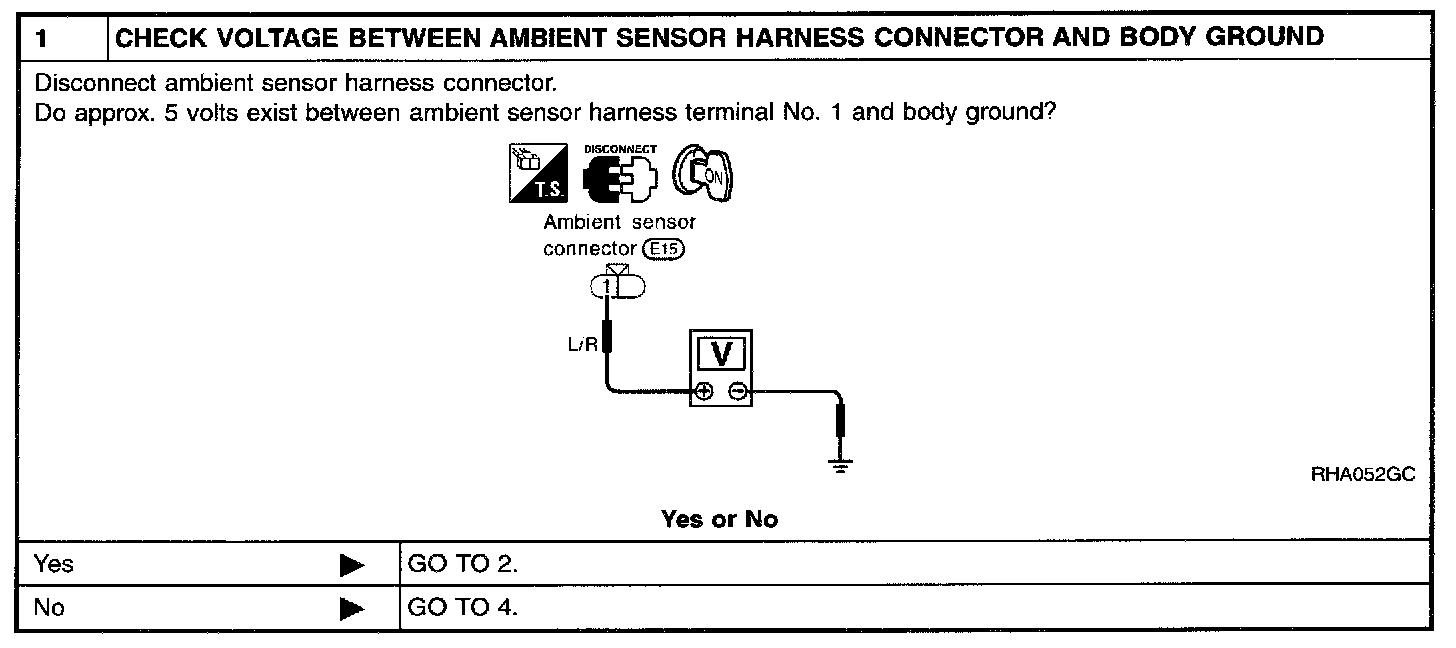

Step 1:

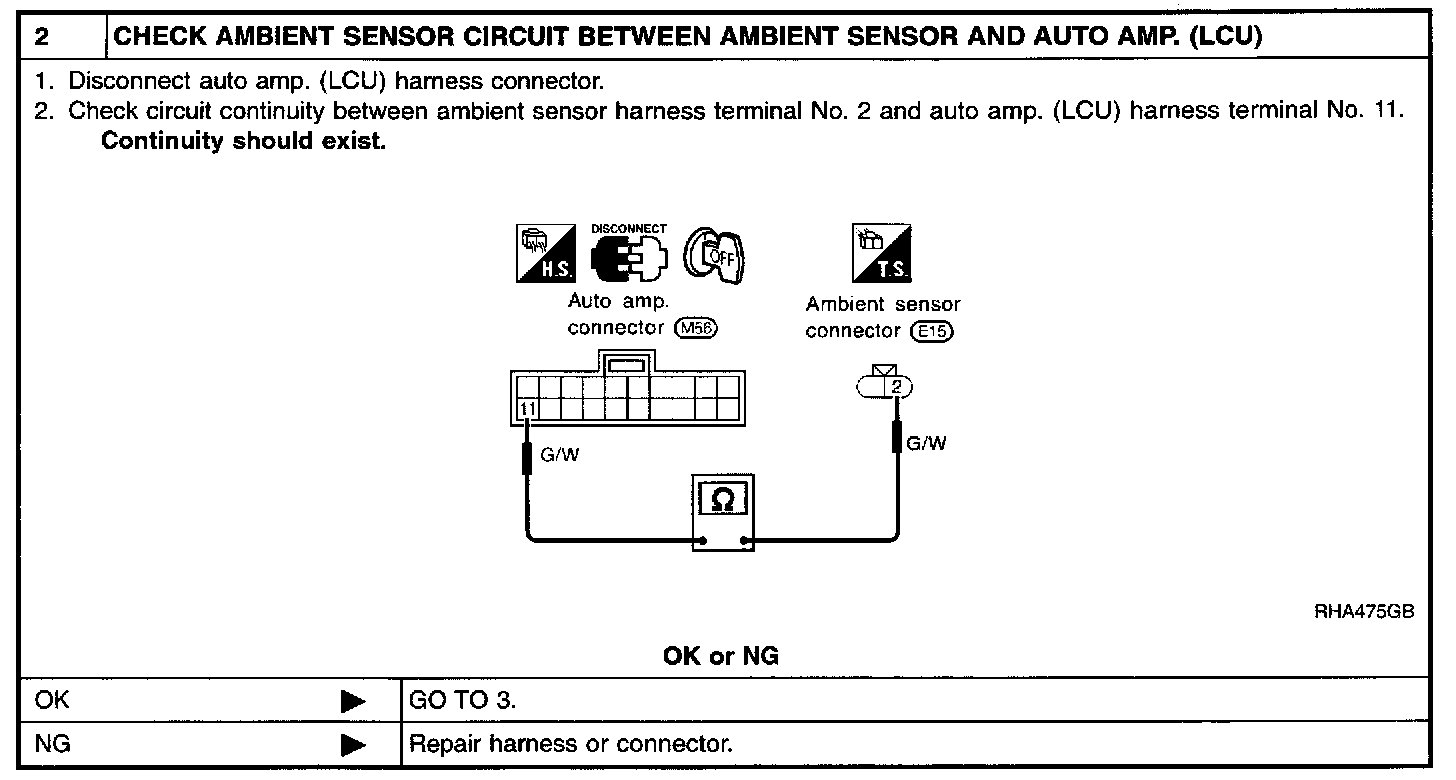

Step 2:

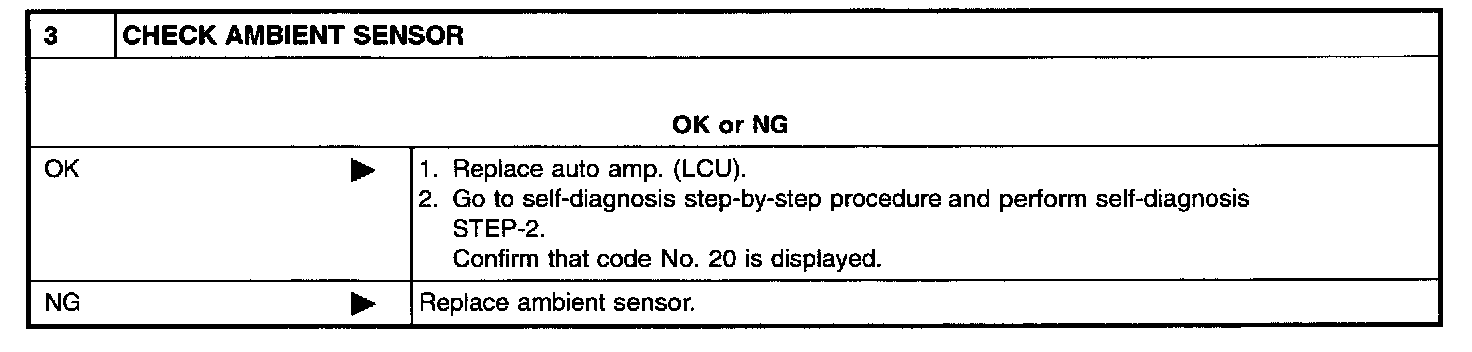

Step 3:

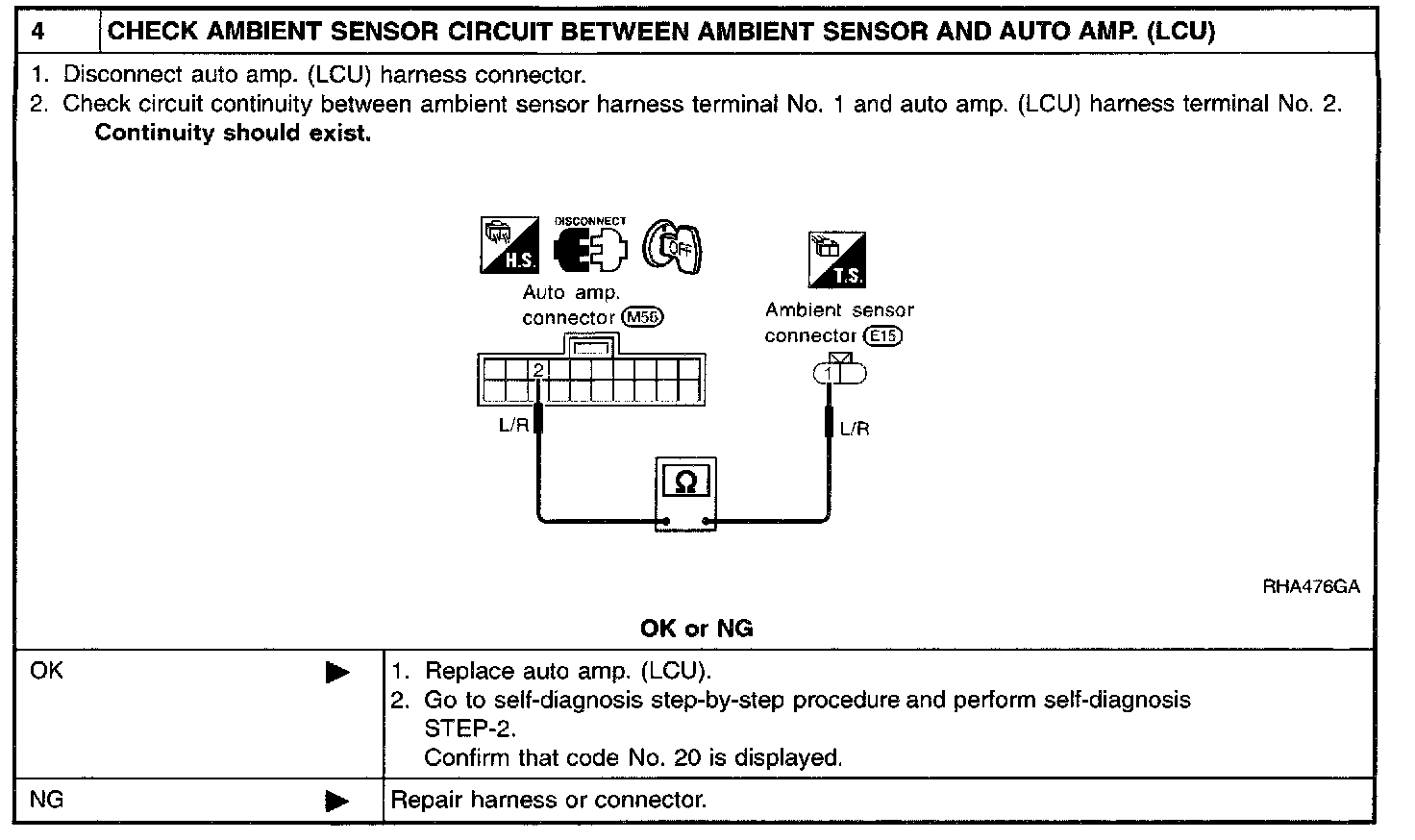

Step 4:




DIAGNOSTIC PROCEDURE

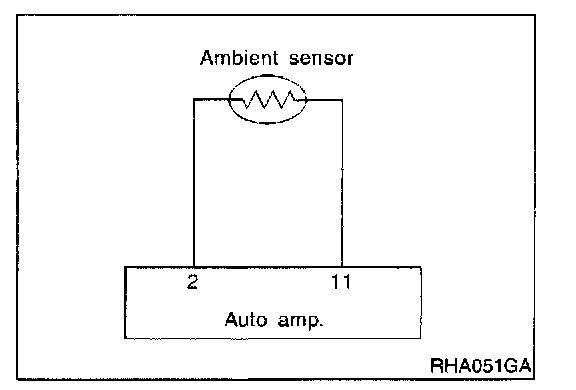

SYMPTOM: Ambient sensor circuit is open or shorted. 21 or -21 is indicated on auto amp. as a result of conducting Self-diagnosis STEP 2.)

ELECTRICAL COMPONENT INSPECTION

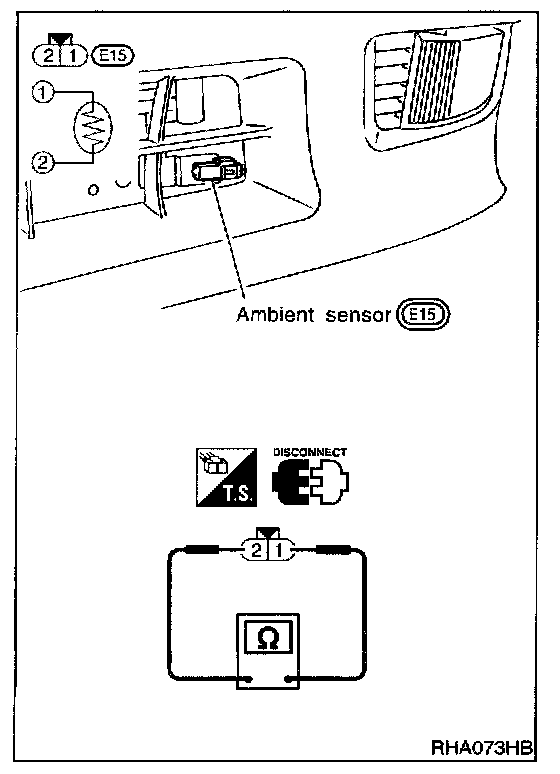

Ambient Sensor
After disconnecting ambient sensor harness connector, measure resistance between terminals 2 and 1 at sensor harness side, using the table.

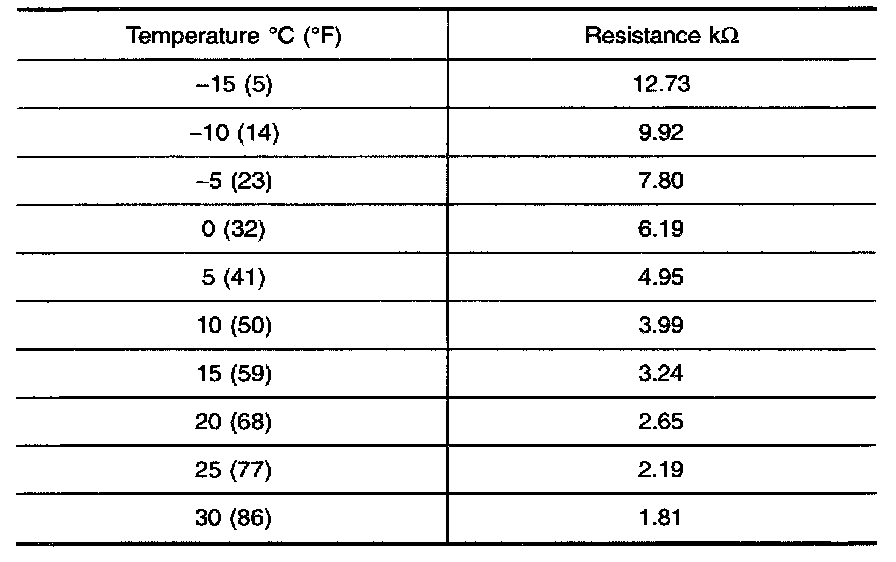

Part 1 Of 2:

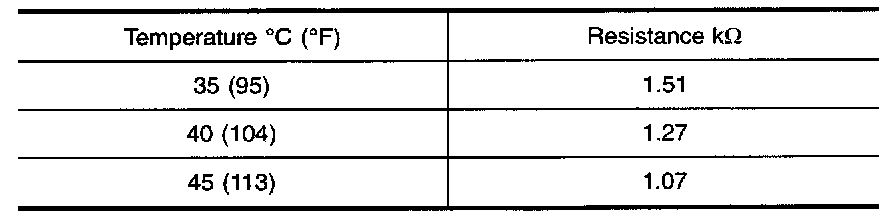

Part 2 Of 2:




If NG, replace Ambient Sensor.
