In-Vehicle Sensor
Step 1:

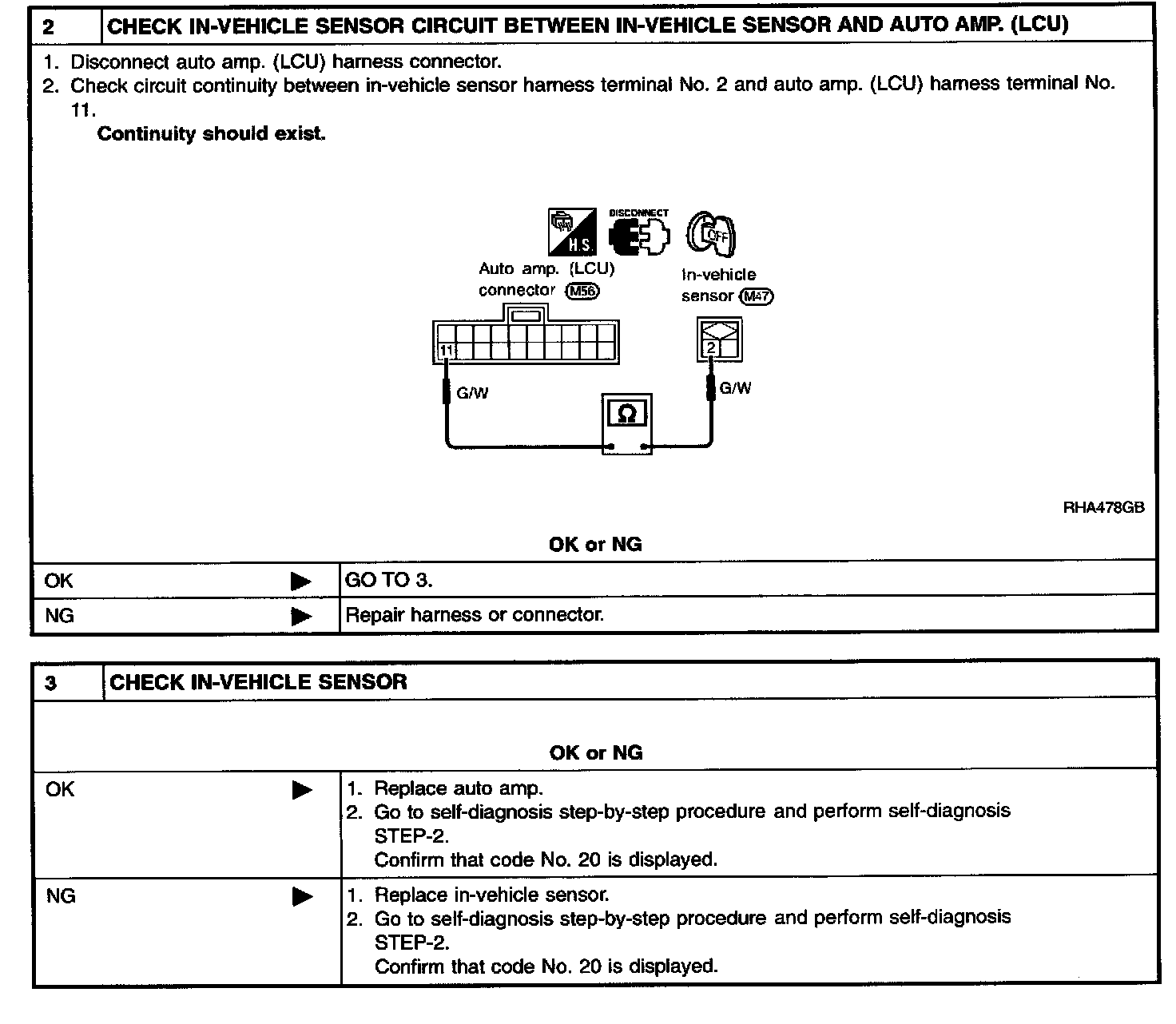

Steps 2 - 3:

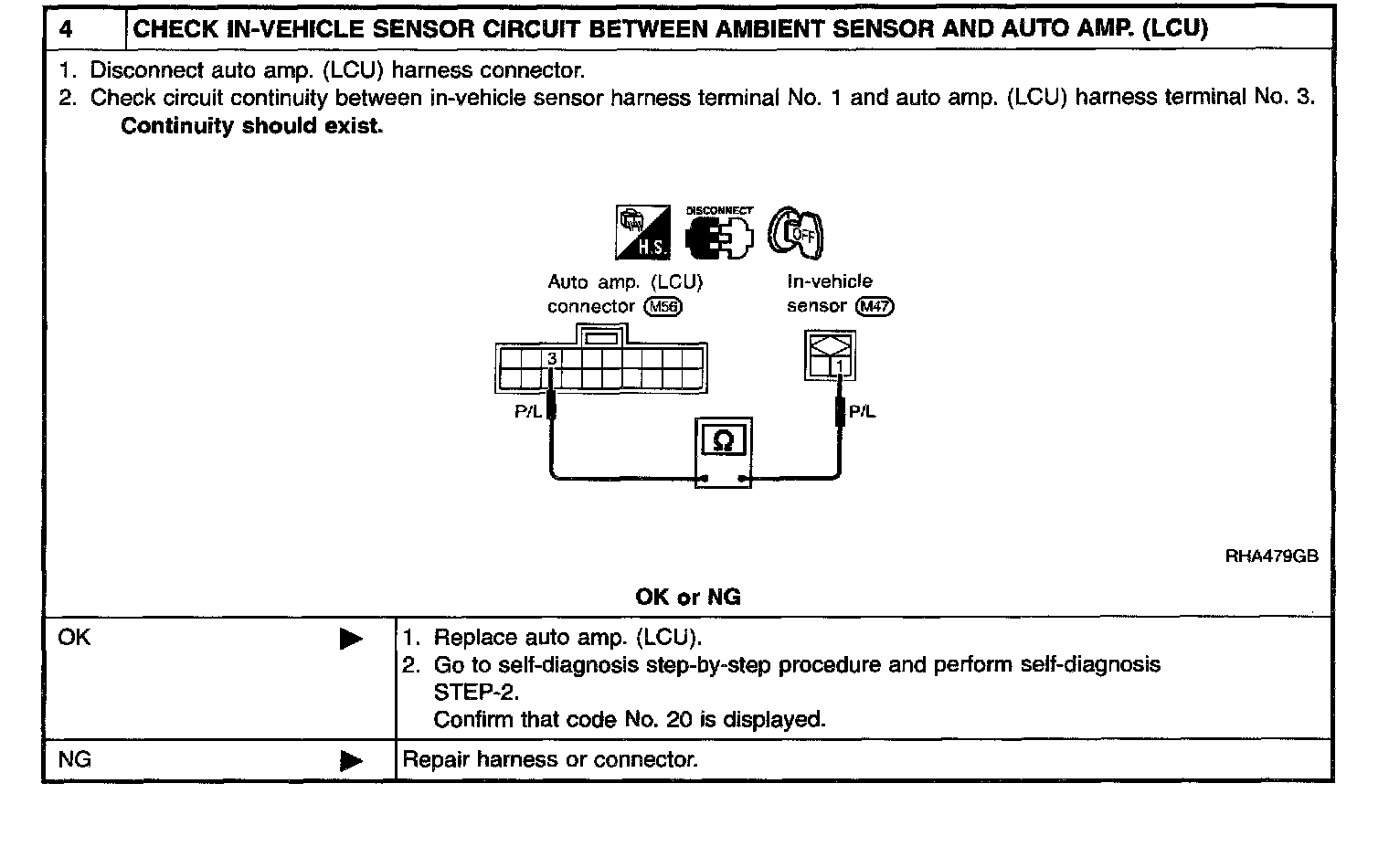

Step 4:
DIAGNOSIS PROCEDURESYMPTOM: In-vehicle sensor circuit is open or shorted. (22 or -22 is indicated on auto amp. as a result of conducting Self-diagnosis STEP 2.)

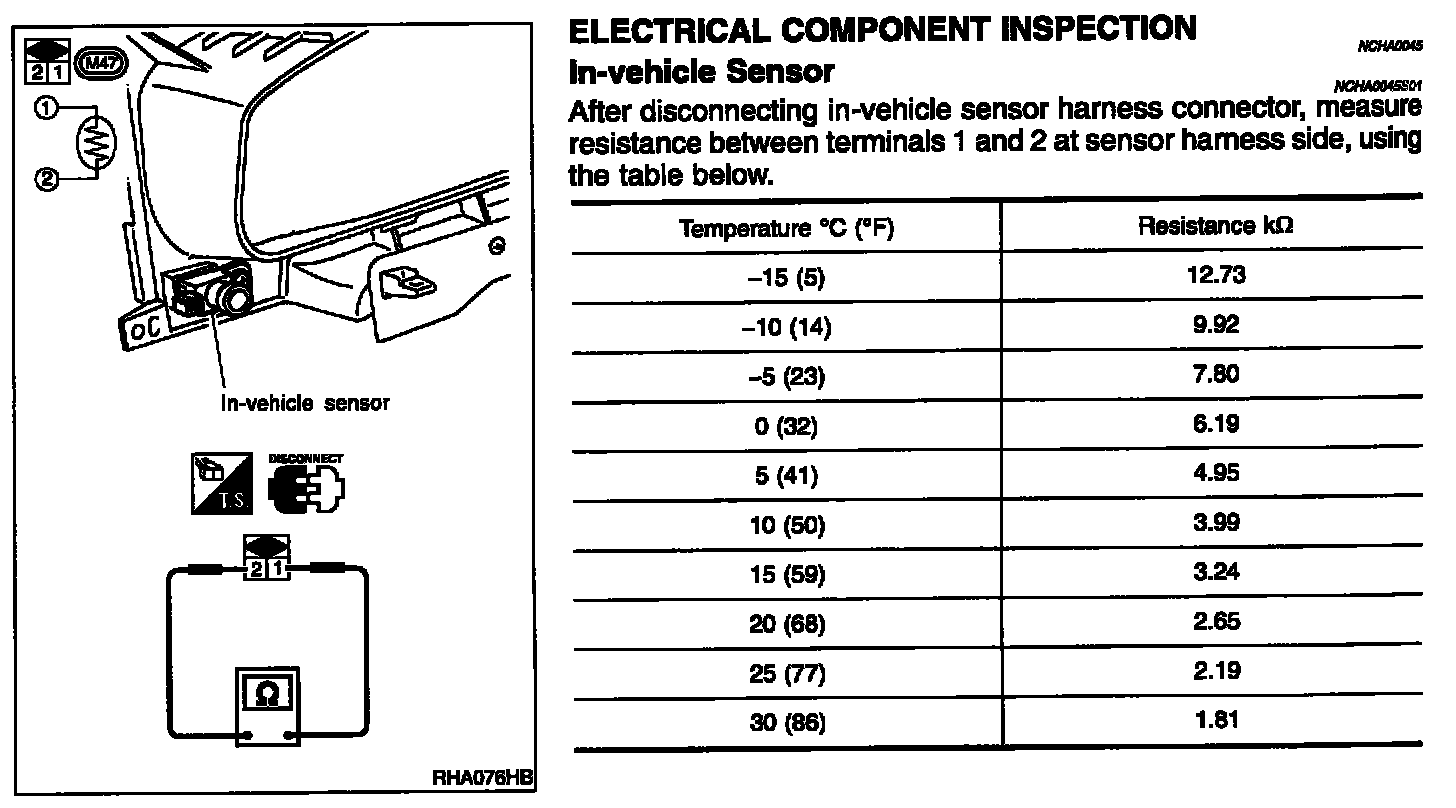

Component Inspection:
ELECTRICAL COMPONENT INSPECTION
