Steering Gear: Testing and Inspection

Checking Gear Housing Movement

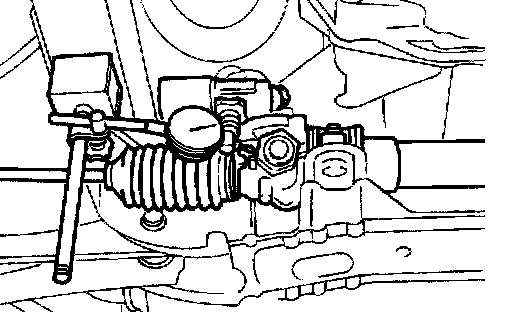

1. Check the movement of steering gear housing during stationary steering on a dry paved surface
- Apply a force of 49 N (5 kg, 11 lb.) to steering wheel to check the gear housing movement.
Turn off ignition key while checking.
Movement of gear housing: ±2 mm (±0.08 inch) or less
2. If movement exceeds the limit, replace mount insulator after confirming proper installation of gear housing clamps.
