Electrical Load Signal

EC-LOAD-01:

EC-LOAD-01 Connector View:

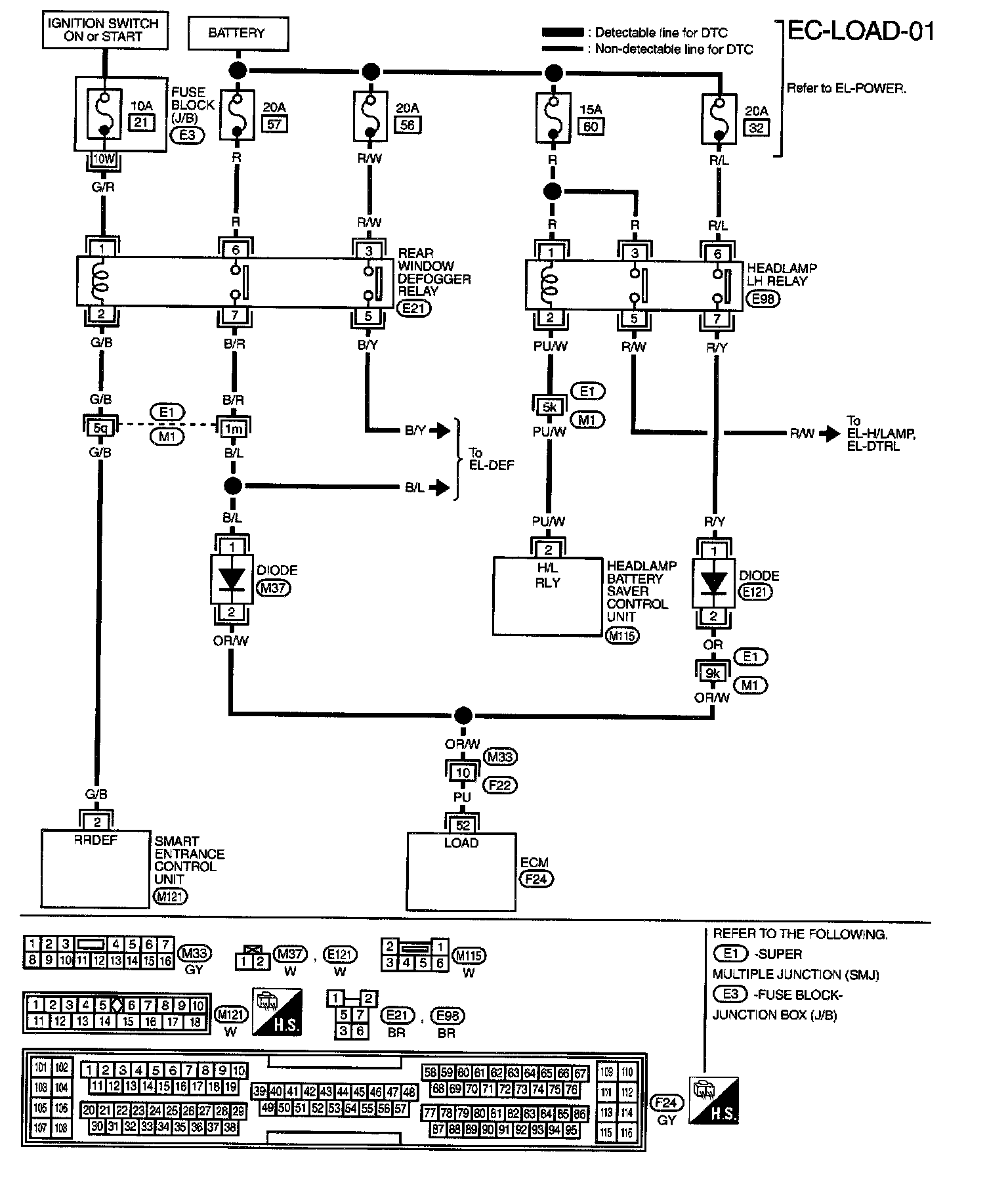

WIRING DIAGRAM

Super Multiple Junction (SMJ) - Terminal Arrangement:

Fuse Block - Junction Block (J/B) - Terminal Arrangement:

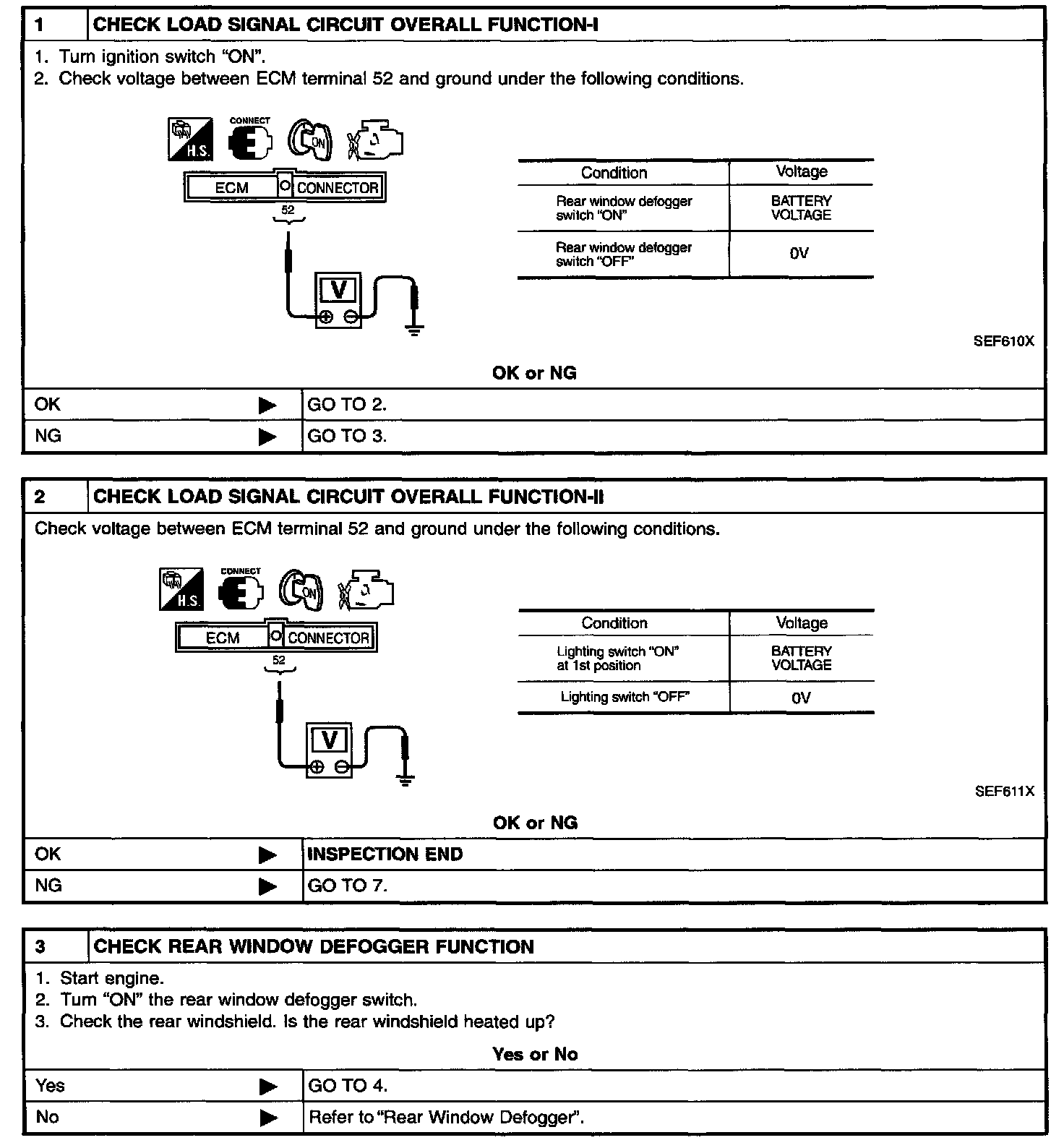

Steps 1 - 3:

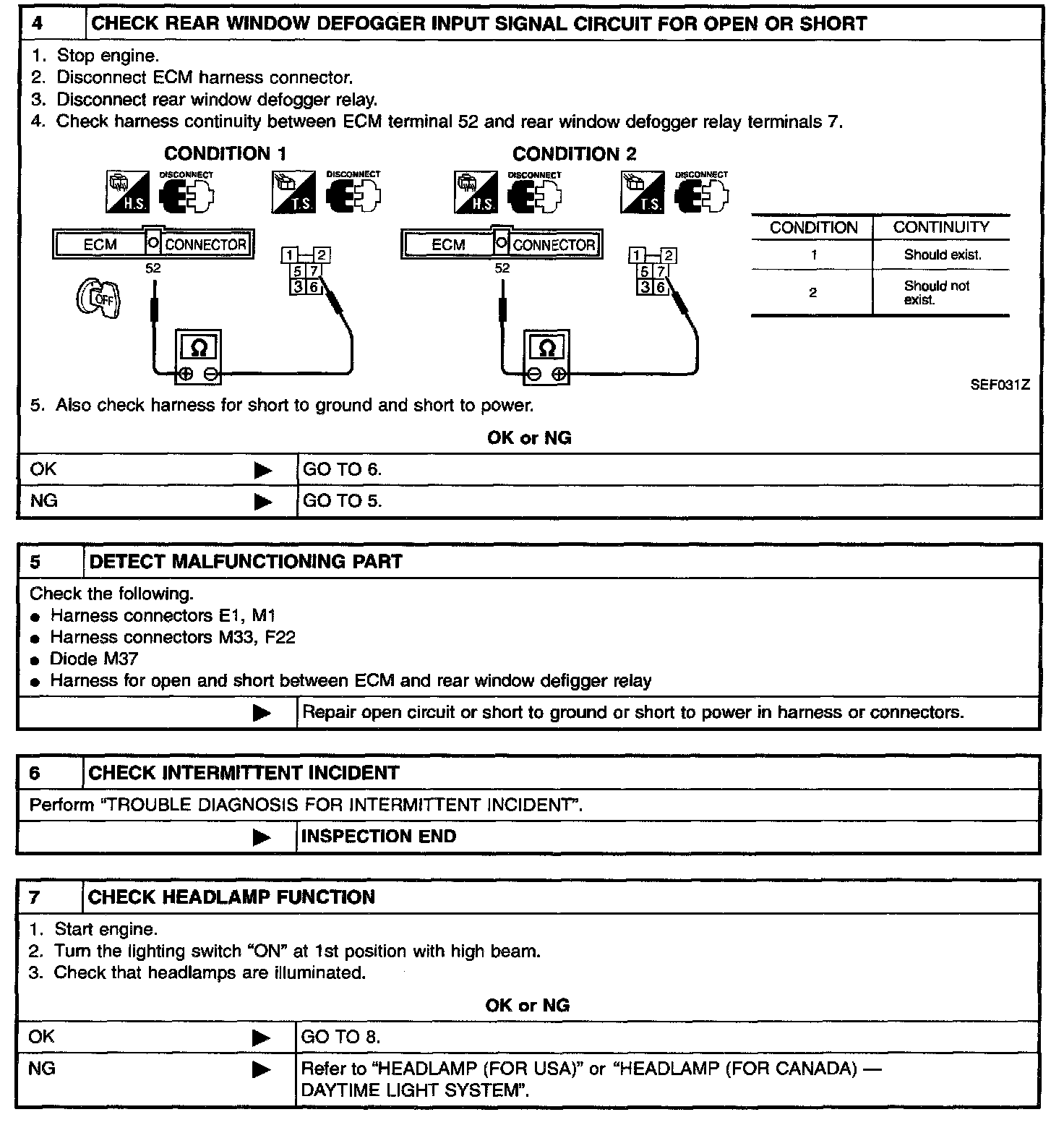

Steps 4 - 7:

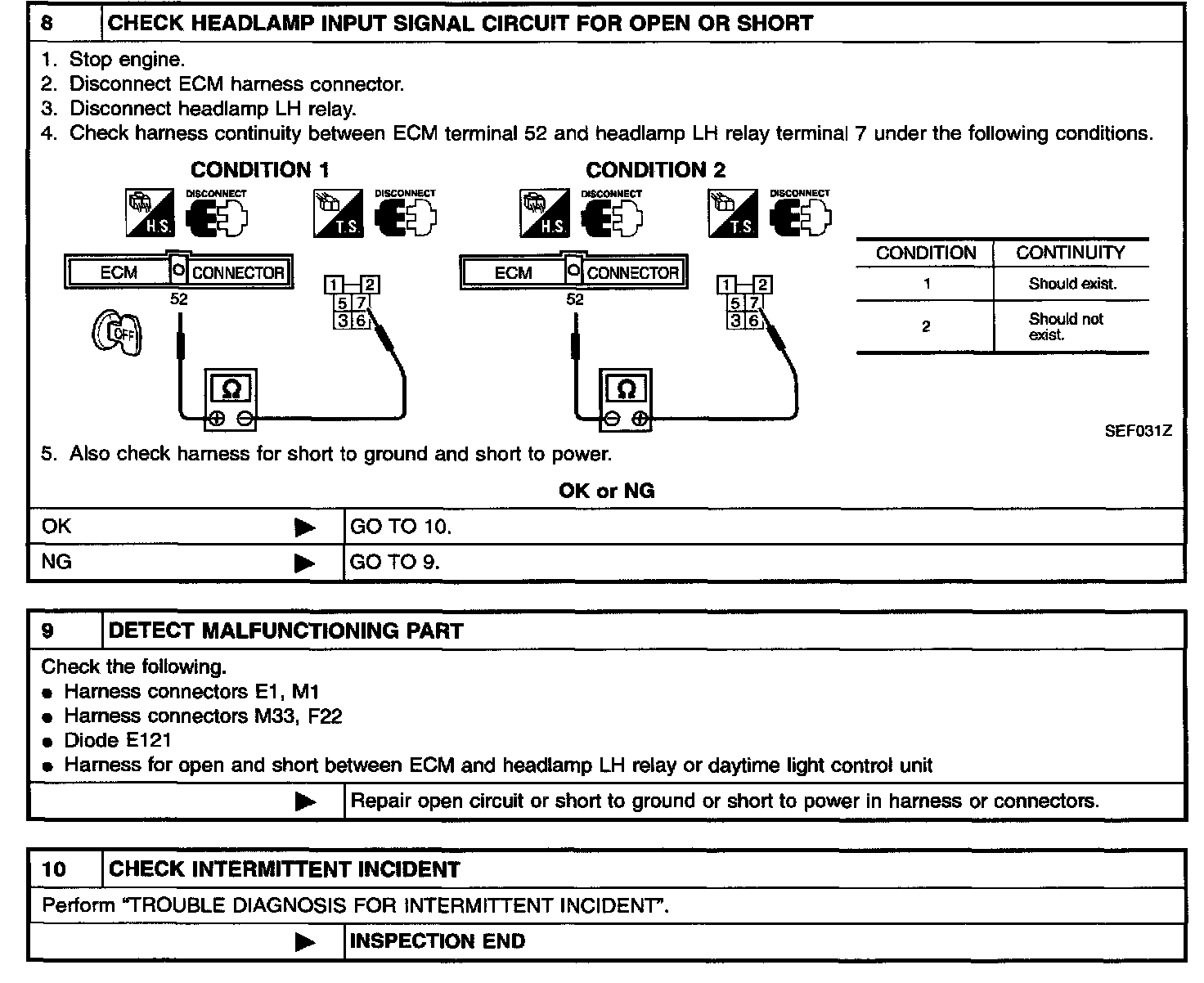

Steps 8 - 10:

DIAGNOSTIC PROCEDURE
