Start Signal Circuit

Consult-II Reference Value In Data Monitor Mode:

ECM Terminals And Reference Value:

EC-S/SIG-01:

EC-S/SIG-01 Connector View:

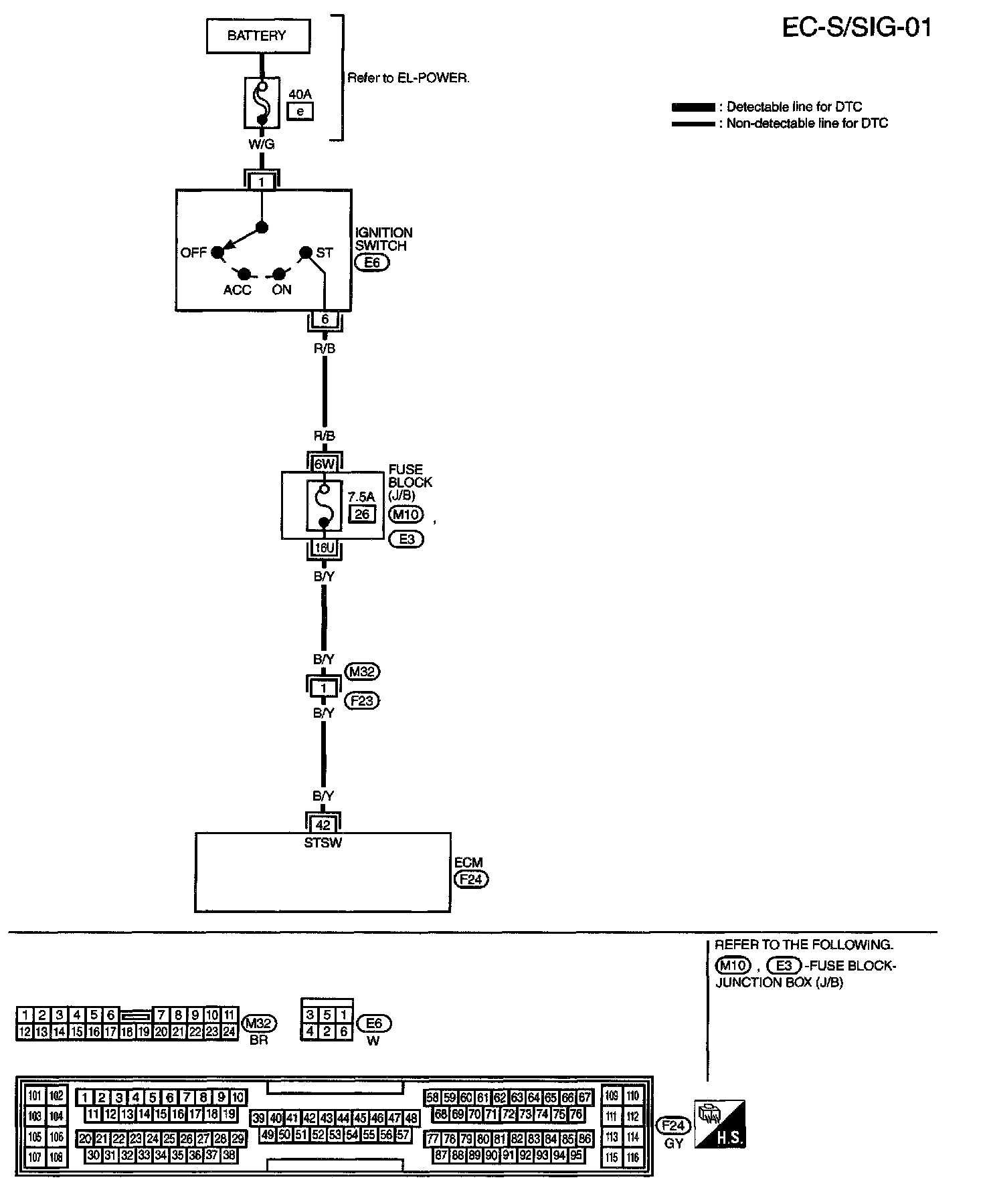

Wiring Diagram

Fuse Block - Junction Block (J/B) - Terminal Arrangement:

Steps 1 - 4:

Steps 5 - 8:

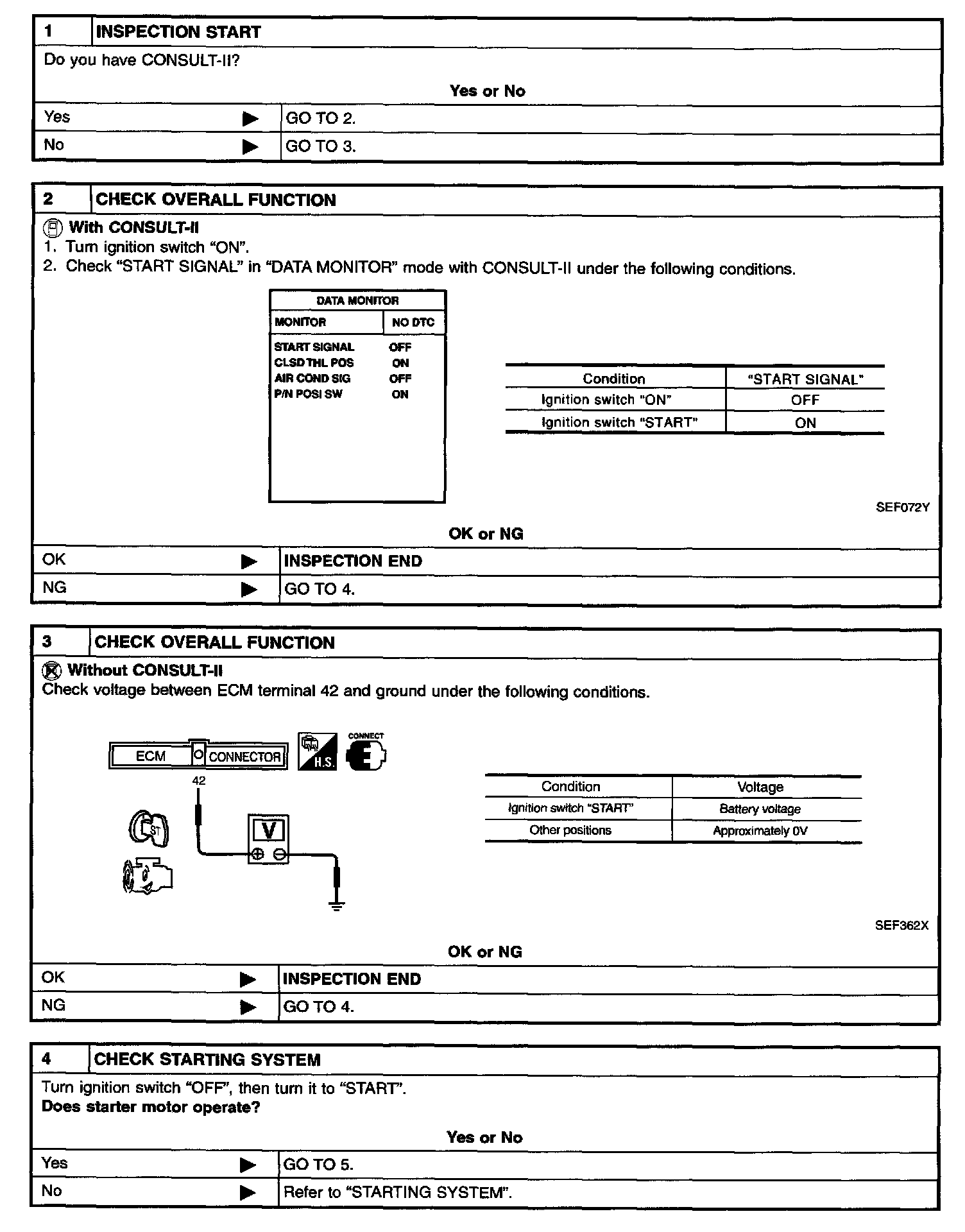

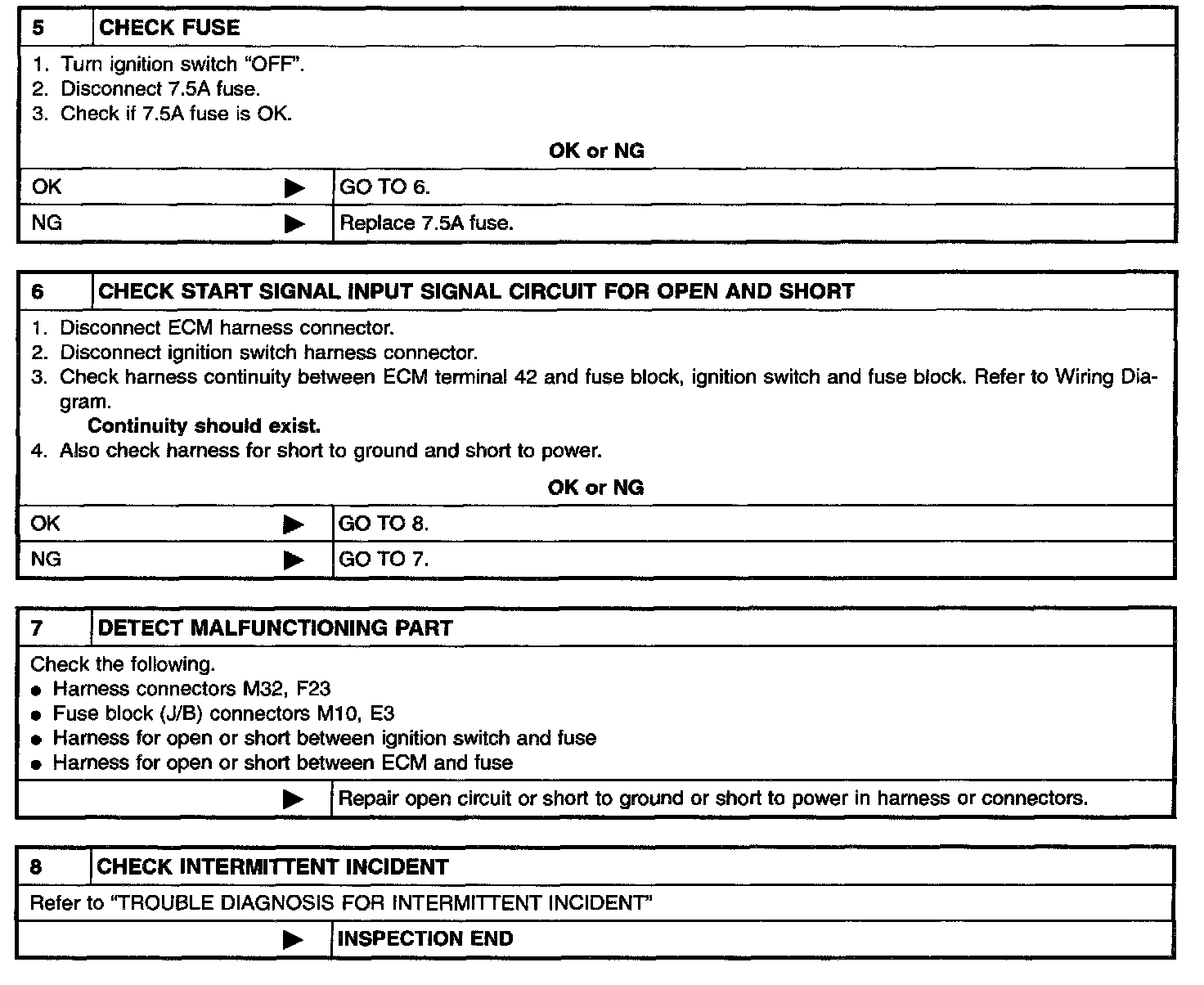

Diagnostic Procedure
