Timing Inspection
Any of following two methods may be used.
-
Method A a.

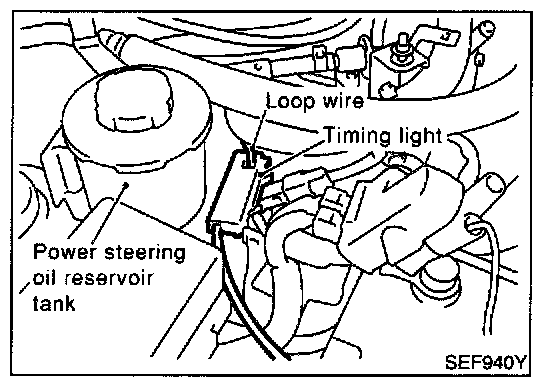

Attach timing light to loop wire as shown.
b.
Check
ignition timing.
-
Method B a.

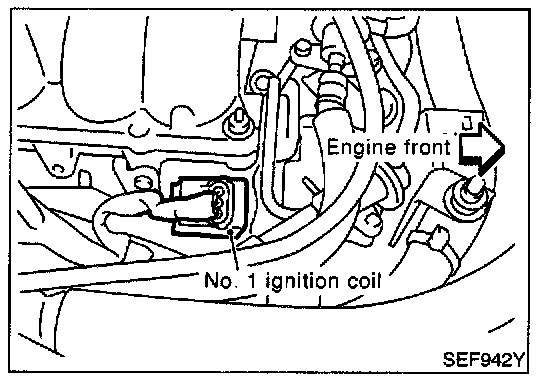

Remove No.1 ignition coil.
b.

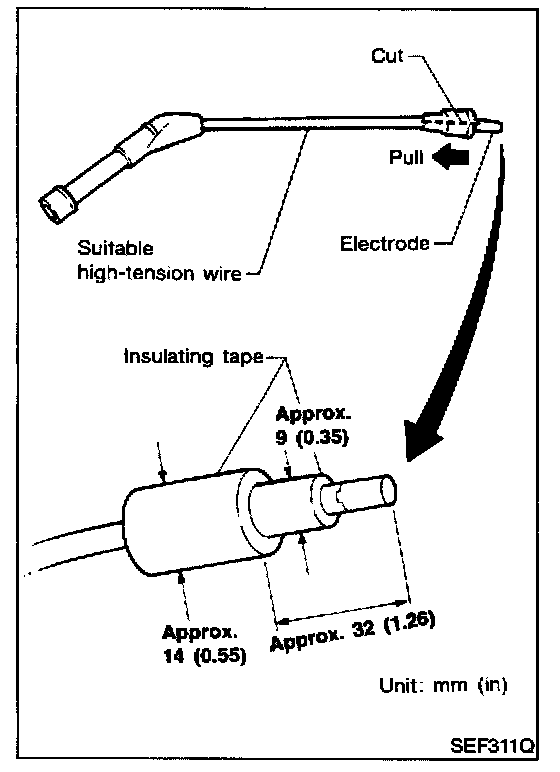

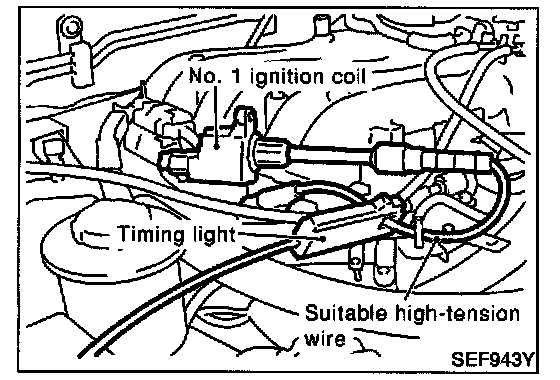

Connect No.1 ignition coil and No.1
spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
c.
Check
ignition timing.
