Tightening Specifications

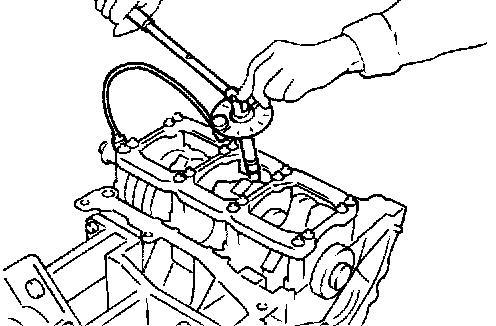

Tighten connecting rod cap bolts to the specified torque. Connecting rod cap bolt:
(1) Tighten nuts to 19 to 21 Nm (1.9 to 2.1 kg-m, 14 to 15 ft. lbs.).
(2) Turn nuts 90 to 95 degrees clockwise with angle wrench.
