CONSULT-II Test Mode Function

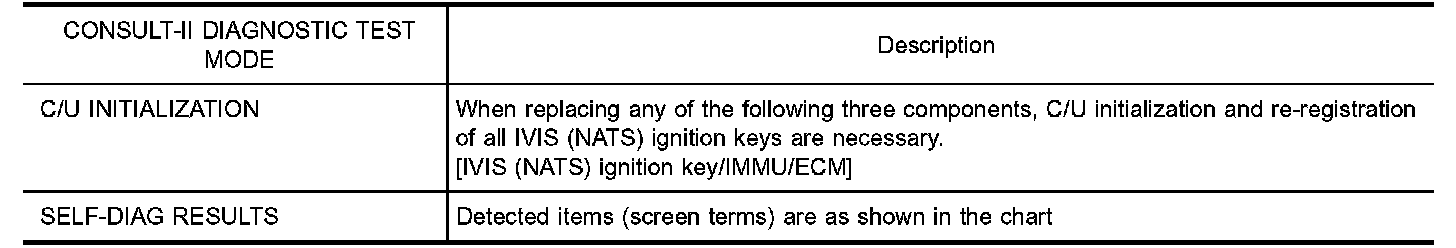

Consult-II Diagnostic Test Mode Function:

NOTE:
- When any initialization is performed, all IDs previously registered will be erased and all IVIS (NATS) ignition keys must be registered again.
- The engine cannot be started with an unregistered key. In this case, the system will show "DIFFERENCE OF KEY" or "LOCK MODE" as a self-diagnostic result on the CONSULT-II screen.
- "CHAIN OF ECM-IMMU" might be stored as a self-diagnostic result during the key registration procedure, even if the system is not malfunctioning.
