Multiple Junction Connector: Service and Repair

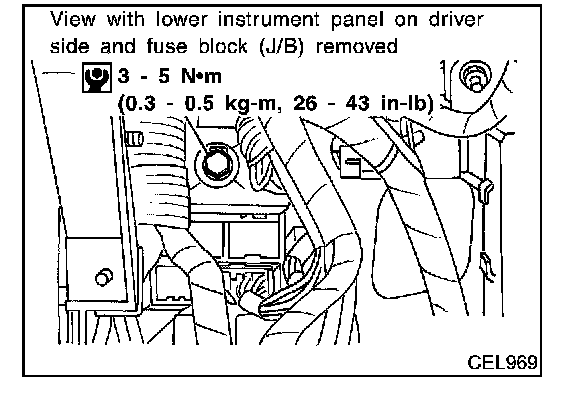

InstallationTo install SMJ, tighten bolts until orange "fulltight" mark appears and then retighten to specified torque as required.
Tightening Torque :
3 - 5 N.m (0.3 - 0.5 kg-m, 26 - 43 in-lb)CAUTION: Do not overtighten bolts, otherwise, they may be damaged.
