Power Supply Testing

EC-MAIN-01:

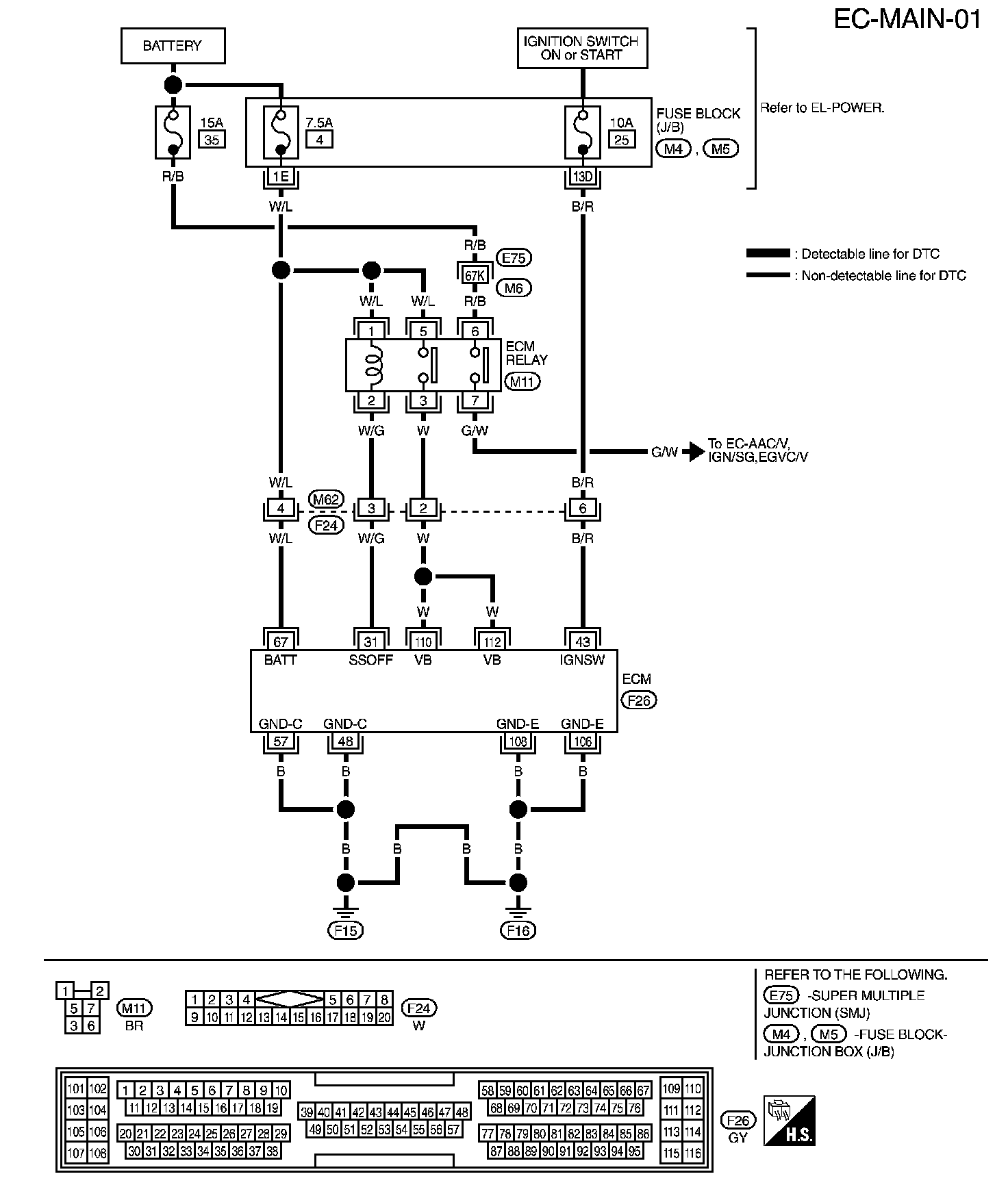

Main Power Supply and Ground Circuit

ECM Terminals And Reference Value:

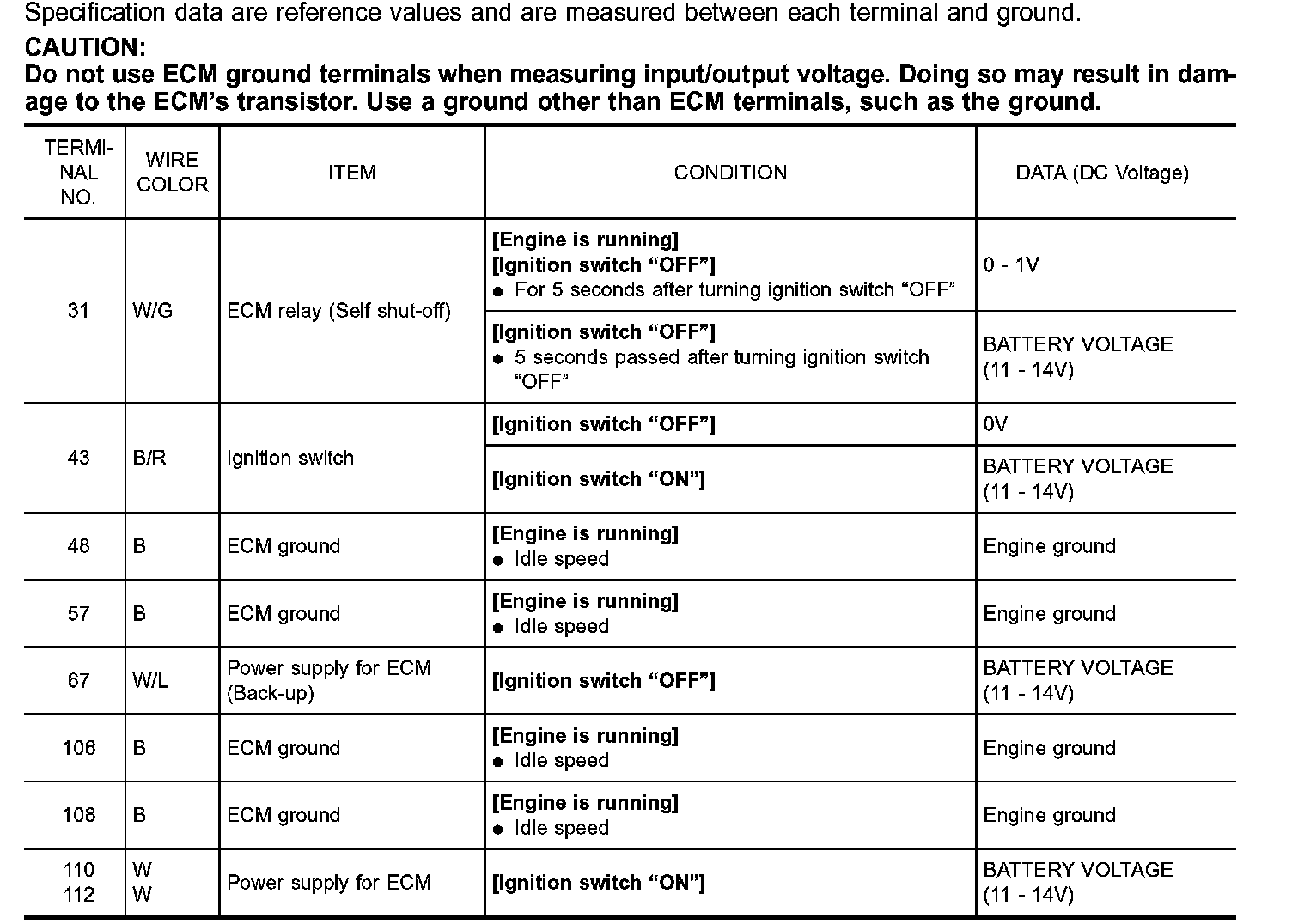

ECM Terminals And Reference Value

Step 1:

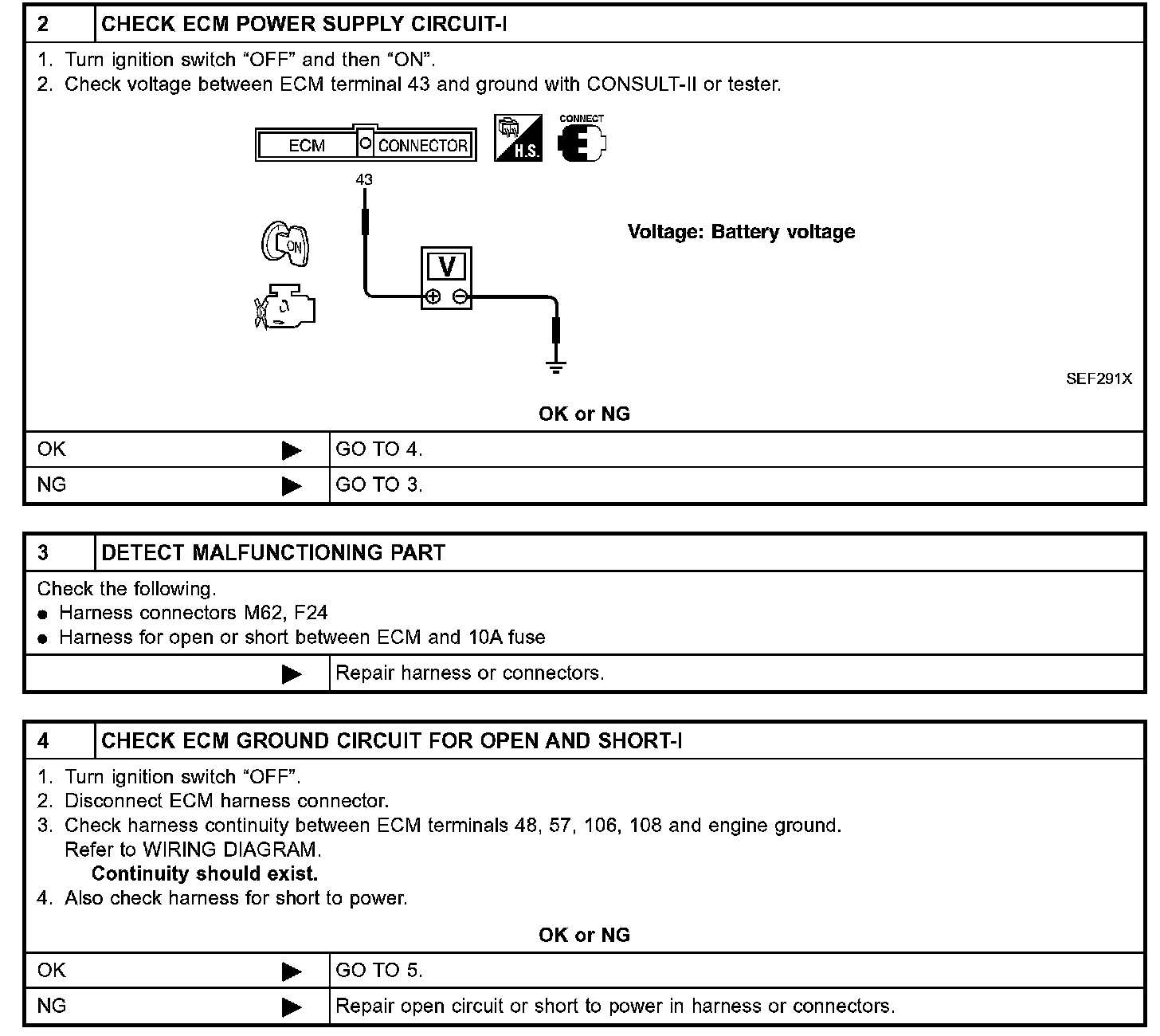

Step 2 - 4:

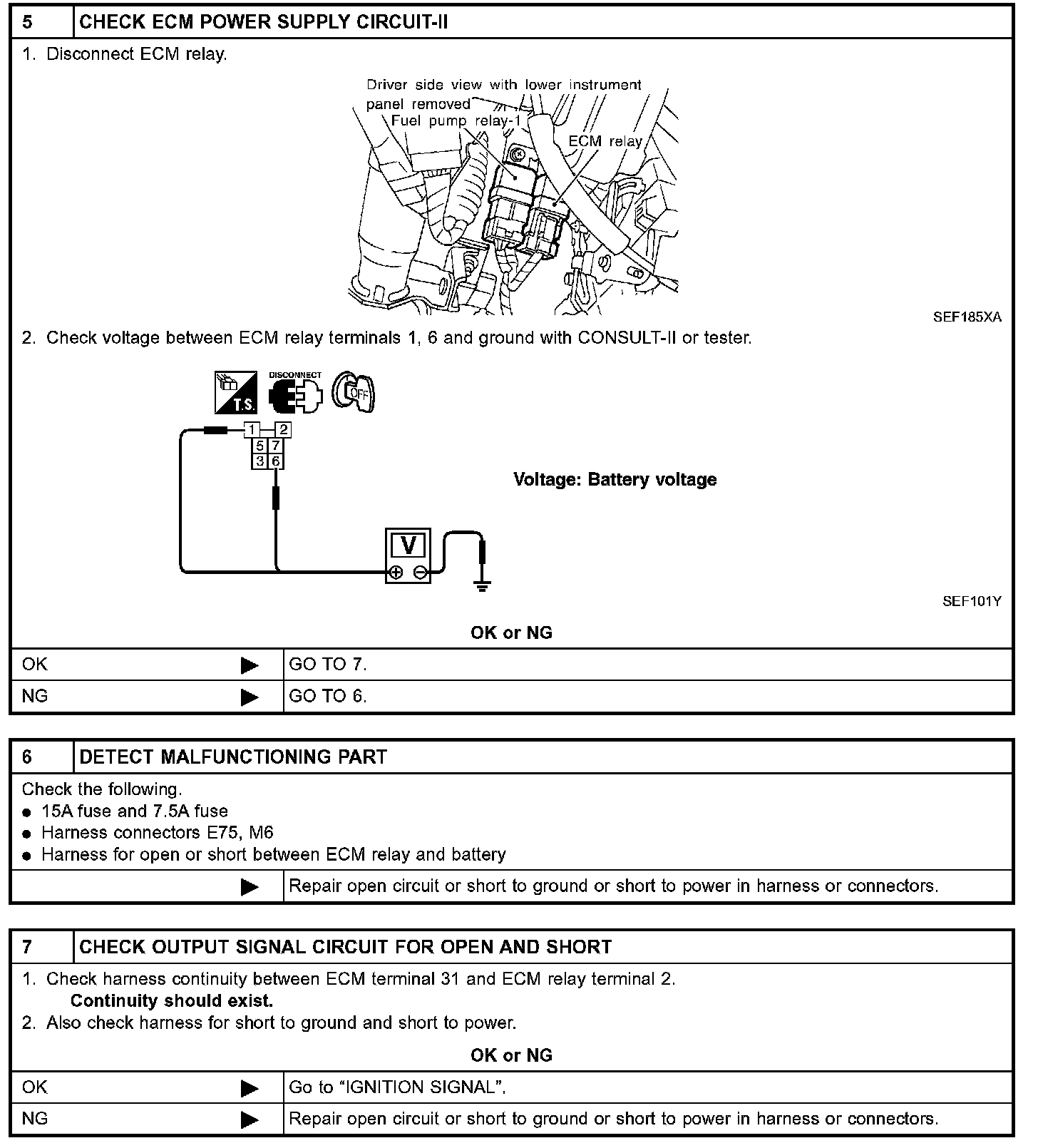

Step 5 - 7:

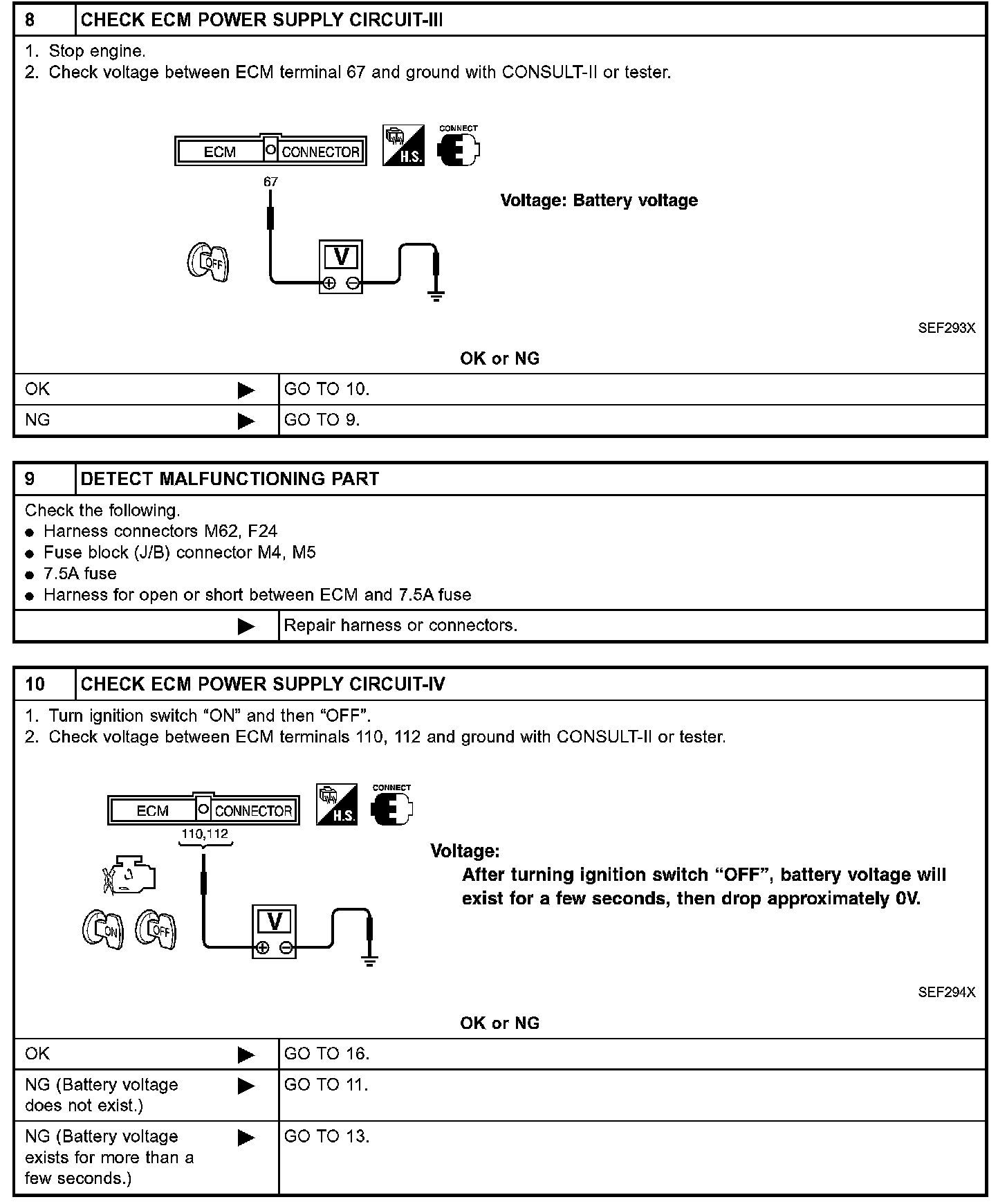

Step 8 - 10:

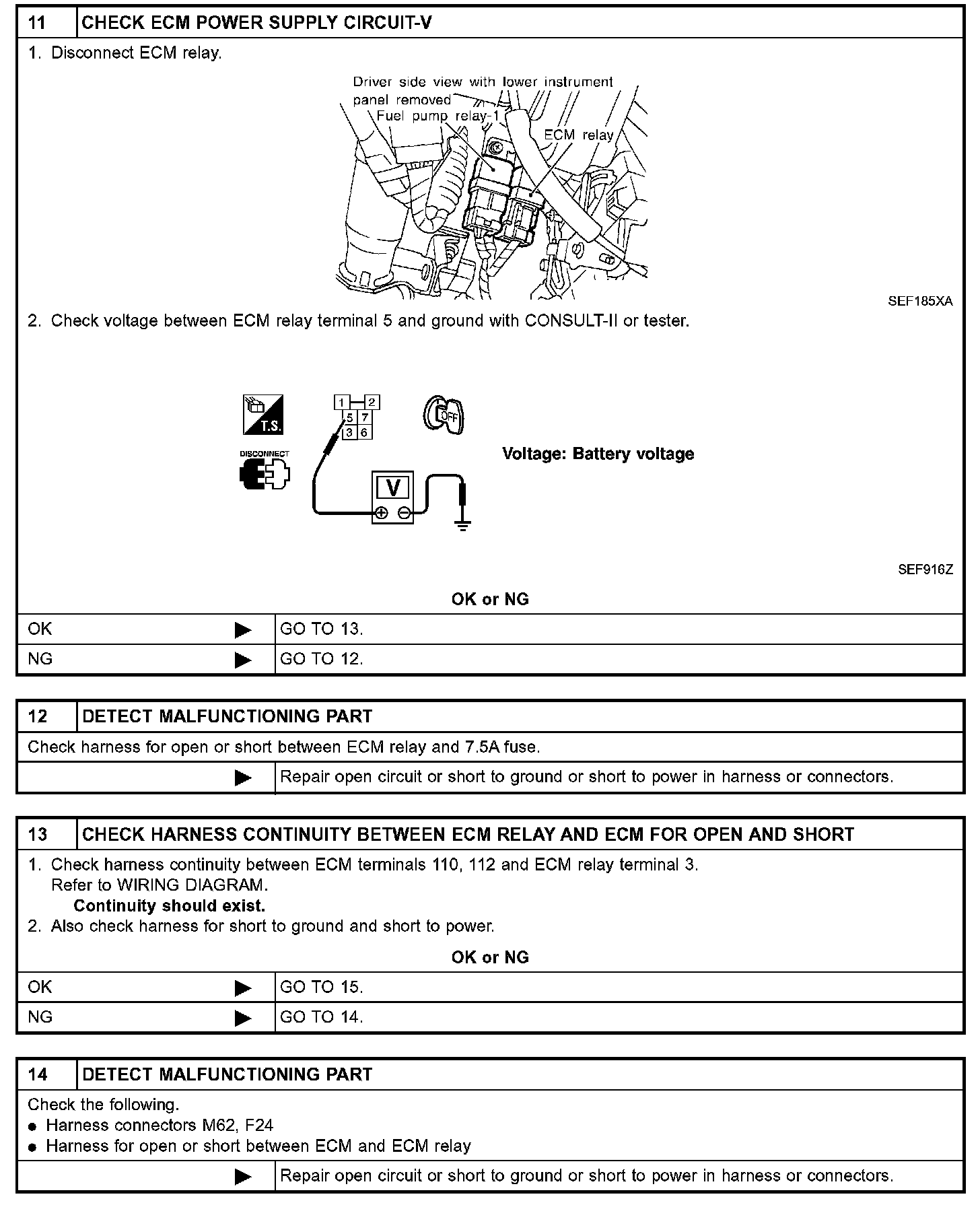

Step 11 - 14:

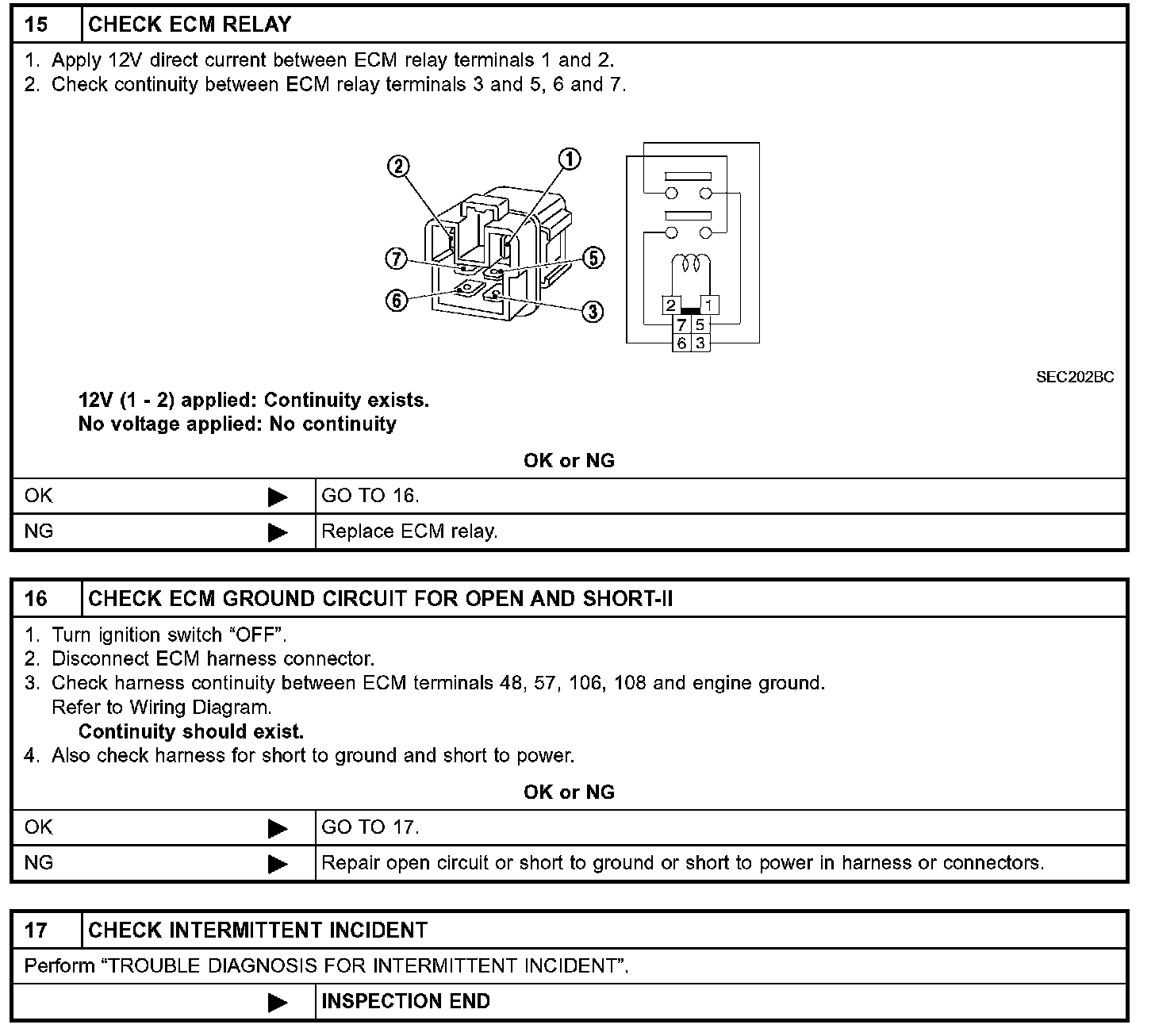

Step 15 - 17:




DIAGNOSTIC PROCEDURE
