System Specifications

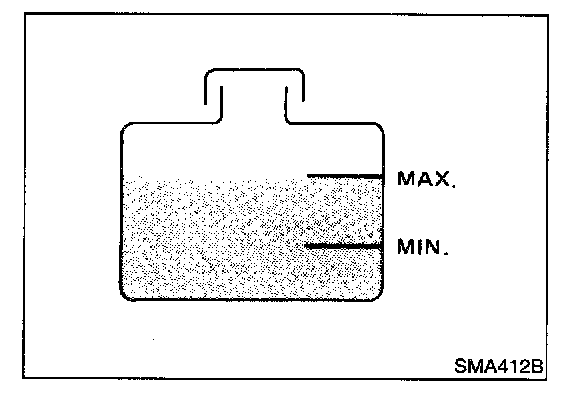

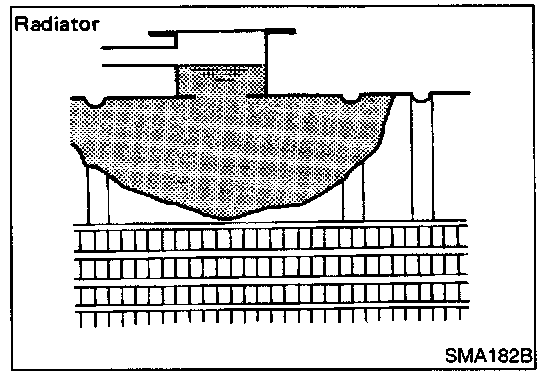

Fill radiator and reservoir tank to specified level.

Use genuine Nissan anti-freeze coolant or equivalent mixed with water (distilled or demineralized).

Coolant Capacity (Without Reservoir Tank):
M/T .......................6.1 l (6-1/2 US qt, 5-3/8 Imp qt)
A/T ........................6.0 l (6-3/8 US qt, 5-1/4 Imp qt)

Reservoir Tank Capacity (for MAX level)......................................0.7 l (3/4 US qt, 5/8 Imp qt)
