Oil Pan Torque & Sequence
OIL PAN:

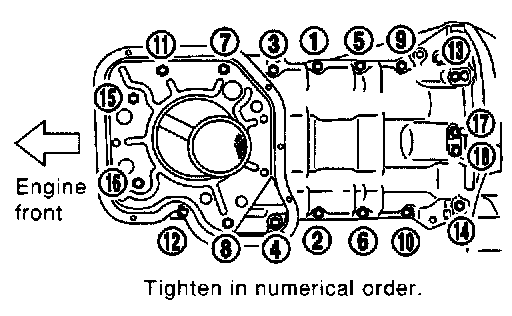

Aluminum Oil PanTighten nuts and bolts in numerical order.
Bolts 1 - 16:
.............................16 - 19 Nm (1.6 - 1.9 kg-m, 12 - 14 ft. lbs.) Bolts 17, 18:

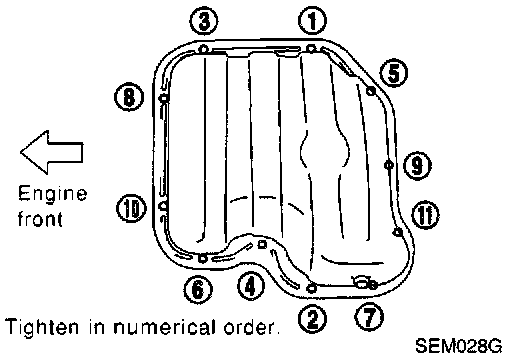

.............................6.4 - 7.5 Nm (0.65 - 0.76 kg-m, 56.4 - 66.0 inch lbs.)Steel Oil Pan Bolts:
.............................6.4 - 7.5 Nm (0.65 - 0.76 kg-m, 56.4 - 66.0 inch lbs.)
