Rocker Cover Torque & Sequence







Rocker Cover:

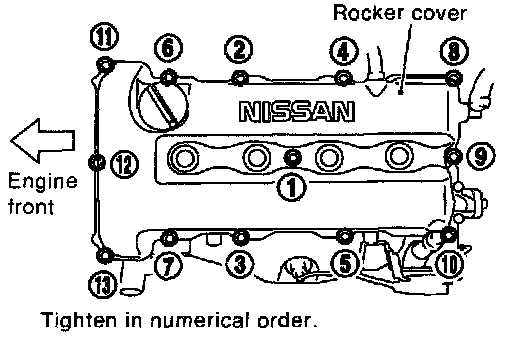

STEP 1:.......Tighten bolts 1 - 10 - 11 - 13 - 8 in that order.
STEP 2:.......Tighten bolts 1 - 13 in that order.

TORQUE.......8 - 10 Nm (0.8 - 1.0 kg-m, 69 - 87 inch lbs.)
