Timing Components
TIMING CHAIN:

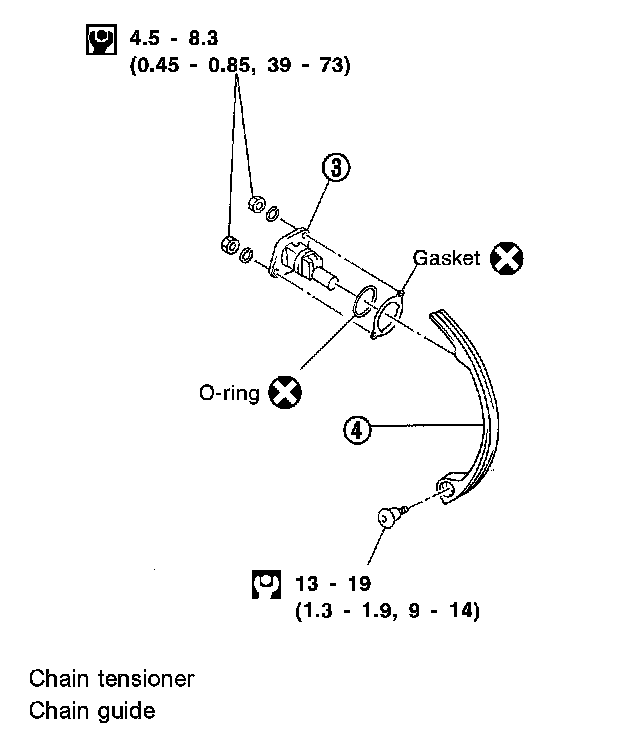

Timing Chain Tensioner & Guide:
Timing Chain Cover:
Camshaft Torque:............137 - 157 Nm (14.0 - 16.0 kg-m, 101 - 116 ft. lbs.)
Rocker Cover:
STEP 1:.......Tighten bolts 1 - 10 - 11 - 13 - 8 in that order.
STEP 2:.......Tighten bolts 1 - 13 in that order.
TORQUE.......8 - 10 Nm (0.8 - 1.0 kg-m, 69 - 87 inch lbs.)
