Control Unit Input/Output Signal Standard

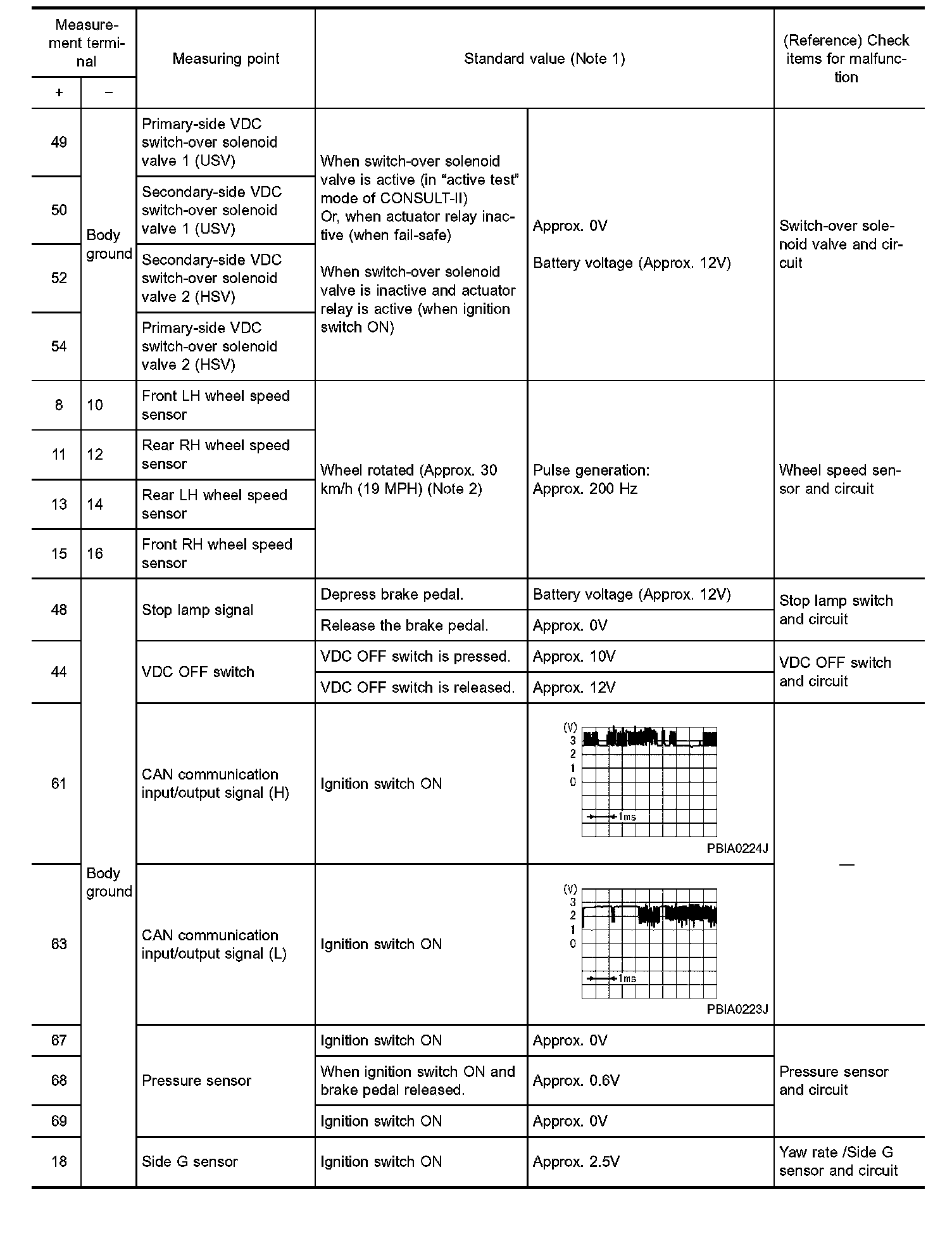

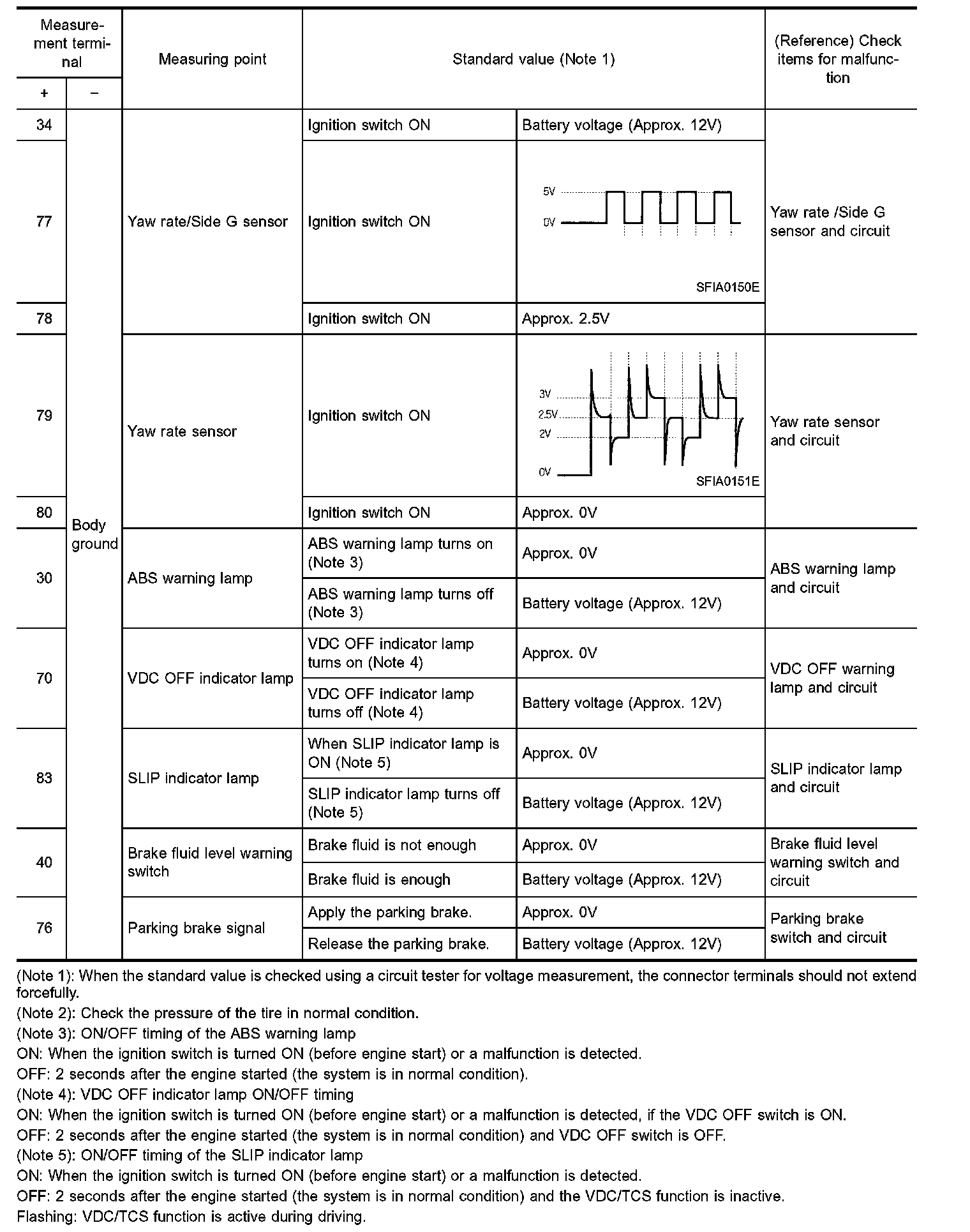

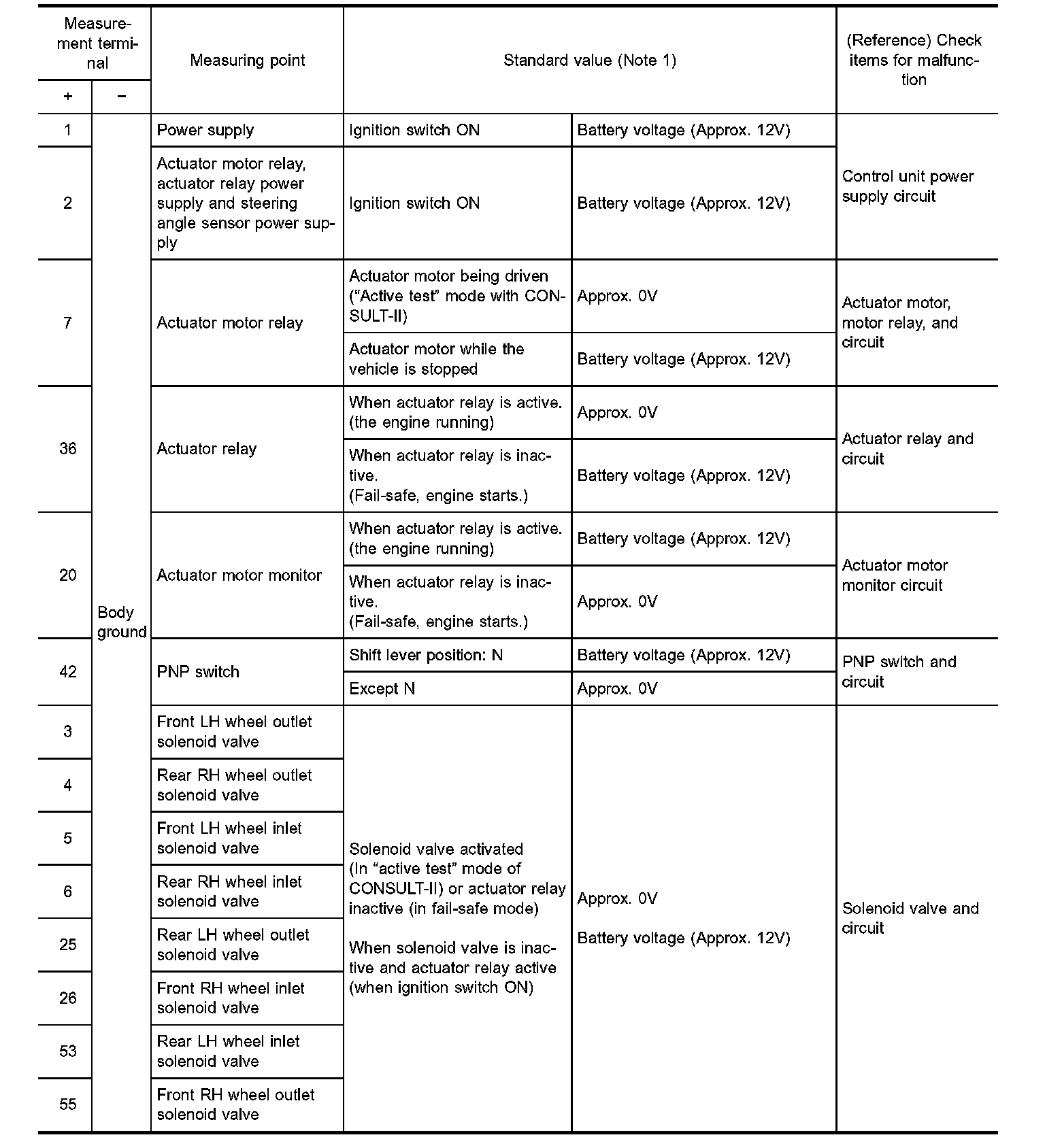

STANDARDS USING A CIRCUIT TESTER AND OSCILLOSCOPE CAUTION: Connect the connectors for the VDC/TCS/ABS control unit and actuator, and turn the ignition switch ON.

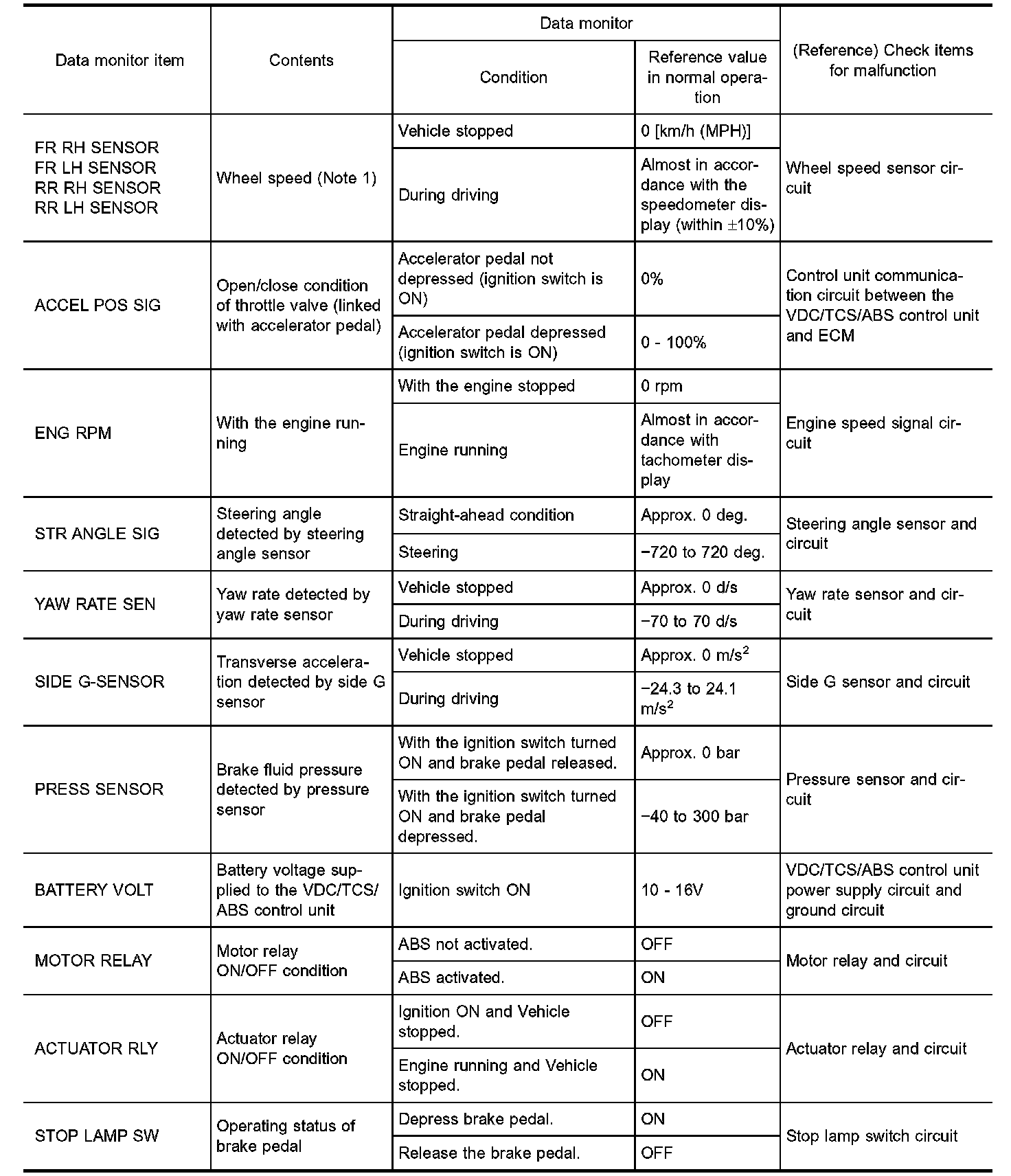

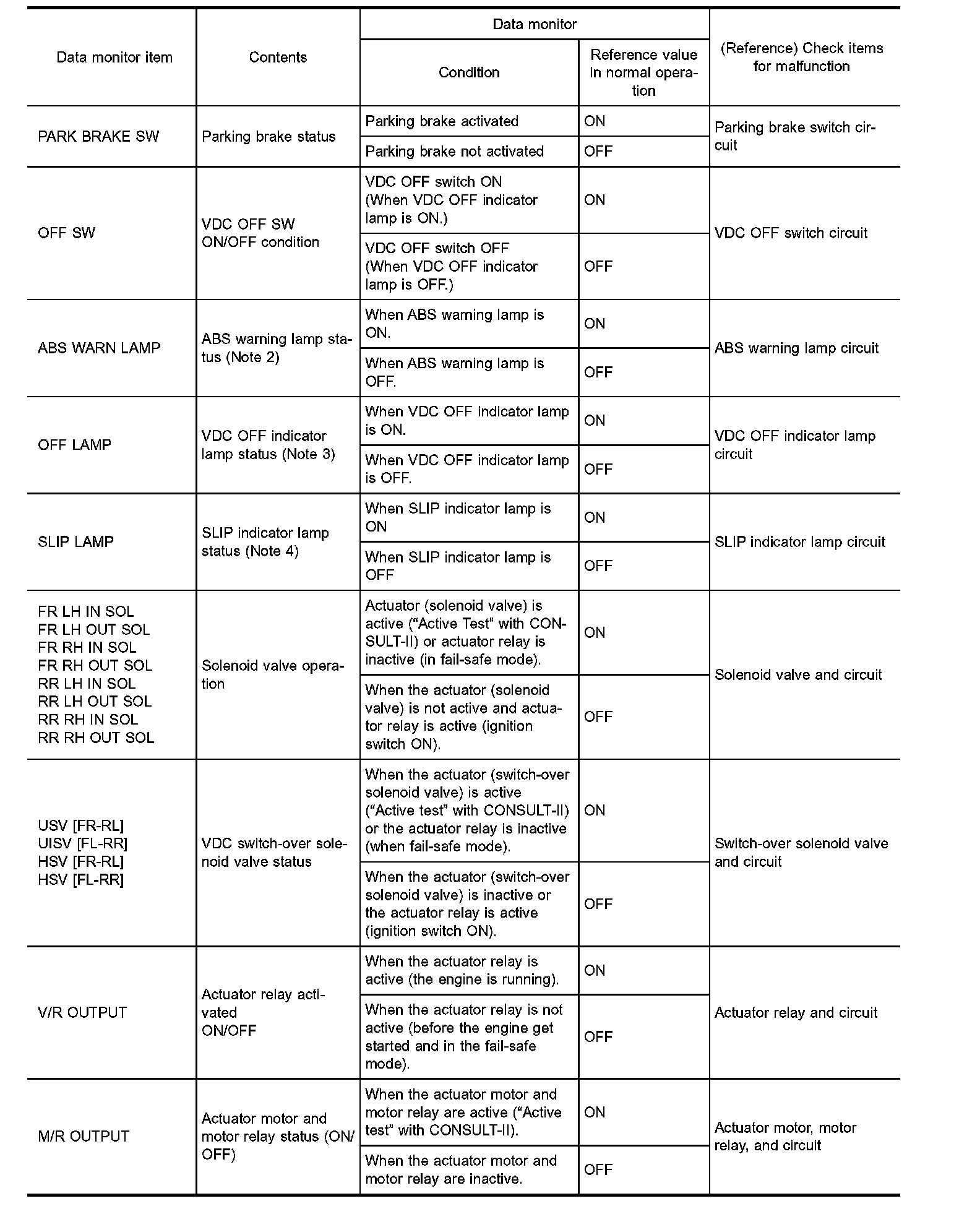

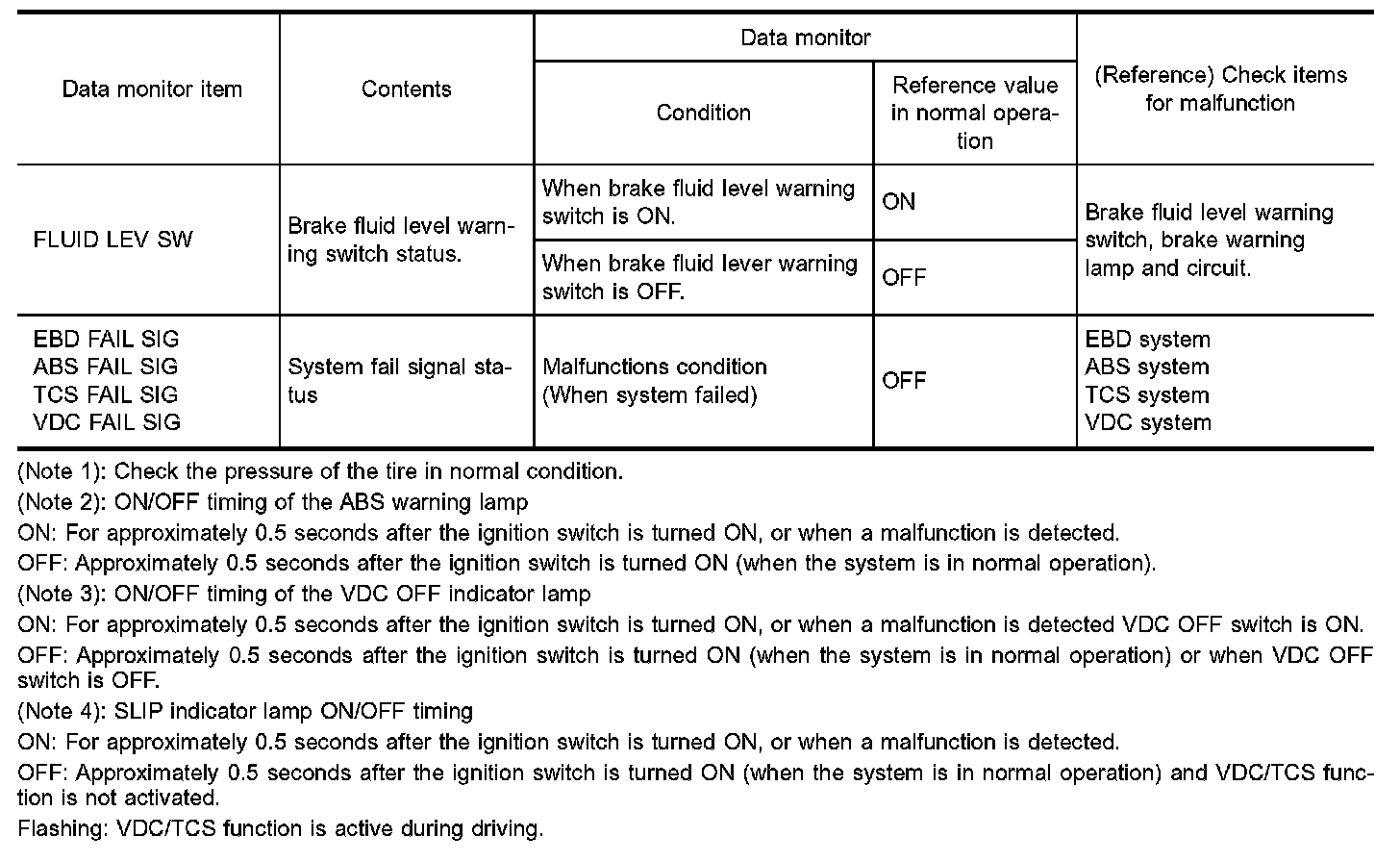

STANDARDS WITH CONSULT-II CAUTION: The displayed item is the data calculated by the control unit, so it may indicate a normal value even if an output circuit (harness) is open or shorted.
