Inspection

CAN Communication / For TCS Models

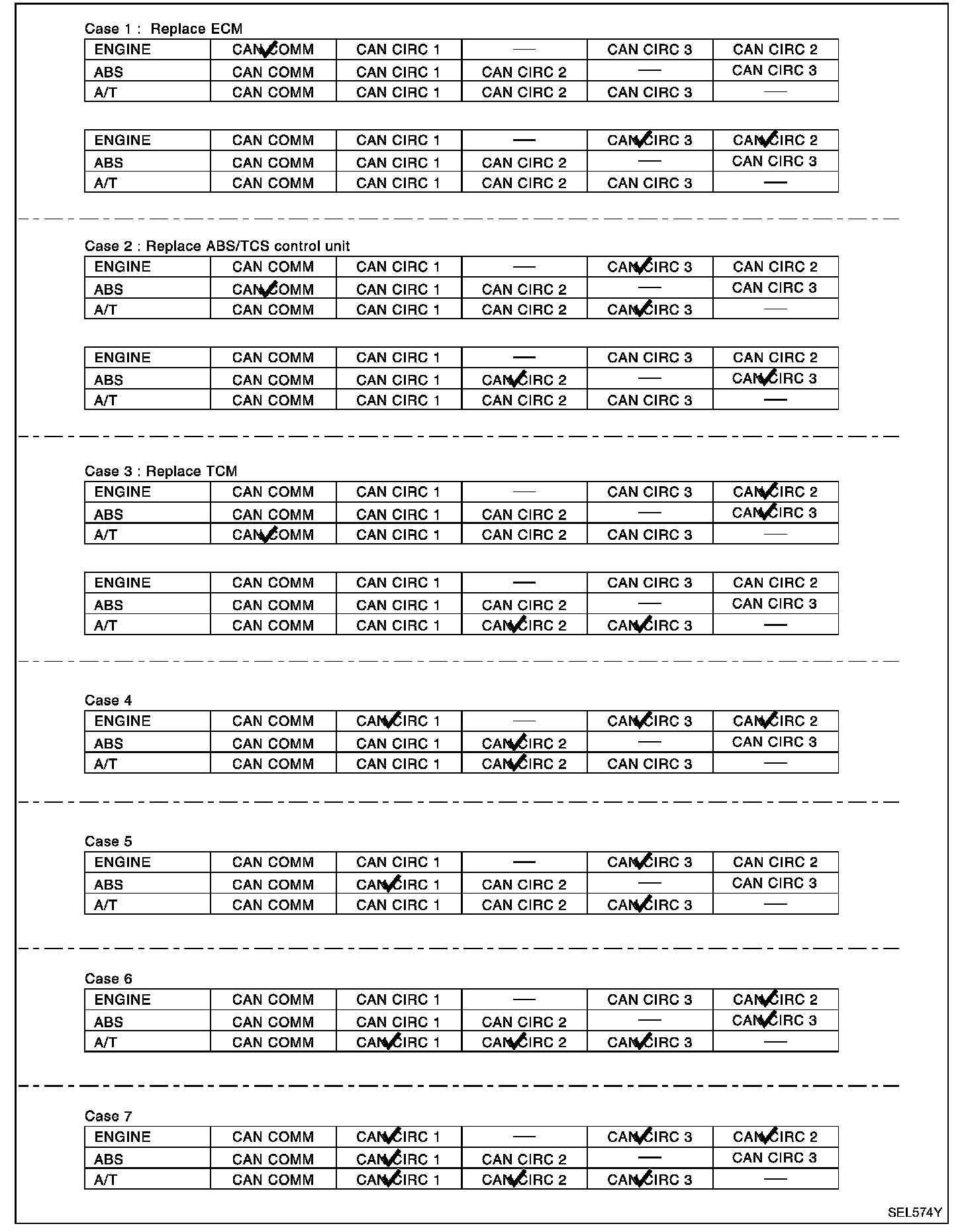

Check Sheet Results (Example) / For TCS Models:

Proceed trouble diagnosis according to the check sheet results (example).

Case 1: Replace ECM.
Case 2: Replace ABS/TCS control unit.
Case 3: Replace TCM.
Case 4: Check ECM Circuit. Refer to "ECM CIRCUIT CHECK".
...ECM Circuit Check

Case 5: Check ABS/TCS control unit Circuit. Refer to "ABS/TCS CONTROL UNIT CIRCUIT CHECK".
...ABS/TCS Control Unit Circuit Check

Case 6: Check TCM Circuit. Refer to "TCM CIRCUIT CHECK".
...TCM Circuit Check

Case 7: Check CAN communication Circuit. Refer to "CAN COMMUNICATION CIRCUIT CHECK".
...CAN Communication Circuit Check
