Switch Monitor Procedure

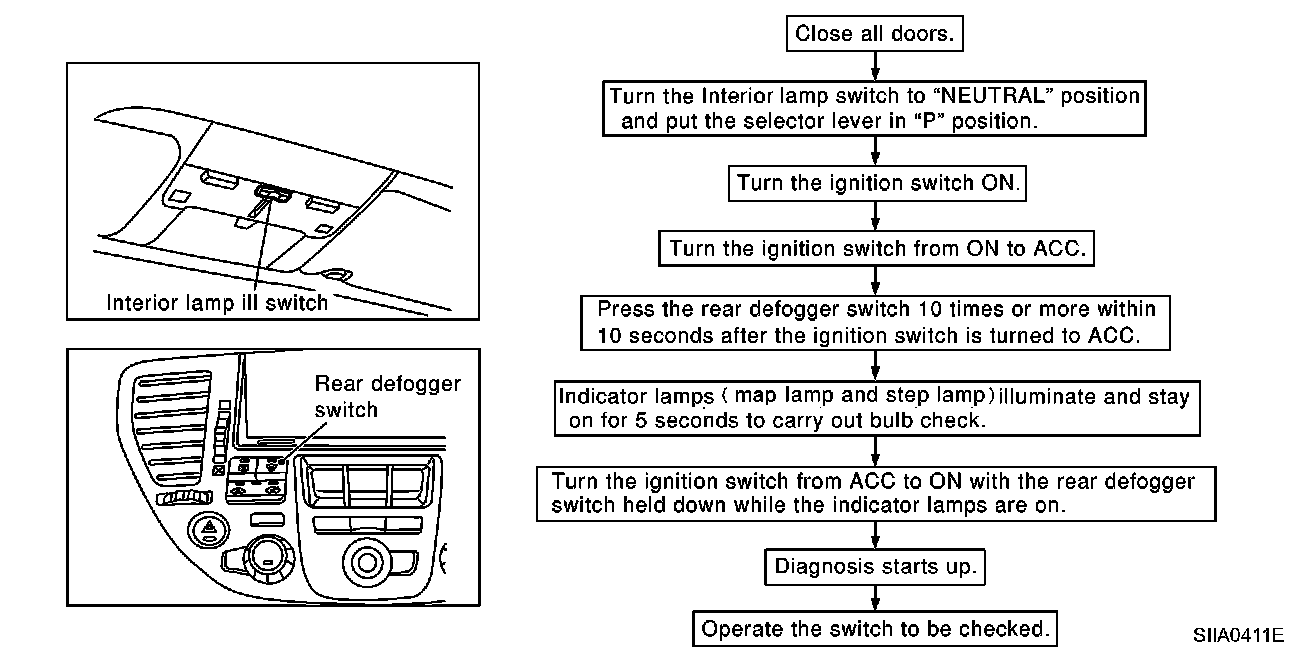

How To Perform Switch Monitor:




How To Perform Switch Monitor




Description
In this mode, when BCM detects the input signal from a switch in IVMS as shown, the detection is indicated by the front map lamp and front step lamps with buzzer.

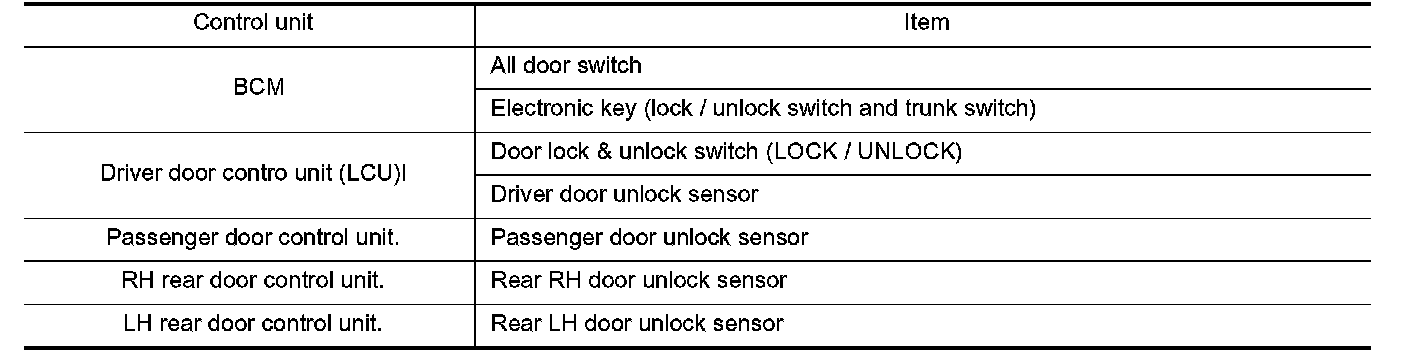

Switch Monitor Item
- The status of the switch (except the ignition switch, interior lamp switch, and map lamp switch) as input to each control unit can be monitored.

Cancel Of Switch Monitor
- Turn ignition switch OFF.
- Drive the vehicle more than 7 km/h (4 MPH).
