Active Test
Operation Procedure 1.

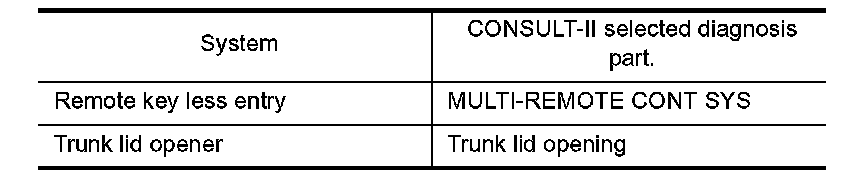

Select the desired part to be diagnosed on "SELECT TEST ITEM" screen.
2.
Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
3.
Touch the item to be tested, and check the operation.
4.
During the operation check, touching "OFF" deactivates the operation.

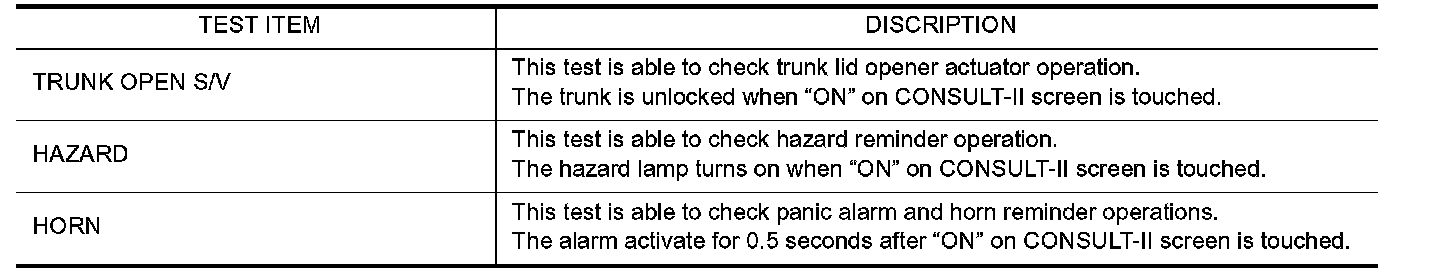

Remote Keyless Entry Test Item:

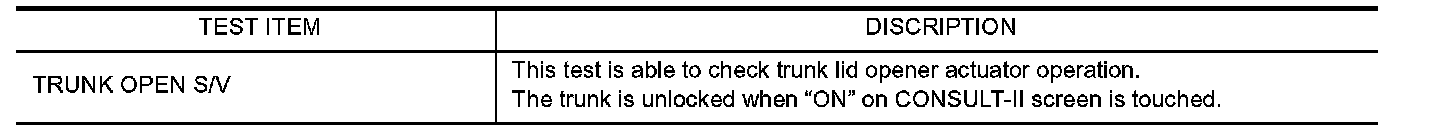

Remote Keyless Entry Test ItemTrunk Lid Opener Test Item:
Trunk Lid Opener Test Item
