Data Monitor
Operation procedure1. Touch "AUTO DRIVE POSITIONER" on the "SELECT TEST ITEM" screen.
2. Touch "DATA MONITOR" on the "SELECT DIAG MODE" screen.

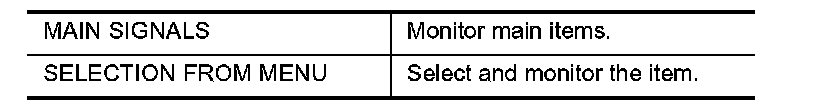

3. Touch either "MAIN SIGNALS" or "SELECTION FROM MENU" on the "DATA MONITOR" screen.
4. Touch "START".
5. If "SELECTION FROM MENU" is selected, touch the desired monitor item. If "MAIN SIGNALS" is selected, main items are monitored.
6. During monitoring, touching "COPY" can start recording the monitor item status.

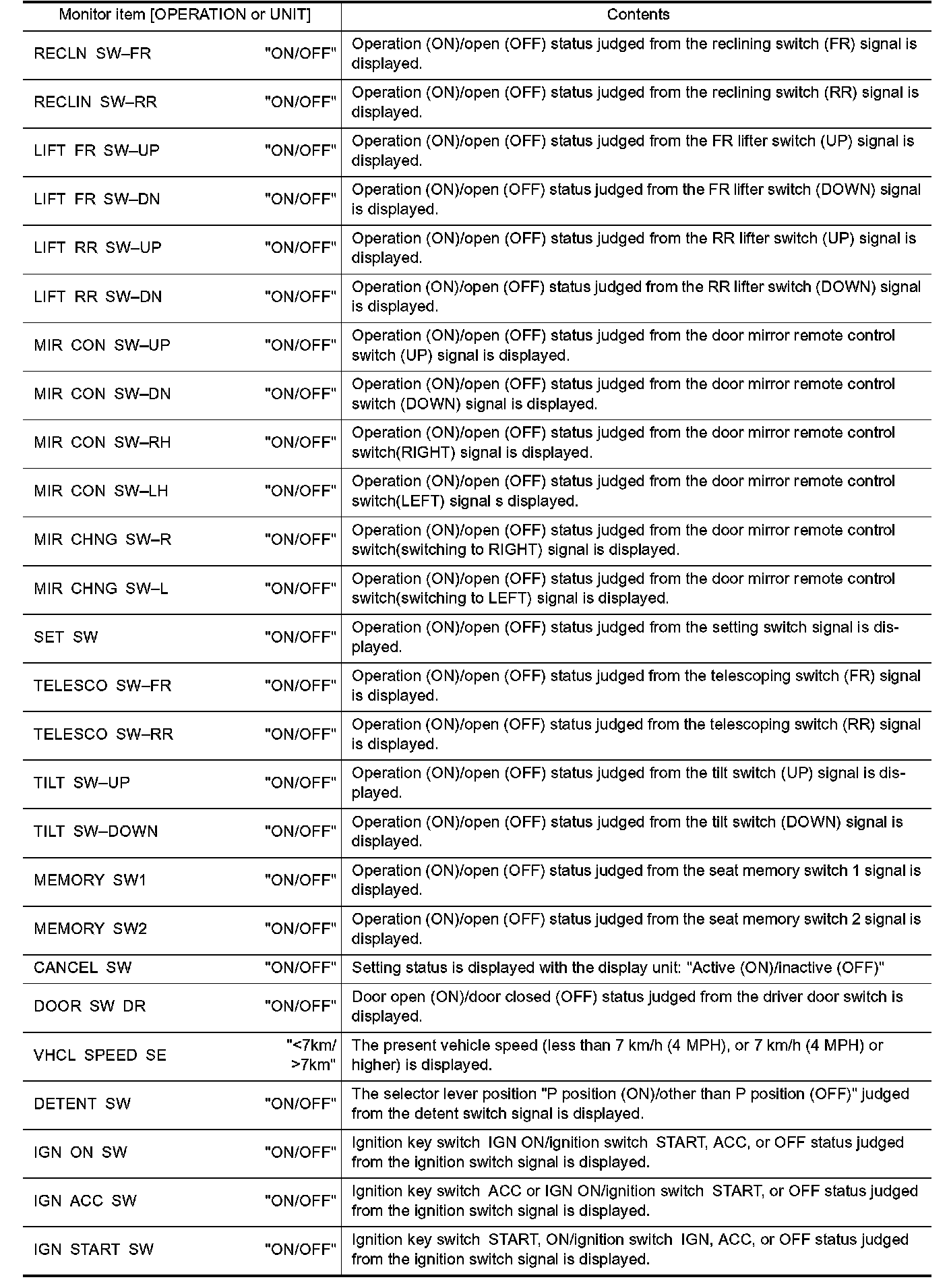

Display Item List Part 1:
Display Item List Part 2:

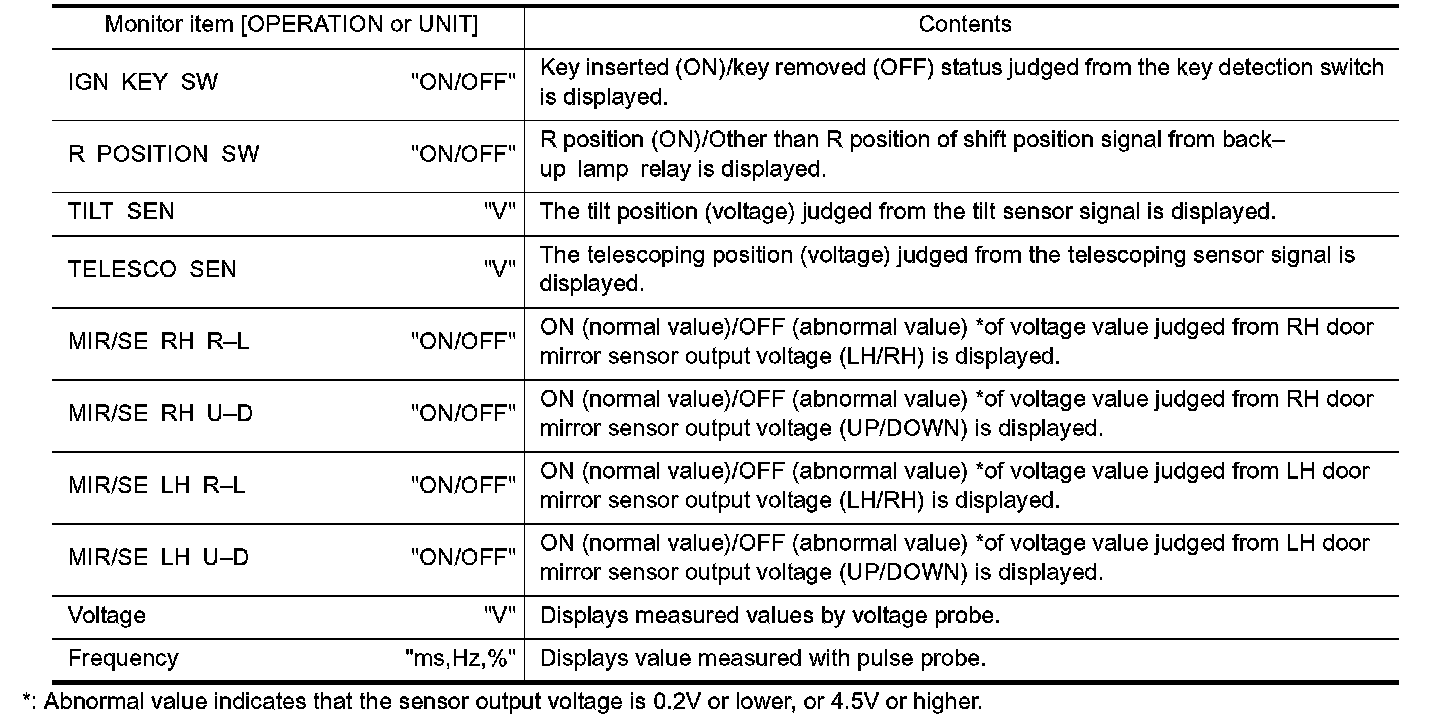

Display Item List Part 3:
Display item list
