Active Test

ACTIVE TEST

CAUTION: Do not perform the active test while driving.
Active test cannot be started while ICC system warning indicator illuminates.


1. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector and start engine.
3. Touch "START", "ICC", and "ACTIVE TEST" on CONSULT-II display in turn.
4. Touch necessary test item.
5. Touch "START".
6. Active test screen will be shown.

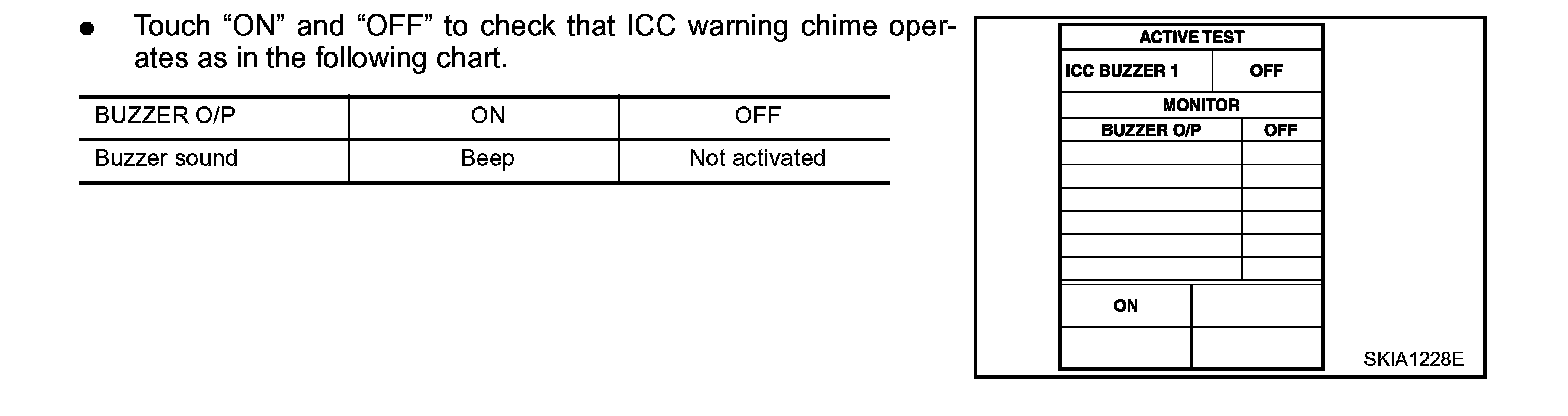

ICC Buzzer 1:

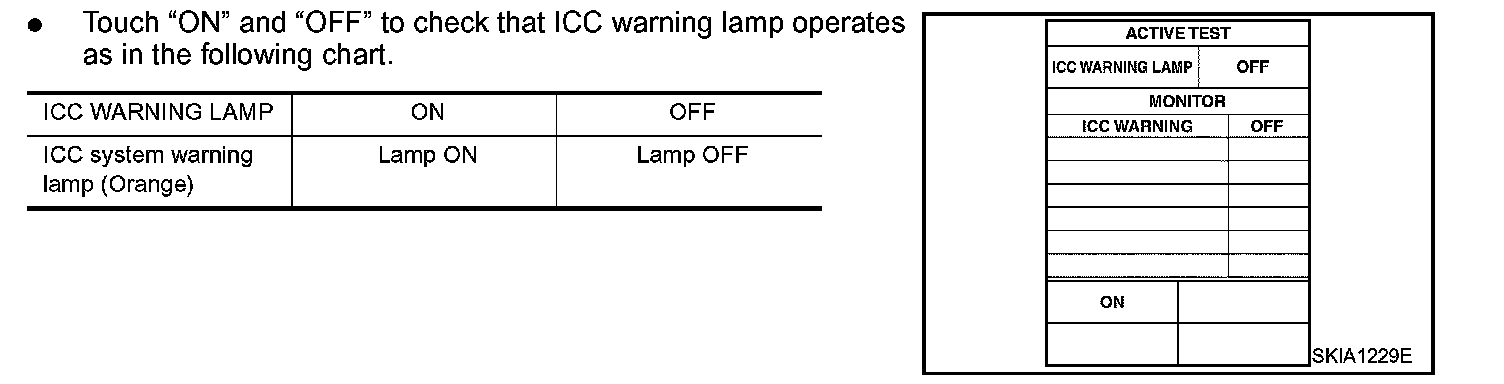

ICC Warning Lamp:

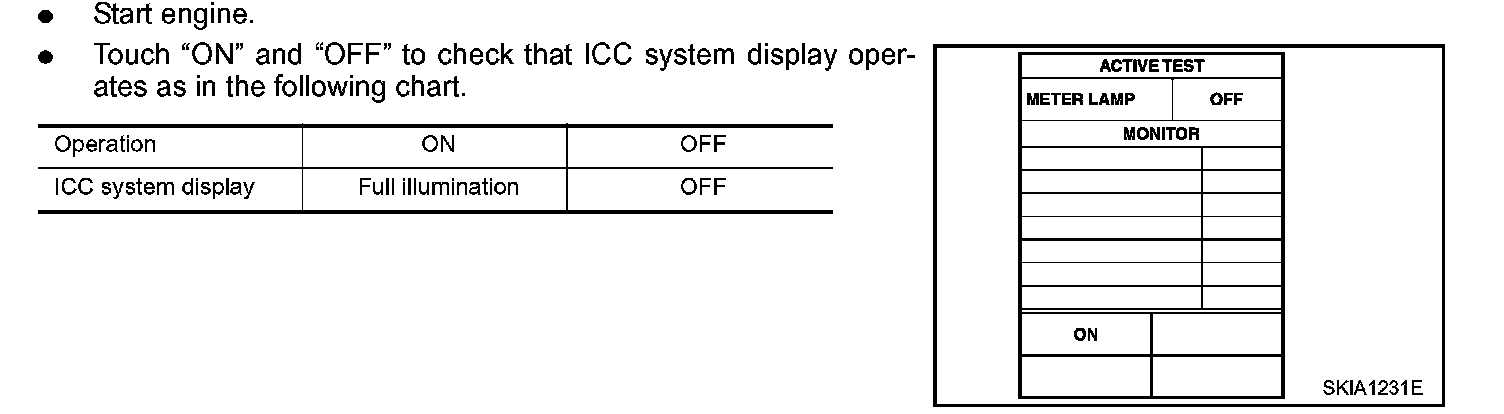

Meter Lamp:

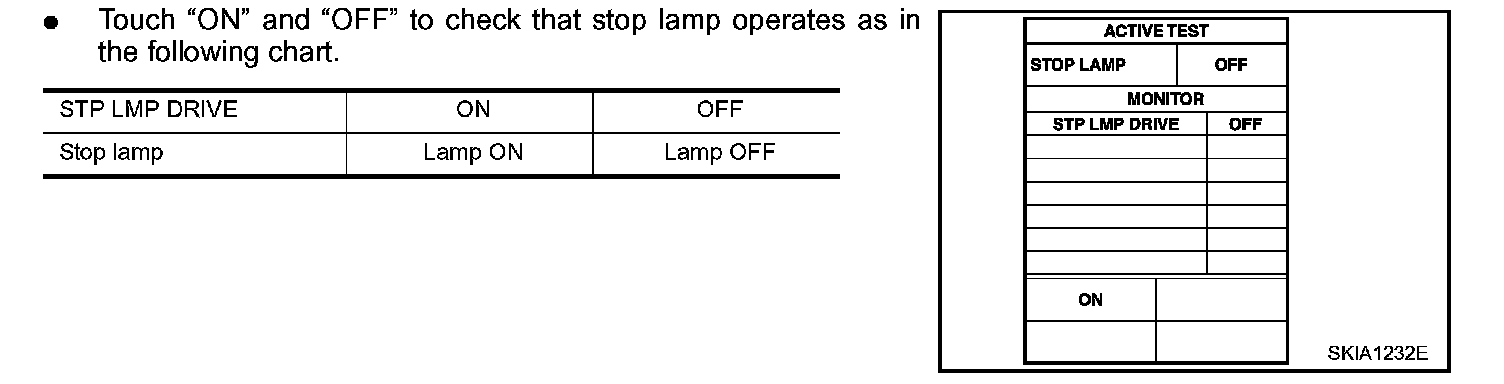

Stop Lamp:

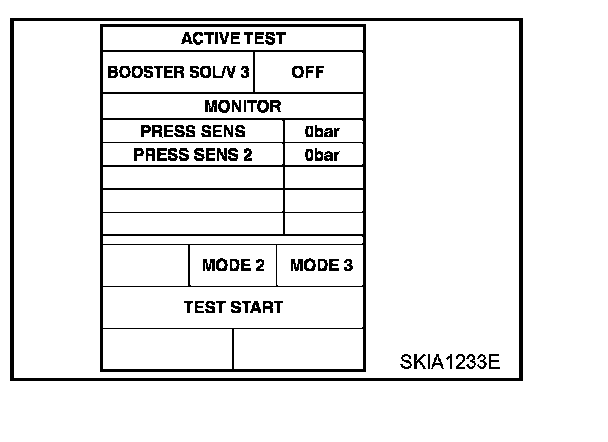

BOOSTER SOL/V 3:

BOOSTER SOL/V 3

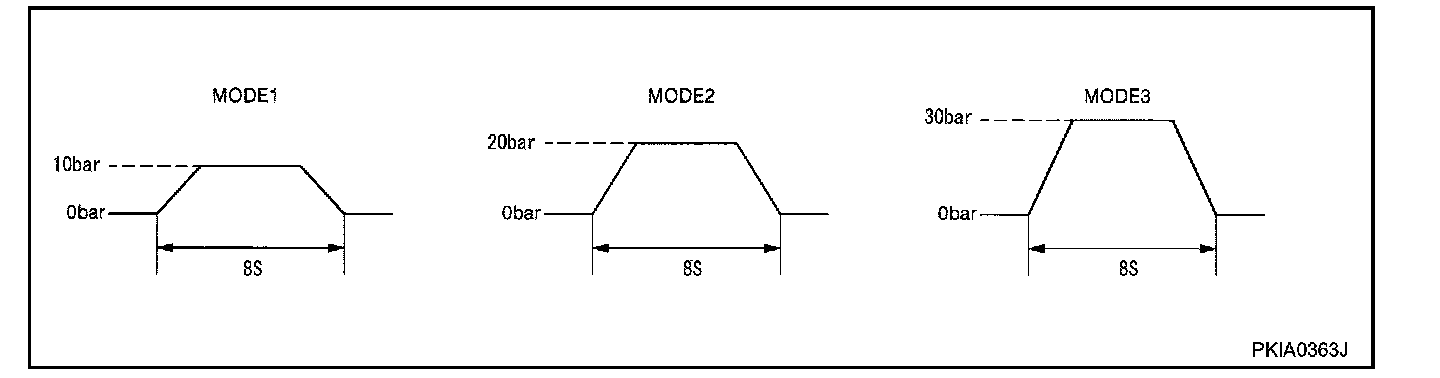

Touch any of "MODE 1", "MODE 2", "MODE 3" to check that the operation condition is caused by operating monitor and brake pedal.

"START" is displayed 10 seconds after operation start. (Active test is completed.)
