DI - Connector Views

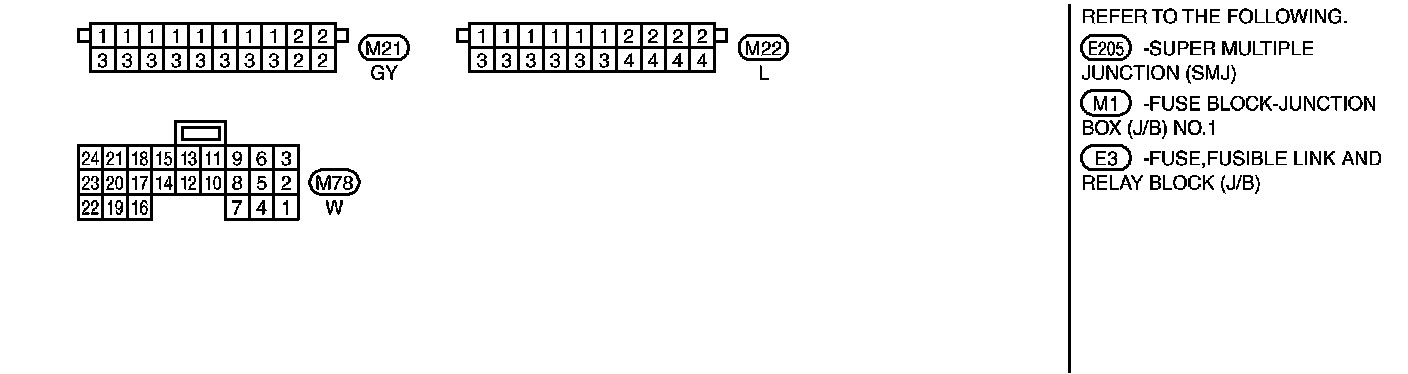

DI-INF/D-01 Connector Views:

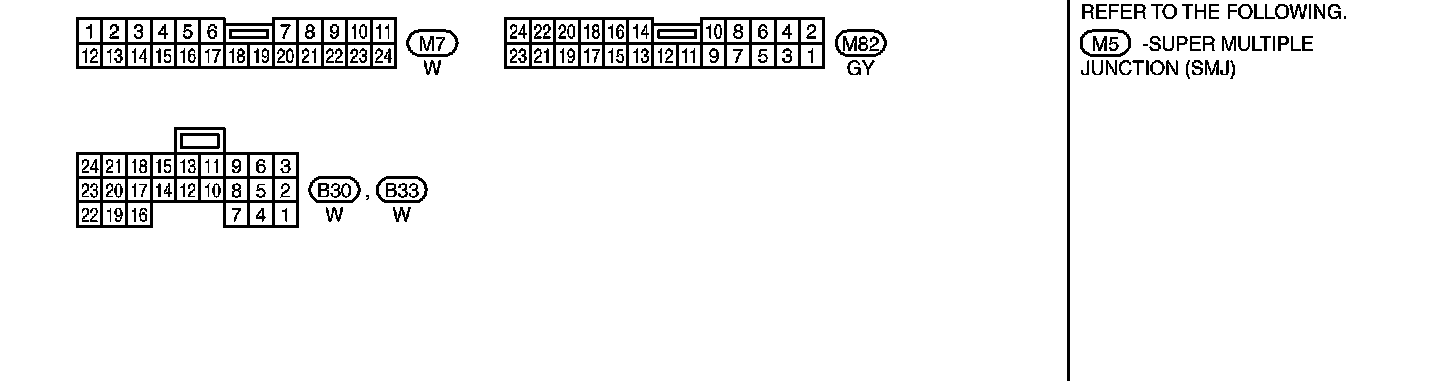

DI-INF/D-02 Connector Views:

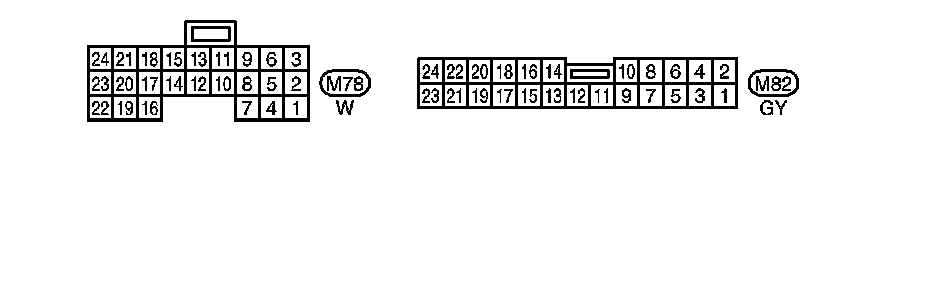

DI-INF/D-03 Connector Views:

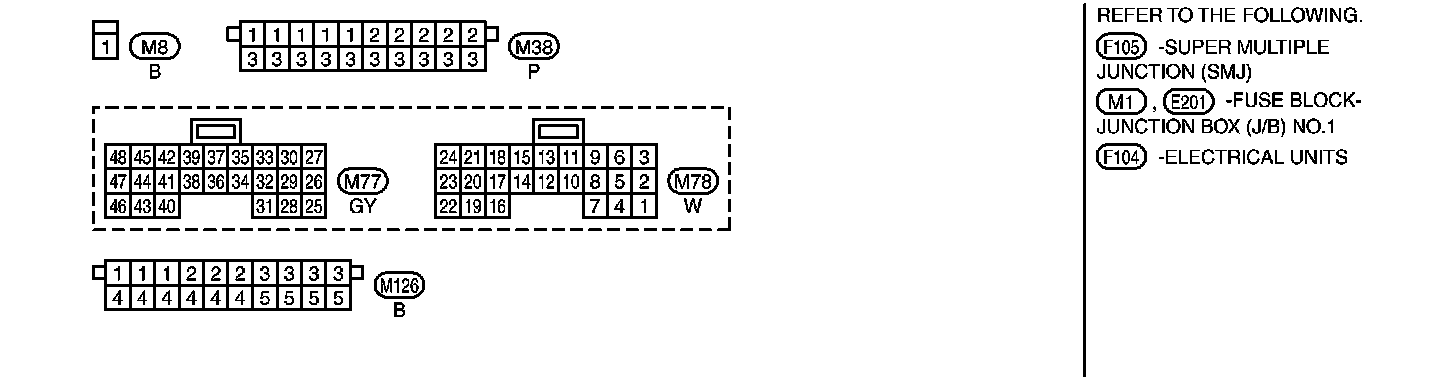

DI-INF/D-04 Connector Views:

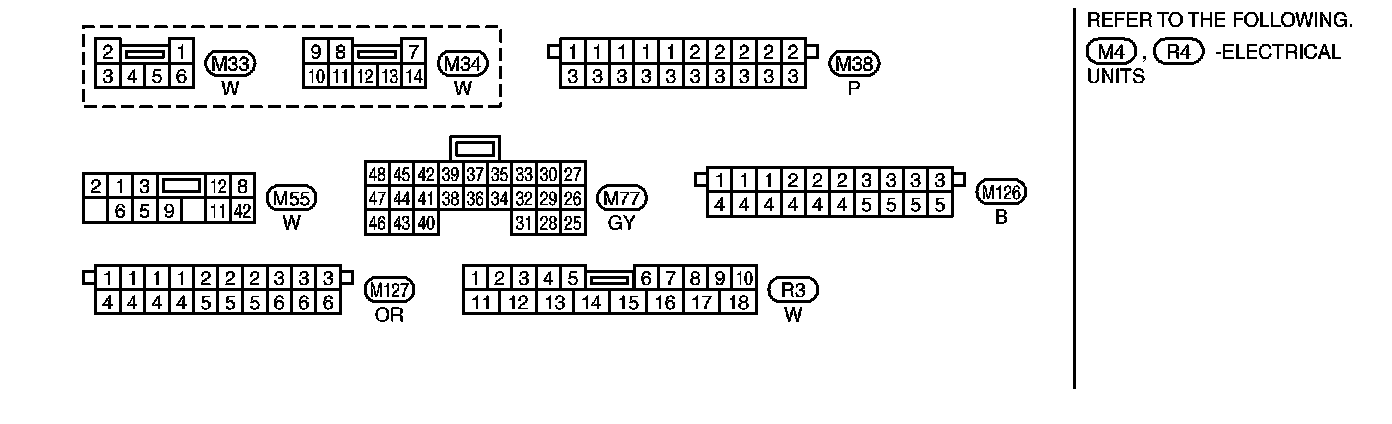

DI-INF/D-05 Connector Views:

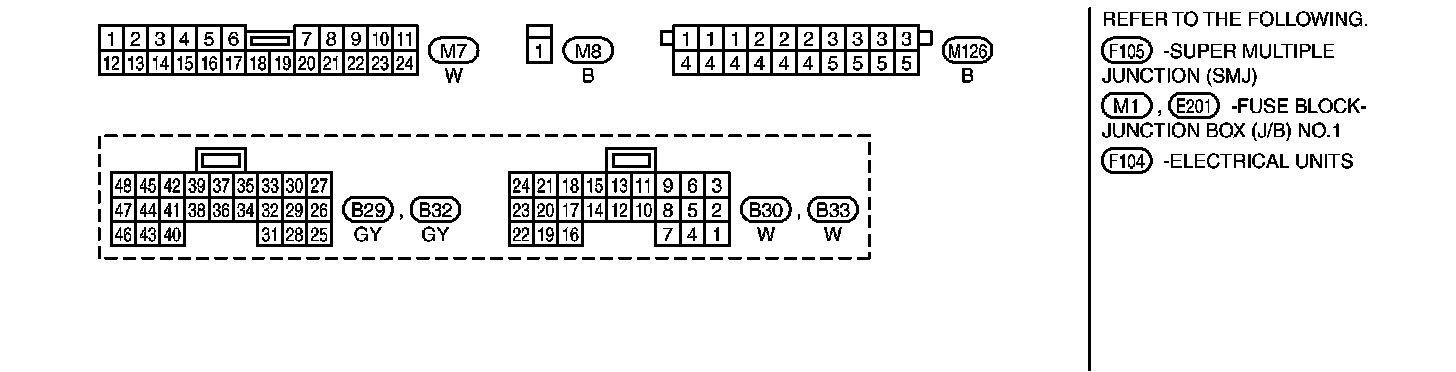

DI-INF/D-06 Connector Views:

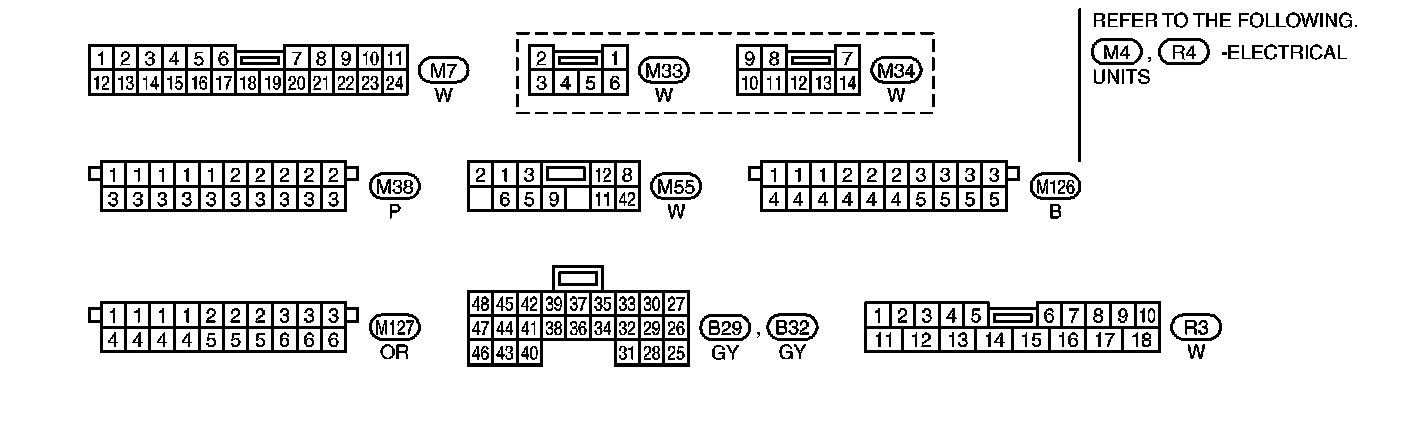

DI-INF/D-07 Connector Views:

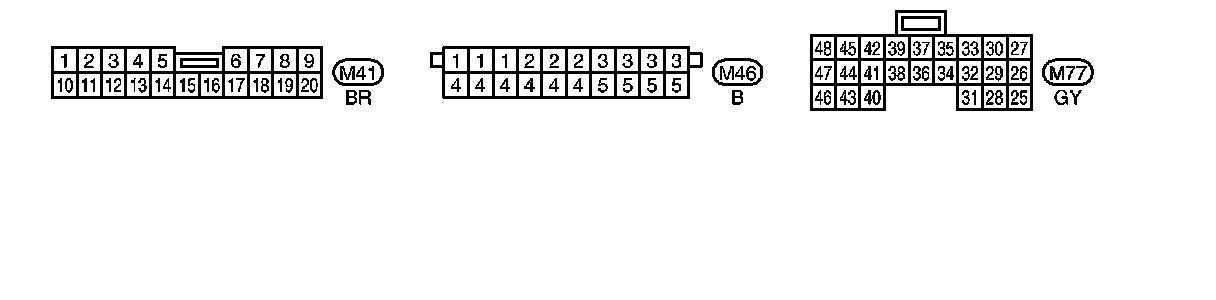

DI-INF/D-08 Connector Views:



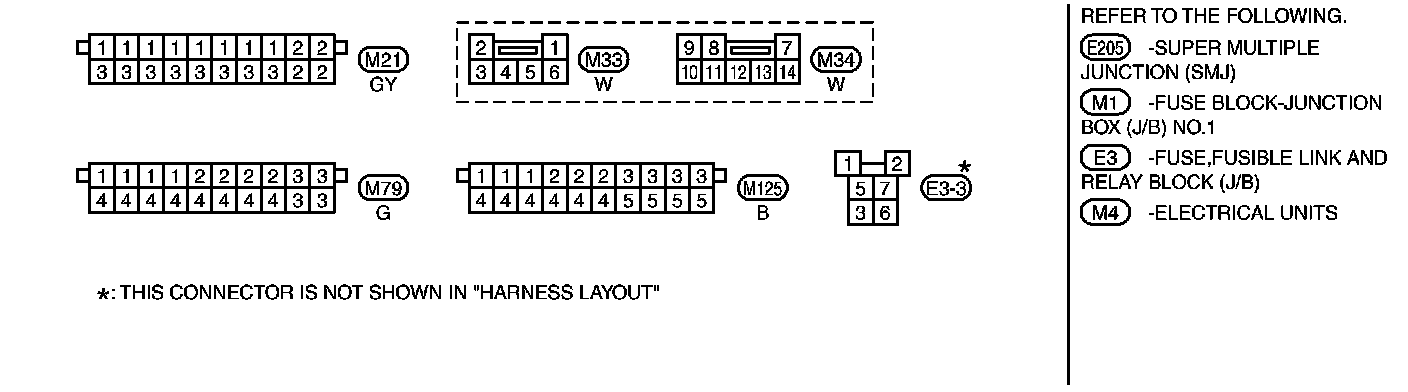

DI-INF/D-09 Connector Views:



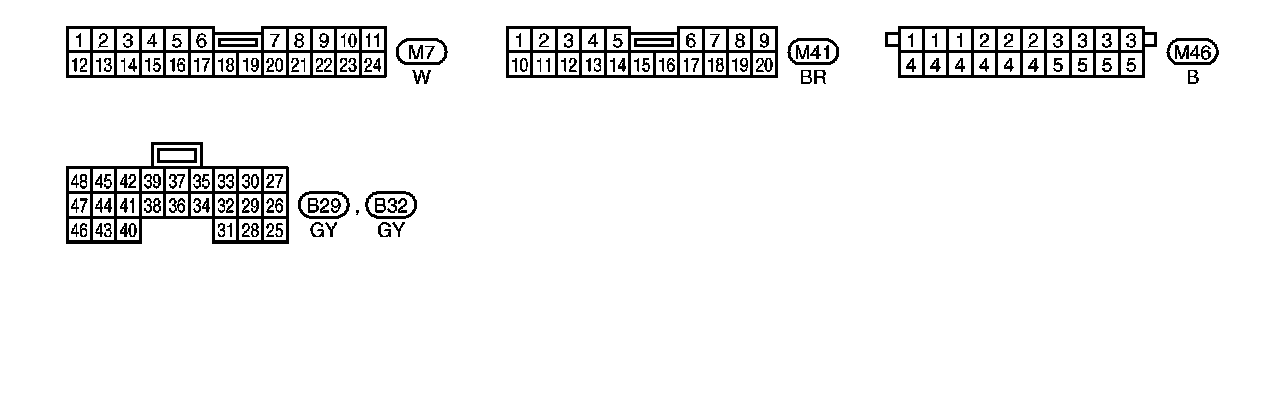

DI-INF/D-10 Connector Views:



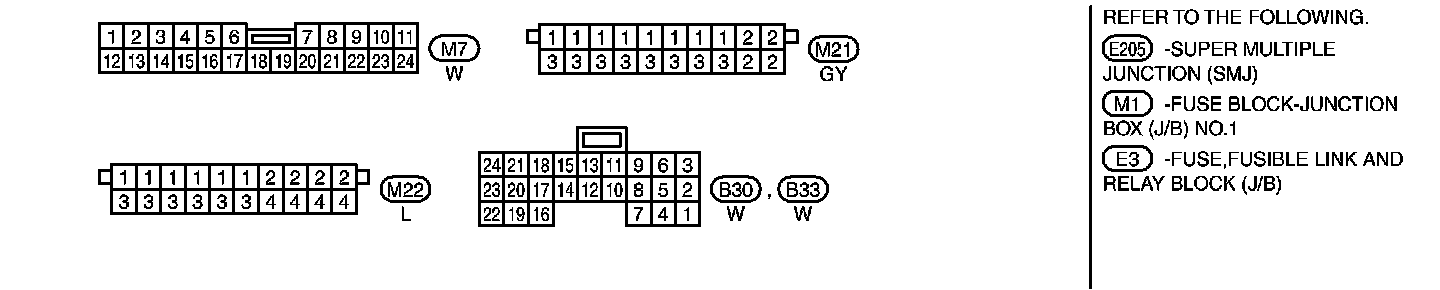

DI-INF/D-11 Connector Views:



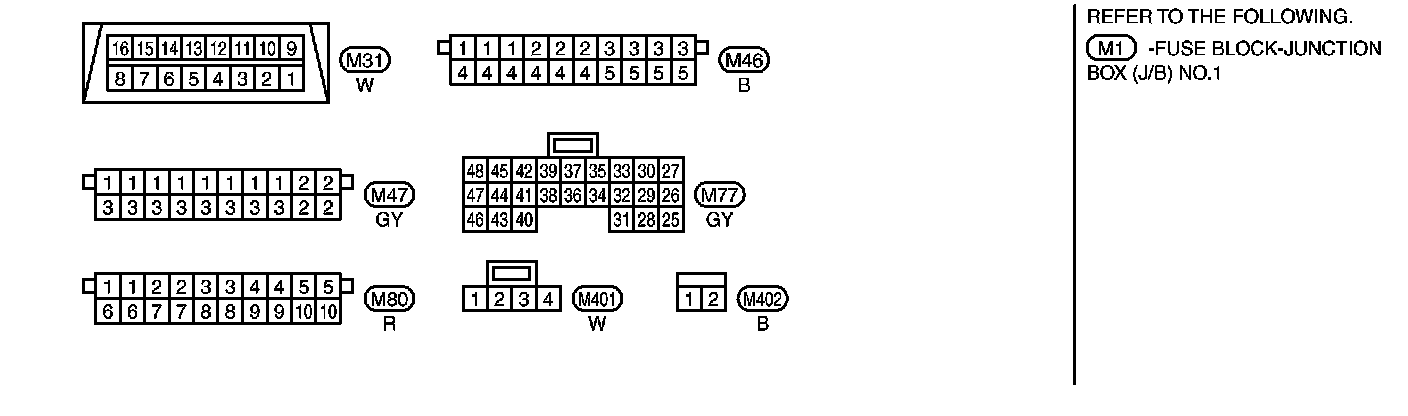

DI-INF/D-12:



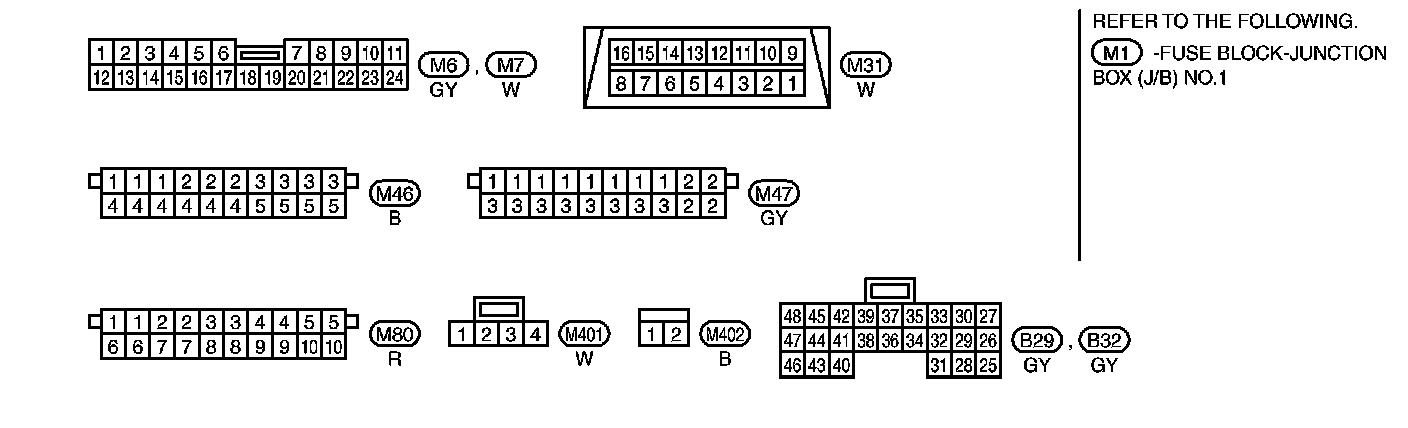

DI-INF/D-13 Connector Views:



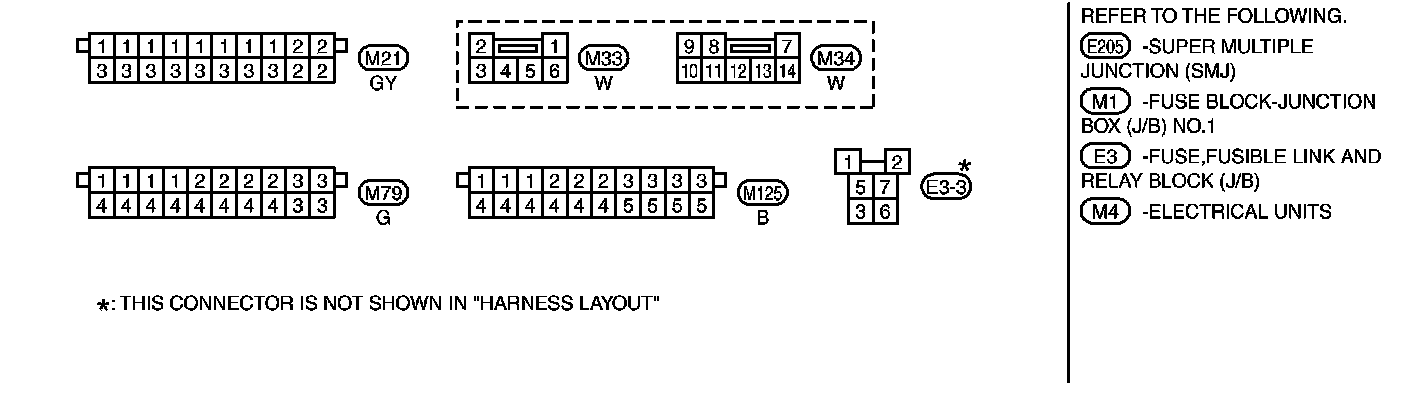

DI-INF/D-14 Connector Views:



DI-INF/D-15 Connector Views:



DI-INF/D-16 Connector Views:
