Component Tests and General Diagnostics
Measure voltage between each terminal and body ground by following AUTO AMP. INSPECTION TABLE.

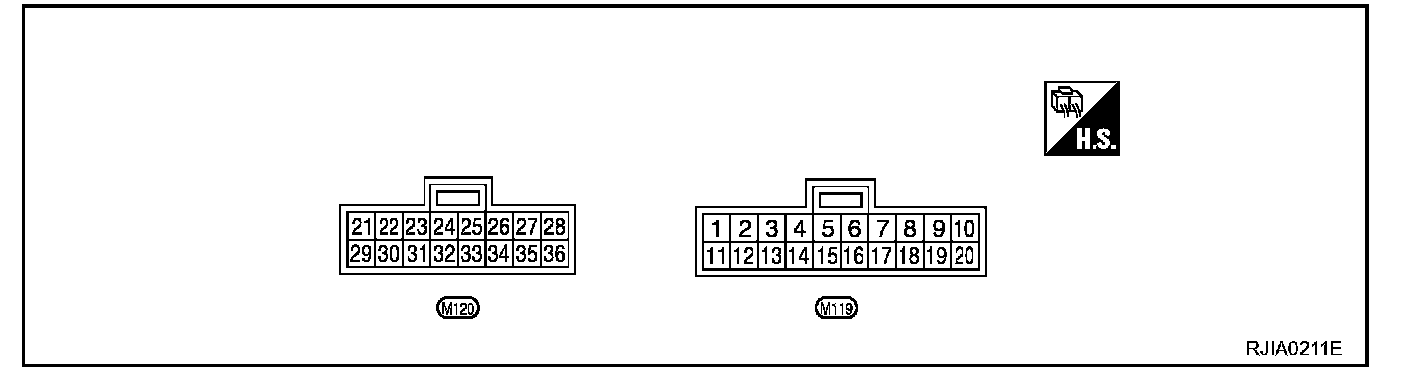

Pin Connector Terminal Layout:
Terminal No. 1 - 17:
Terminal No. 18 - 35:

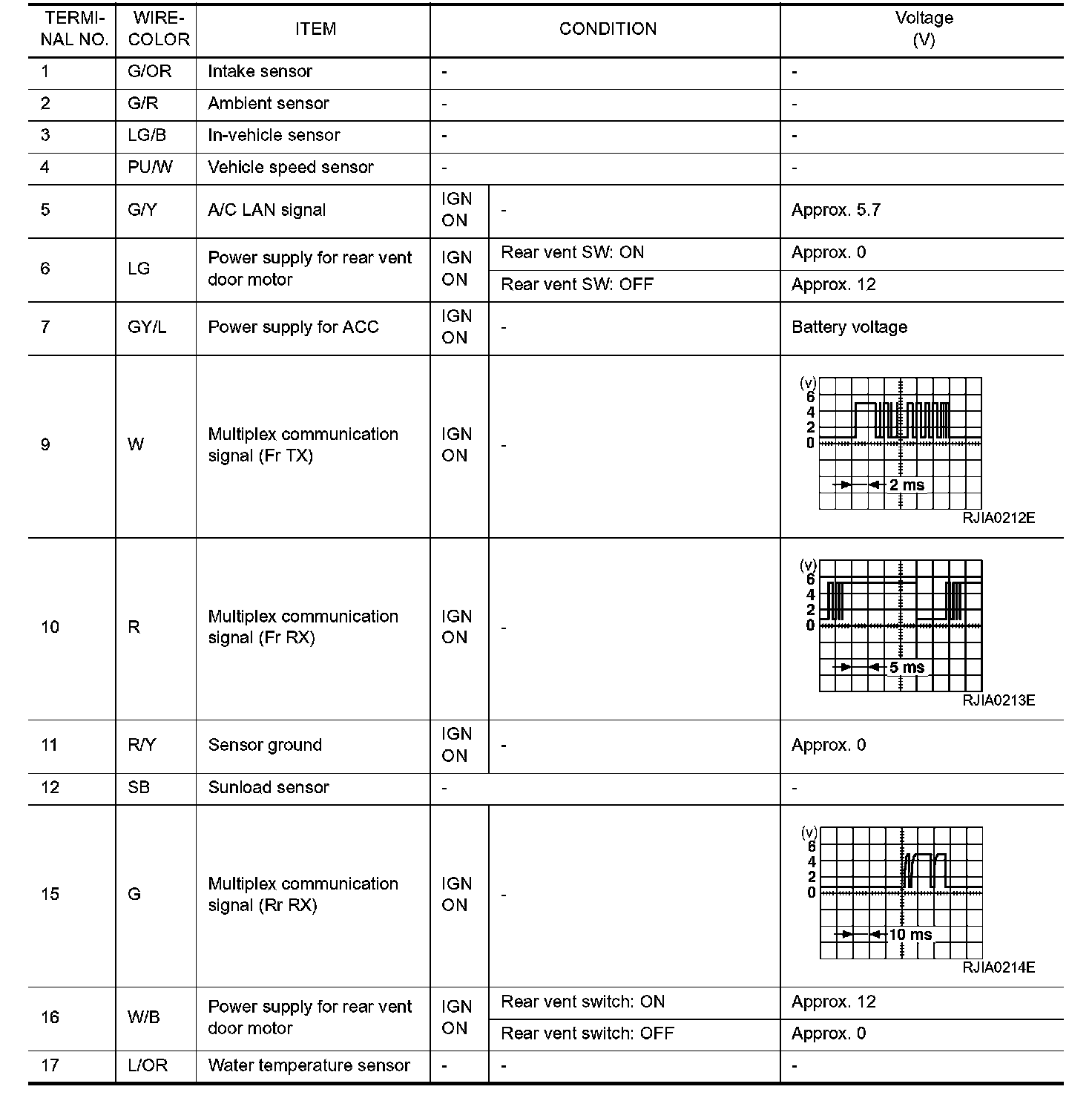

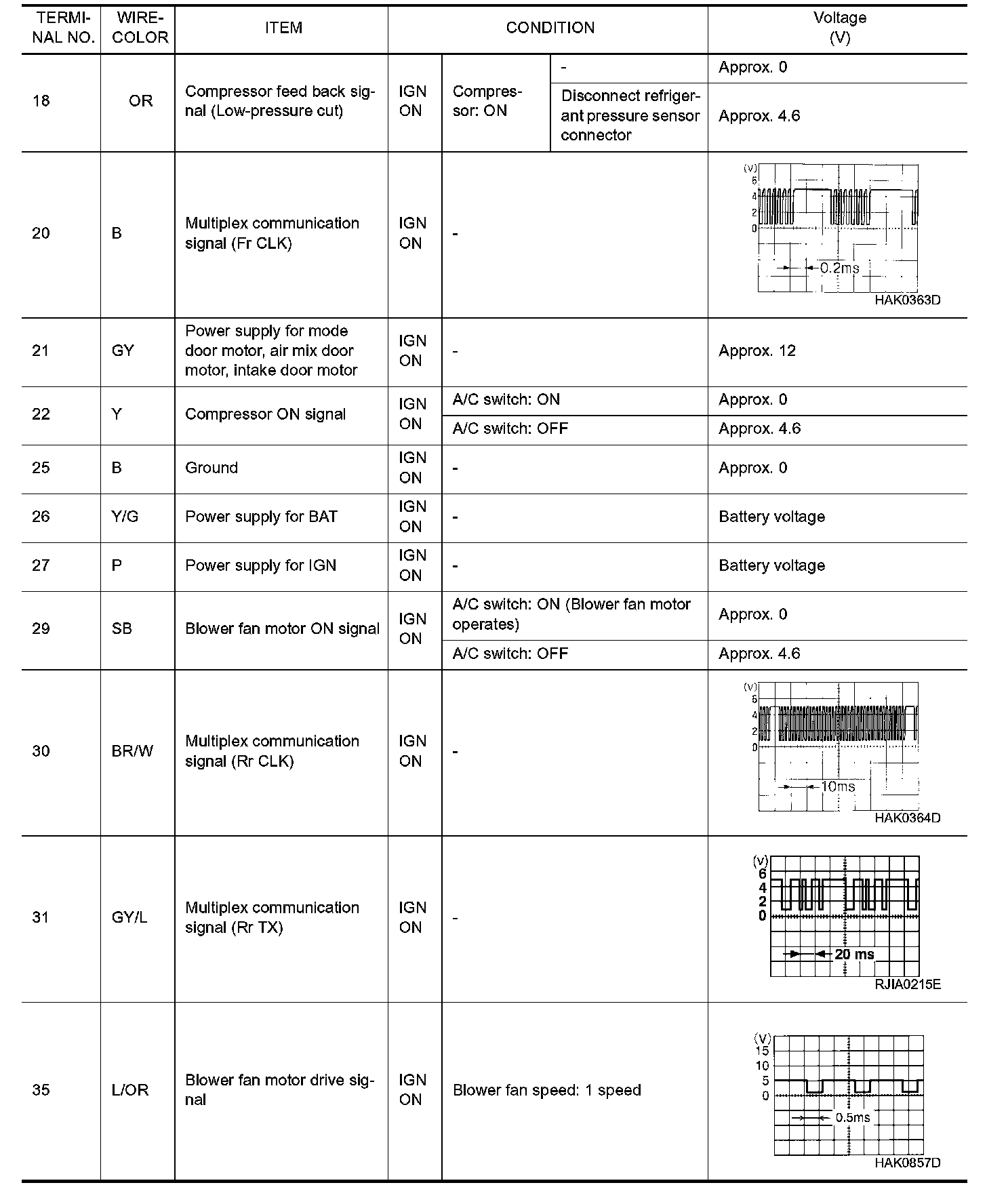

AUTO AMP. INSPECTION TABLE
