Headlamp Alignment Control Module: Service and Repair
Removal and Installation 1.
Remove the lower instrument panel (driver side). Refer to "Removal and Installation" in "INSTRUMENT PANEL (IP)".
2.

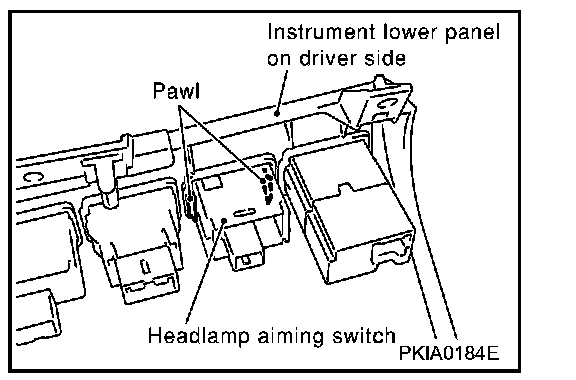

Press the headlamp aiming switch fixing tabs and remove the unit from the instrument lower panel (driver side).
